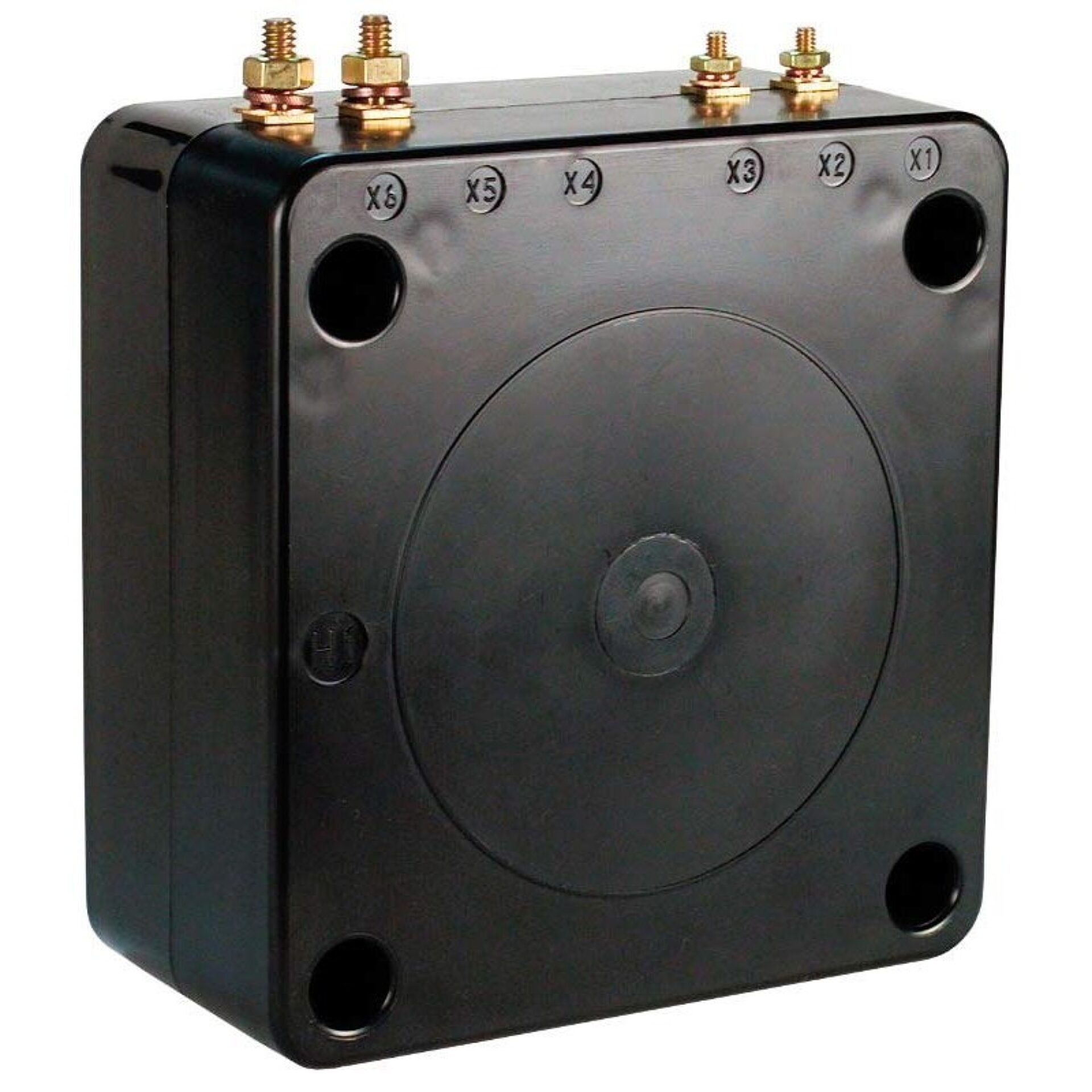

Model 81X Current Transformer

Model 81X Current Transformer

FREQUENCY: 50-400 Hz. INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave. CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.33 at 30oC. amb., 1.0 at 55oC. amb. Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut, for ratios up to 25:5 and 1/4-20 studs for higher ratios. Order mounting bracket kit No. 0221B00259 Auxiliary Transformer Approximate weight 18 lbs.
Would you like to customize this product? Contact us today to see if we can create the custom option that fits your needs.
