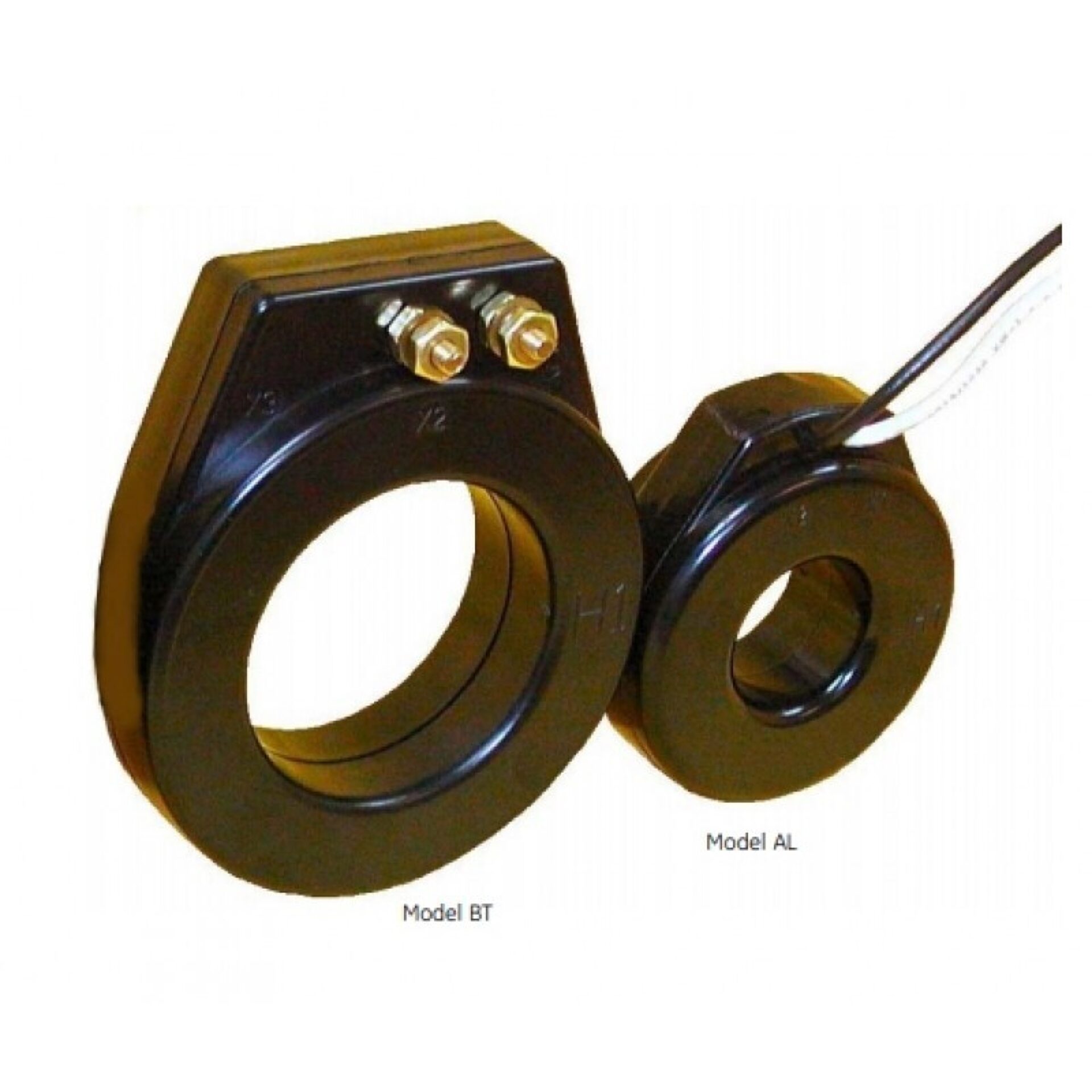

Model A Current Transformer
Introducing the Model A Current Transformer, a high-quality and reliable solution, manufactured by Spectrum Industries. This innovative device is engineered to provide precise current measurement and monitoring, making it an essential component for electrical systems that demand accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model A Current Transformer offers exceptional performance and ease of integration.
Overview
Introducing the Model A Current Transformer, a high-quality and reliable solution, manufactured by Spectrum Industries. This innovative device is engineered to provide precise current measurement and monitoring, making it an essential component for electrical systems that demand accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model A Current Transformer offers exceptional performance and ease of integration.
Manufactured by Spectrum Industries, a trusted name in electrical instrumentation, this current transformer is built to meet rigorous standards and deliver consistent results. Its robust construction ensures long-term reliability in demanding environments, while its compact design allows for flexible installation options. The Model A is designed to accurately step down high current levels to manageable, measurable values, enabling effective system monitoring and protection.
a global leader in electrical and electronic manufacturing, this product benefits from advanced engineering and quality assurance processes. The collaboration between and Spectrum Industries results in a device that combines innovative technology with dependable craftsmanship. Whether upgrading existing systems or deploying new installations, the Model A Current Transformer is a dependable choice for professionals seeking precision and durability in their electrical measurements.
With its proven performance and reputable manufacturing pedigree, the Model A Current Transformer from Spectrum Industries is an excellent investment for ensuring the safety, efficiency, and reliability of your electrical infrastructure.
Request a Quote for Model A Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.5 lbs
- Application
- Energy Management
- Standards
- UL, CSA
- Rating Factor
- 1.0 at 30°C ambient
- Window Diameter
- 1.05 in
- Terminal Options
- Fast-on 1/4in quick-connect (F), 8-32 stud terminals (T), or 2in UL 1015 105C CSA-approved #16 AWG flexible leads (L)
- Insulation Level
- 0.6 kV rated, BIL 10 kV full wave
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 60 | 5 | 60:5 |
| 75 | 5 | 75:5 |
| 80 | 5 | 80:5 |
| 100 | 5 | 100:5 |
| 120 | 5 | 120:5 |
| 125 | 5 | 125:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
