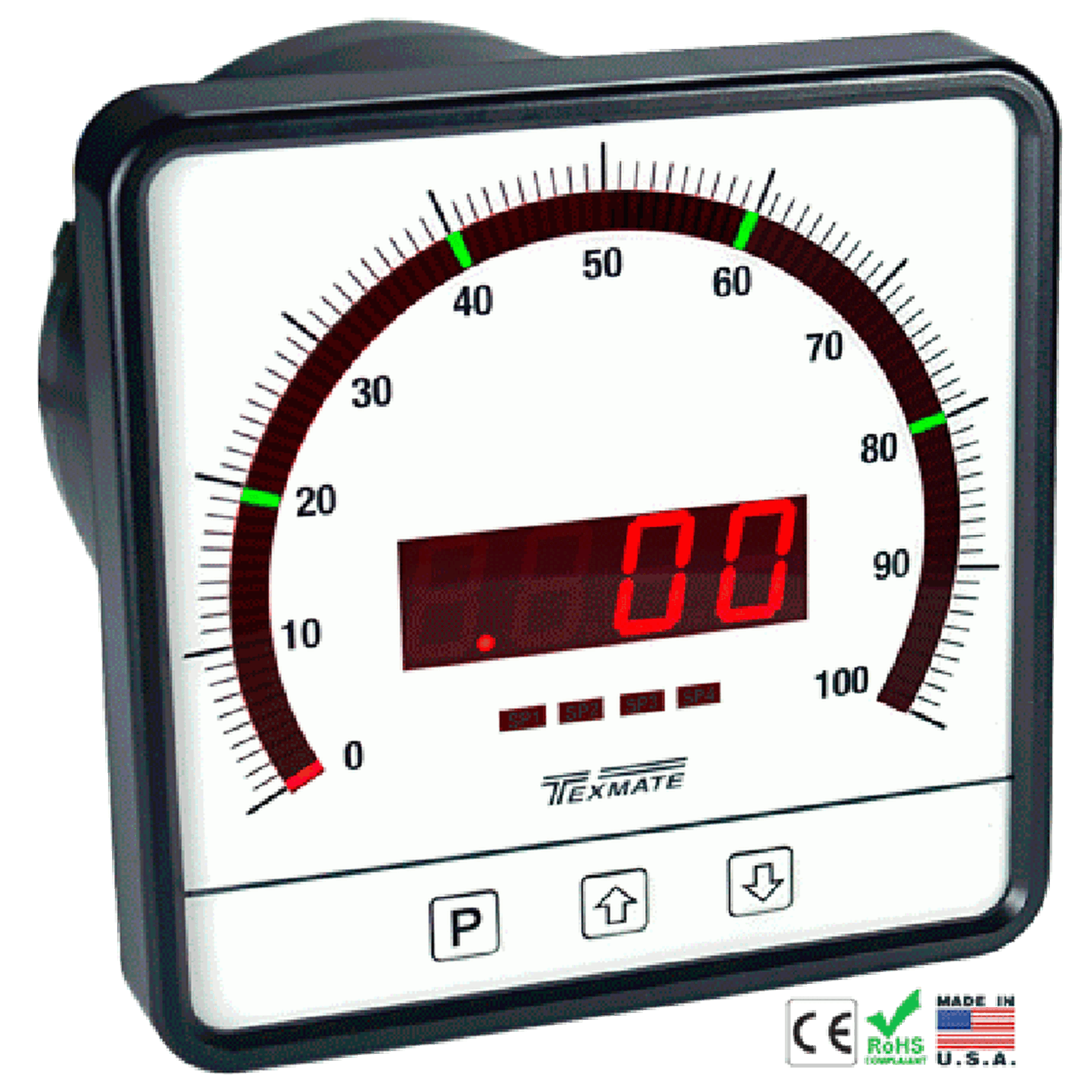

Smart switchboard style 101 segment Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications.
Specify Accessories Extra Screw Terminal Connector, 2 Pin Power Plug Extra Screw Terminal Connector, 2 Pin Plug Extra Screw Terminal Connector, 4 Pin Plug Extra Screw Terminal Connector, 3 Pin Plug Extra Screw Terminal Connector, 5 Pin Plug
Input Options AC-Volts True RMS, 200/600V AC AC-Volts True RMS, 200mV/2V/20V AC-Amps True RMS, 1 Amp AC AC-Amps True RMS, 5 Amp AC DC-Volts, 2/20/200V/Custom w/24V DC Exc DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc DC-Milliamp, 2/20/200mA DC w/24V DC Exc DC-Amps, 5A DC DC-Amps, 1A DC Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom 3 wire Potentiometer, 1k? min Linear Potentiometer, 1k? min Universal Direct Pressure (Absolute or Differential/Gage). Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire ressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire Process Loop, 4-20mA Process Loop, 4-20mA with 24VDC Exc Process Input, 1-5V DC with Offset, 24V Exc Resistance 2k?
Relay Outputs One 10A Form C Relay, Isolated Two 9A Form C Relays, Isolated Two 9A Form C & Two 4A Form A Relays, Non-isolated One 9A Form C & Two 4A Form A Relays, Non-isolated One 9A Form C & One 4A Form A Relays, Isolated Two 9A Form C & One 4A Form A Relays, Isolated One 9A Form C & two 4A Form A relays. Isolated One 5A Form A Relay, Isolated Two 5A Form A Relays, Isolated Three 5A Form A Relays, Isolated Four 5A Form A Relays, Isolated One 300V DC Solid State Relay (SSR) 210mA Two 300V DC Solid State Relays (SSR) 210mA Three 300V DC Solid State Relays (SSR) 210mA Four 300V DC Solid State Relays (SSR) 210mA
Analog Outputs Isolated 16 bit, Current output 4-20mA Isolated 16 bit voltage output, 0-10V DC
