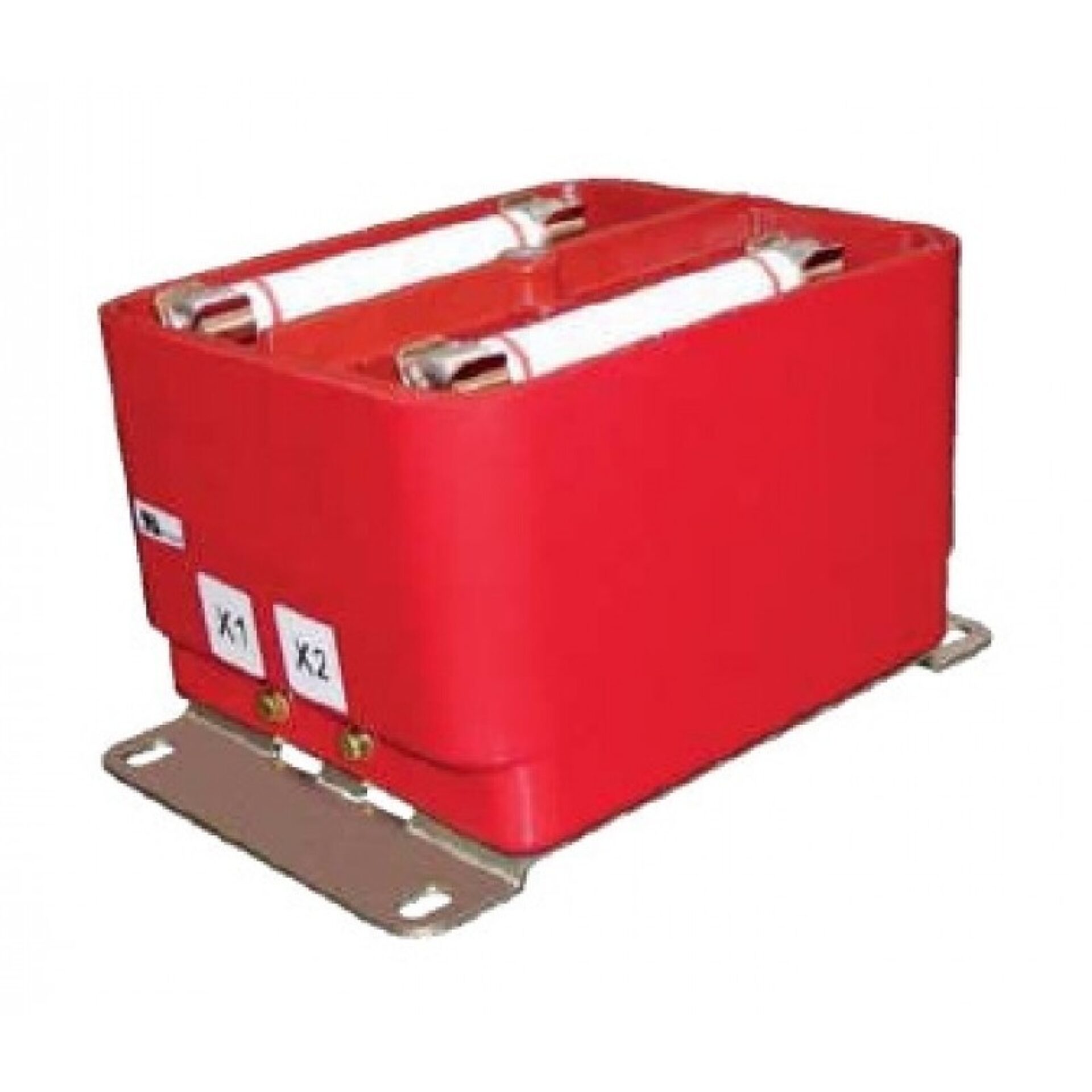

Model CPT3-60-0.5 Medium Voltage Control Power Transformer - 0.5 kVA - 60 kV BIL
Introducing the Model CPT3-60-05 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 0.5 kVA and a voltage rating of 60 kV BIL, it is specifically engineered to provide robust control power in medium voltage applications, ensuring seamless operation and optimal performance.
Overview
Introducing the Model CPT3-60-05 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 0.5 kVA and a voltage rating of 60 kV BIL, it is specifically engineered to provide robust control power in medium voltage applications, ensuring seamless operation and optimal performance.
Produced by Spectrum Industries, this transformer combines advanced engineering with durable construction to deliver consistent and dependable service in various industrial and utility environments. Its compact design allows for easy installation and integration into existing electrical infrastructure, making it an ideal choice for control circuits, protective relays, and instrumentation systems. The Model CPT3-60-05 is built to withstand harsh conditions while maintaining precise voltage regulation, thereby safeguarding sensitive equipment and enhancing overall system stability.
This product reflects ’s commitment to quality and innovation, offering users a trusted component that supports efficient energy management and operational safety. Whether used in new installations or as a replacement part, the Spectrum Industries Model CPT3-60-05 Medium Voltage Control Power Transformer provides peace of mind through its proven performance and adherence to industry standards.
Request a Quote for Model CPT3-60-0.5 Medium Voltage Control Power Transformer - 0.5 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 22 lbs
- Mounting
- Indoor
- Application
- Control Power
- Insulation Level
- 5 kV, 60 kV BIL full wave
- Terminals
- Primary and secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
- Mounting Base
- Plated steel mounting base is removable; can be mounted with base, with base rotated 90 degrees, or without a base.
- Construction
- Windings encapsulated in epoxy resin; assembly varnish coated; mounting base is steel.
- Optional Fuse Cover
- Clear molded fuse cover available, Part #1743C11804
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 2400 | 120 | 0.5 | 2.0E |
| 2400 | 120 | 0.5 | 2.0E |
| 2400 | 120 | 0.5 | 2.0E |
| 3300 | 110 | 0.45 | 1.0E |
| 3300 | 110 | 0.45 | 1.0E |
| 3300 | 110 | 0.45 | 1.0E |
| 4200 | 120 | 0.5 | 1.0E |
| 4200 | 120 | 0.5 | 1.0E |
| 4200 | 120 | 0.5 | 1.0E |
| 4800 | 120 | 0.45 | 1.0E |
| 4800 | 120 | 0.45 | 1.0E |
| 4800 | 120 | 0.45 | 1.0E |
