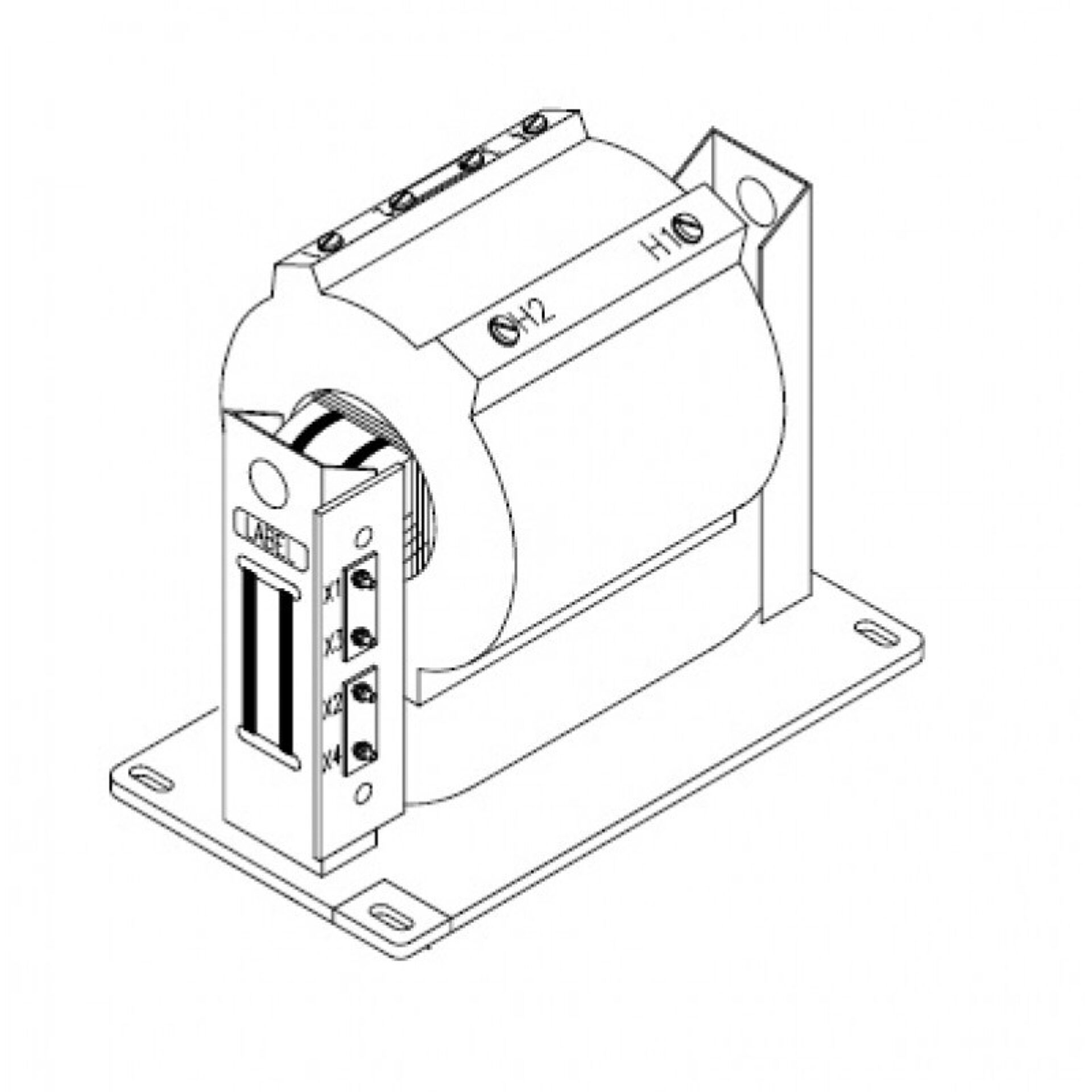

Model CPT3-60-10 Medium Voltage Control Power Transformer - 10 kVA - 60 kV BIL
Introducing the Model CPT3-60-10 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems. and distributed by Spectrum Industries, this transformer offers exceptional performance in controlling and distributing power within medium voltage applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, it is engineered to deliver consistent, stable power supply in various industrial and utility settings.
Overview
Introducing the Model CPT3-60-10 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems. and distributed by Spectrum Industries, this transformer offers exceptional performance in controlling and distributing power within medium voltage applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, it is engineered to deliver consistent, stable power supply in various industrial and utility settings.
The Model CPT3-60-10 is built with high-quality materials and adheres to strict manufacturing standards set by, ensuring durability and long-term reliability. Its compact design makes it suitable for installation in limited spaces, while its robust construction provides excellent resistance to environmental factors such as vibration, temperature fluctuations, and electrical surges. The transformer’s precise voltage regulation and efficient energy transfer help optimize system performance and reduce operational costs.
Spectrum Industries is proud to distribute this top-tier transformer, offering customers a trusted product backed by ’s renowned engineering expertise. Whether used in control panels, substations, or other medium voltage applications, the Model CPT3-60-10 delivers dependable power transformation with safety and efficiency at its core. This transformer is an ideal choice for professionals seeking a durable, high-performance solution for their electrical infrastructure needs.
Request a Quote for Model CPT3-60-10 Medium Voltage Control Power Transformer - 10 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 250 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Thermal Factor
- 10 kVA at 30°C ambient; 8.6 kVA at 55°C ambient
- Insulation Class
- 5 kV class, 60 kV BIL full wave (CPT3)
- Terminals
- Primary: brass screws 1/4-20 with flatwasher and starwasher. Secondary: brass studs 1/2-13 with flatwasher, lockwasher and two nuts, plus series/parallel links.
- Construction
- Windings encapsulated in epoxy resin; steel mounting base; varnish coated assembly
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Fuse Rating Basis
- Fuse ratings based on NEC transformer overcurrent protection recommendations; specific applications may require other ratings
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 10 | 15E | 1 ± 7.5% taps (suffix A) or 2 ± 2.5% taps (suffix B), above and below nominal primary voltage |
| 4160 | 120 | 10 | 7E | 1 ± 7.5% taps (suffix A) or 2 ± 2.5% taps (suffix B), above and below nominal primary voltage |
| 4800 | 120 | 10 | 7E | 1 ± 7.5% taps (suffix A) or 2 ± 2.5% taps (suffix B), above and below nominal primary voltage |
