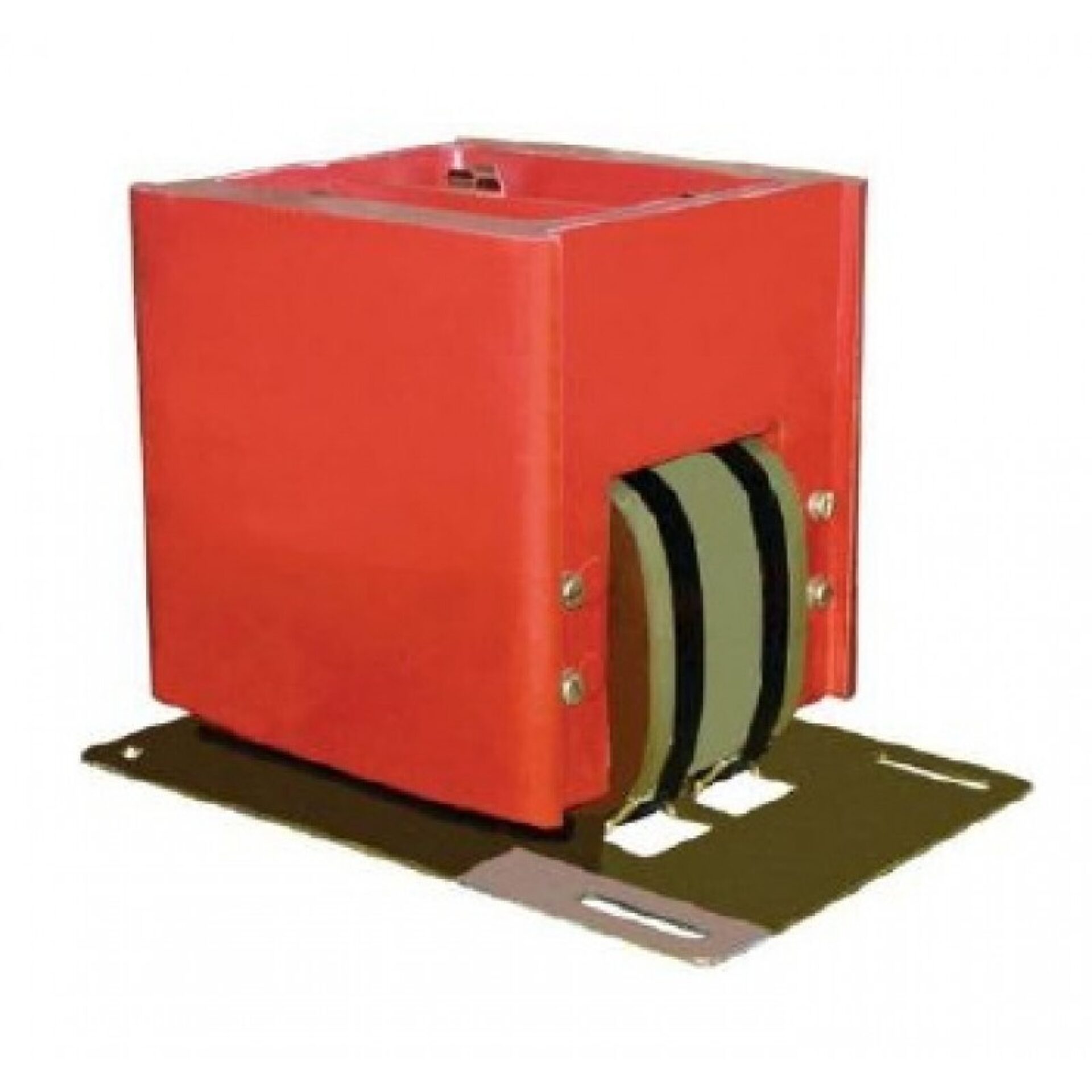

Model CPT3-60-1.0 Medium Voltage Control Power Transformer - 1.0 kVA - 60 kV BIL
Introducing the Model CPT3-60-10 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems. and offered through Spectrum Industries, this transformer is engineered to deliver reliable and efficient power conversion for a variety of industrial and commercial applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, the CPT3-60-10 is built to ensure stability and safety in medium voltage environments.
Overview
Introducing the Model CPT3-60-10 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems. and offered through Spectrum Industries, this transformer is engineered to deliver reliable and efficient power conversion for a variety of industrial and commercial applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, the CPT3-60-10 is built to ensure stability and safety in medium voltage environments.
This transformer features advanced design elements that optimize performance and durability. Its robust construction and precise manufacturing standards ensure long-lasting operation, even in challenging conditions. The CPT3-60-10 is ideal for control power applications where consistent voltage regulation and dependable operation are essential. Whether used in automation systems, control panels, or other electrical infrastructure, this product guarantees seamless integration and reliable performance.
a leader in electrical equipment manufacturing, this transformer benefits from decades of engineering expertise and innovation. Spectrum Industries ensures that the product adheres to strict quality standards, providing customers with a trusted solution for their power distribution needs. The Model CPT3-60-10 Medium Voltage Control Power Transformer is a testament to ’s commitment to delivering high-performance, durable, and efficient electrical components.
Request a Quote for Model CPT3-60-1.0 Medium Voltage Control Power Transformer - 1.0 kVA - 60 kV BIL
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 40 lbs
- Mounting
- Indoor
- Application
- Distribution, Motor Control, Control Power
- Insulation Level
- 5 kV, 60 kV BIL full wave
- Thermal Rating
- 1.0 kVA at 30 C ambient (0.8 kVA on the 3,300 V / 50 Hz unit)
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Construction
- Epoxy-encapsulated windings, steel mounting base, varnish coated
- Secondary Voltage
- 120 V (110 V on the 3,300 V / 50 Hz unit)
- Service Condition
- Indoor use; corrosion-resistant mounting base
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 2400 | 120 | 1 | 2E |
| 3300 | 110 | 1 | 2E |
| 4160 | 120 | 1 | 2E |
| 4800 | 120 | 1 | 2E |
