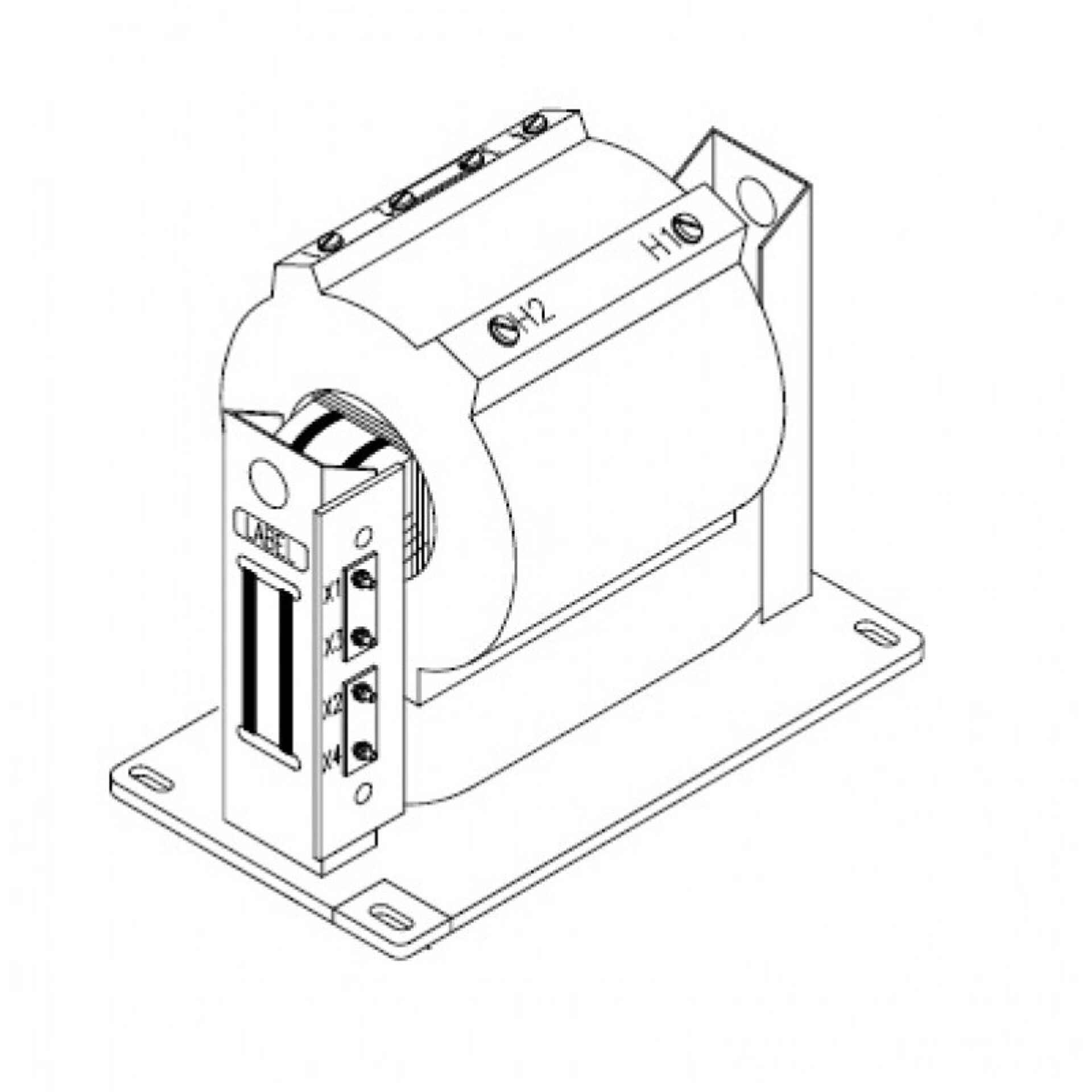

Model CPT3-60-15 Medium Voltage Control Power Transformer - 15 kVA - 60 kV BIL
Introducing the Model CPT3-60-15 Medium Voltage Control Power Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of modern electrical systems, this transformer offers reliable performance and exceptional durability in various industrial and commercial applications. With a power rating of 15 kVA and a voltage rating of 60 kV BIL, it ensures efficient and safe power distribution, helping to maintain the stability and integrity of your electrical infrastructure.
Overview
Introducing the Model CPT3-60-15 Medium Voltage Control Power Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of modern electrical systems, this transformer offers reliable performance and exceptional durability in various industrial and commercial applications. With a power rating of 15 kVA and a voltage rating of 60 kV BIL, it ensures efficient and safe power distribution, helping to maintain the stability and integrity of your electrical infrastructure.
a global leader in electrical equipment and engineering solutions, this transformer benefits from decades of innovation and expertise. Spectrum Industries has carefully selected and integrated ’s advanced technology to deliver a product that combines robustness with precise performance. The Model CPT3-60-15 is ideal for controlling and distributing medium voltage power, providing a dependable solution for transformers, switchgear, and control panels.
Designed with user safety and ease of installation in mind, this transformer features a compact form factor and straightforward mounting options. Its high-quality construction ensures long service life and minimal maintenance requirements, making it a cost-effective choice for your power management needs. Whether used in industrial plants, utility applications, or commercial facilities, the Spectrum Industries Model CPT3-60-15 Medium Voltage Control Power Transformer exemplifies the perfect blend of engineering excellence and reliable performance, backed by ’s renowned manufacturing standards.
Request a Quote for Model CPT3-60-15 Medium Voltage Control Power Transformer - 15 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 290 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Class Voltage
- 5 kV, 60 kV BIL full wave
- Thermal Rating
- 15 kVA at 30 C ambient; 12.9 kVA at 55 C ambient
- Terminals
- Primary: brass screws 1/4-20 with one flatwasher and starwasher. Secondary: brass studs 1/2-13 with one flatwasher, lockwasher and two nuts, plus series/parallel links.
- Taps
- 1 plus/minus 7.5% or 2 plus/minus 2.5% taps above and below nominal voltage on the primary winding
- Construction
- Windings encapsulated in epoxy resin; steel mounting base; varnish coated assembly
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 15 | 15E | 1 +/-7.5% or 2 +/-2.5% (optional suffix A or B) |
| 4160 | 120 | 15 | 10E | 1 +/-7.5% or 2 +/-2.5% (optional suffix A or B) |
| 4800 | 120 | 15 | 10E | 1 +/-7.5% or 2 +/-2.5% (optional suffix A or B) |
