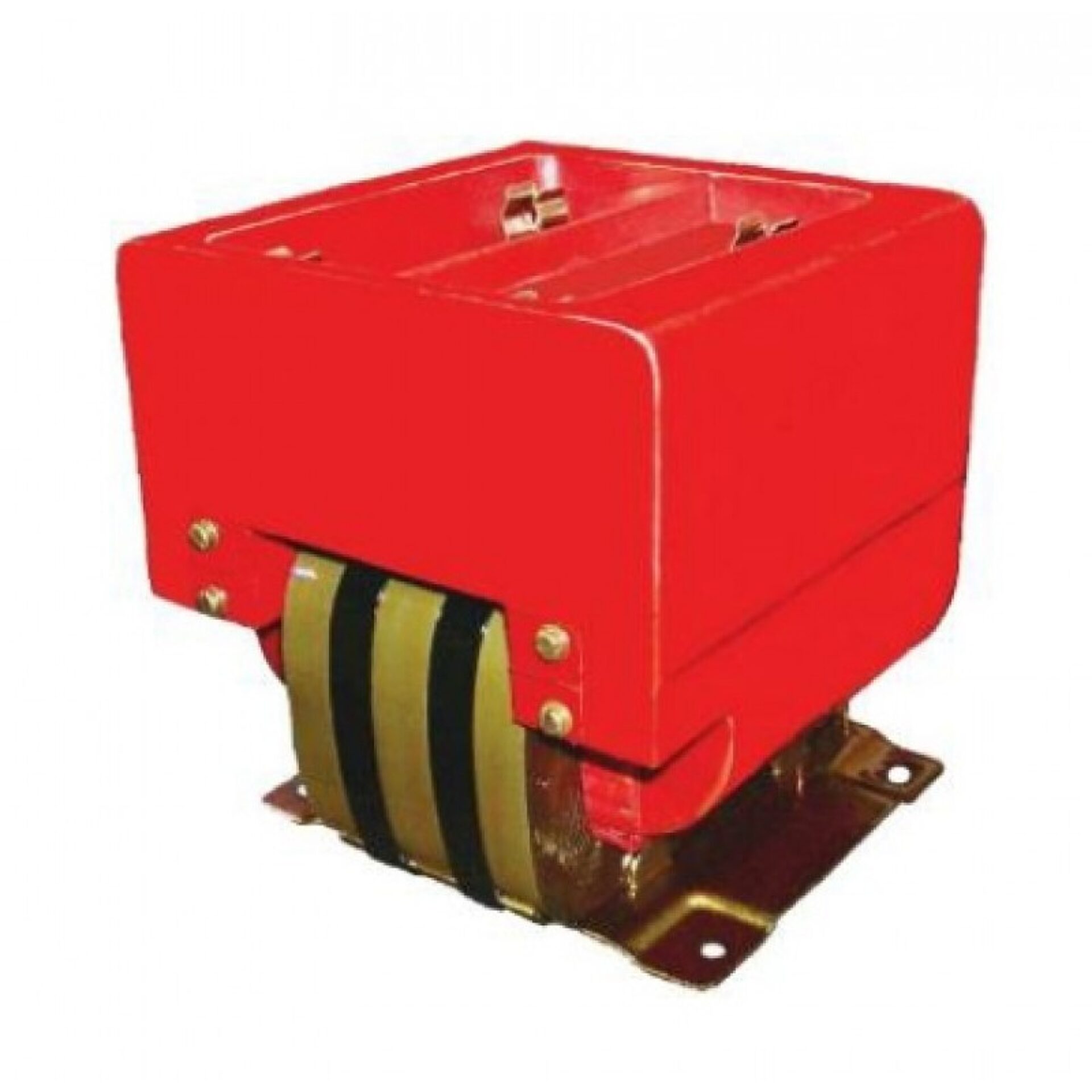

Model CPT3-60-2 Medium Voltage Control Power Transformer - 2 kVA - 60 kV BIL
Application: To provide control power in distribution equipment and motor starters.
Insulation Level: 5 kV, 60 kV BIL full wave.
Primary and secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
Windings are encapsulated in epoxy resin.
Mounting base is steel.
Assembly is varnish coated.
Corrosion resistant mounting base provided
For indoor use.
Approximate weight 63 lbs.
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
