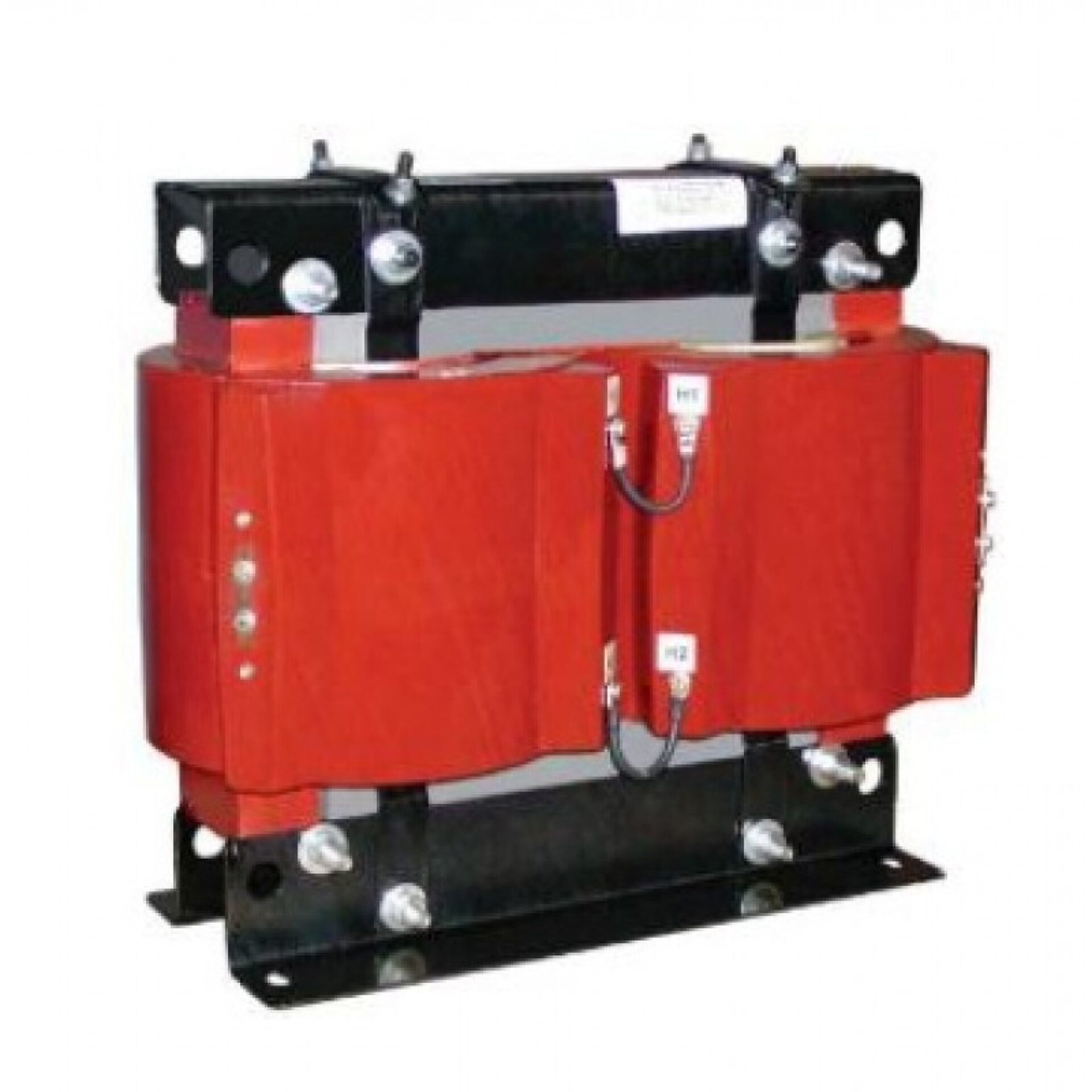

Model CPT3-60-25 Medium Voltage Control Power Transformer - 25 kVA - 60 kV BIL
Introducing the Model CPT3-60-25 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of industrial and utility applications, this transformer provides reliable and efficient power management for medium voltage systems. With a power rating of 25 kVA and a voltage capacity of 60 kV BIL, it ensures stable operation and optimal performance in various electrical environments.
Overview
Introducing the Model CPT3-60-25 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of industrial and utility applications, this transformer provides reliable and efficient power management for medium voltage systems. With a power rating of 25 kVA and a voltage capacity of 60 kV BIL, it ensures stable operation and optimal performance in various electrical environments.
a global leader in electrical equipment manufacturing, this transformer benefits from advanced engineering and rigorous quality standards. Its robust construction guarantees durability and long-term reliability, making it an excellent choice for controlling and distributing power in complex electrical setups. The Model CPT3-60-25 features a compact design that facilitates easy installation and maintenance, reducing downtime and operational costs.
Spectrum Industries is proud to offer this transformer as part of their extensive portfolio of electrical solutions. Whether for new installations or upgrades to existing systems, this product provides a dependable and efficient power solution. Its precise specifications and high-quality build make it suitable for a wide range of applications, ensuring safety and performance are never compromised. Trust in ’s heritage of innovation and Spectrum Industries’ commitment to excellence with the Model CPT3-60-25 Medium Voltage Control Power Transformer.
Request a Quote for Model CPT3-60-25 Medium Voltage Control Power Transformer - 25 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 411 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Class
- 5 kV Class
- Cooling
- Self cooled
- Winding Construction
- Windings encapsulated in epoxy resin; steel mounting base; varnish-coated assembly
- Primary Terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- Brass studs 1/2-13 with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Overload Rating
- 21.5 kVA at 55°C ambient (vs. 25 kVA at 30°C ambient)
- Fuse Availability
- Available as unfused only
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 25 | 25E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) taps above and below nominal, primary winding |
| 4160 | 120 | 25 | 15E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) taps above and below nominal, primary winding |
| 4800 | 120 | 25 | 15E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) taps above and below nominal, primary winding |
