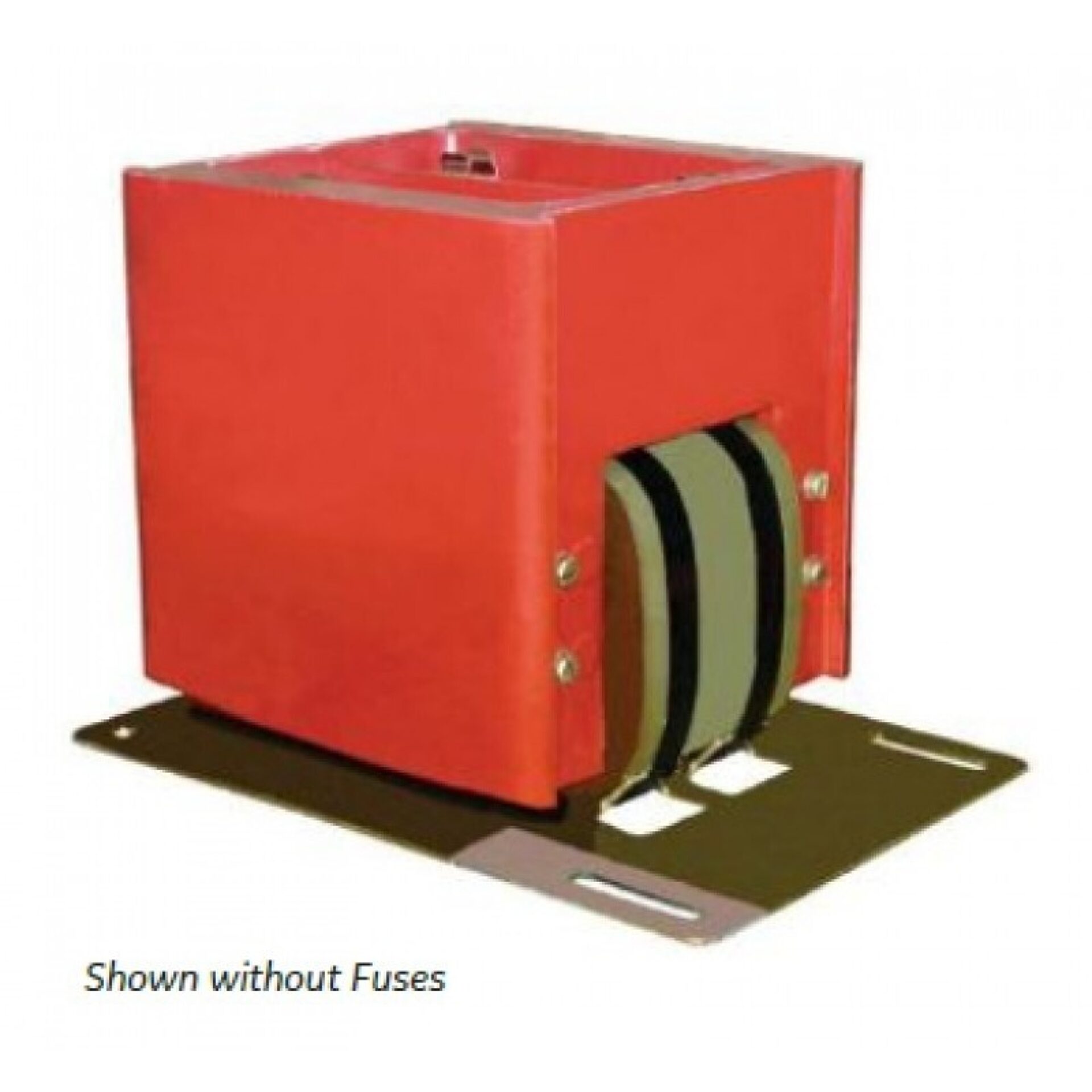

Model CPT3-60-3 Medium Voltage Control Power Transformer - 3 kVA - 60 kV BIL
Application: To provide control power in distribution equipment and motor starters.
Frequency: 60Hz
Insulation Level: 5 kV, 60 kV BIL full wave.
Thermal Factor: 3 kVA at 30 degrees C ambient.
Primary and secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
Secondary terminals are brass screws 1/4-20with one flatwasher and lockwasher.
Windings are encapsulated in epoxy resin.
Mounting base is steel.
Assembly is varnish coated.
Corrosion resistant mounting base provided
For indoor use.
Approximate weight 85 lbs.
