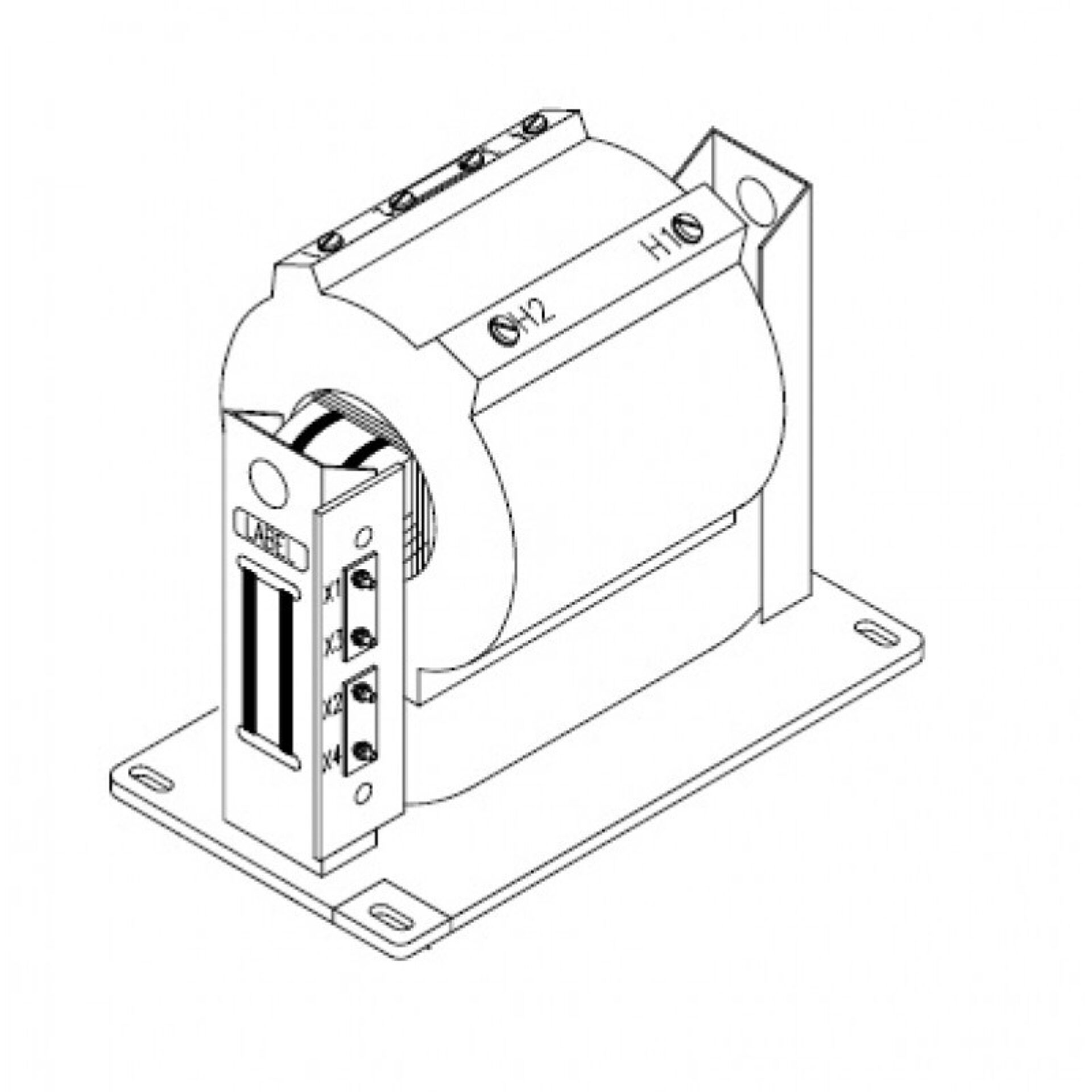

Model CPT5-95-10 Medium Voltage Control Power Transformer - 10 kVA - 95 kV BIL
Introducing the Model CPT5-95-10 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and engineering, this transformer is engineered to deliver reliable performance and exceptional durability in various industrial and commercial applications. With a power capacity of 10 kVA and a voltage rating of 95 kV BIL, the CPT5-95-10 ensures efficient and safe power distribution, making it an ideal choice for control circuits, instrumentation, and other low-voltage applications.
Overview
Introducing the Model CPT5-95-10 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and engineering, this transformer is engineered to deliver reliable performance and exceptional durability in various industrial and commercial applications. With a power capacity of 10 kVA and a voltage rating of 95 kV BIL, the CPT5-95-10 ensures efficient and safe power distribution, making it an ideal choice for control circuits, instrumentation, and other low-voltage applications.
a company renowned for its innovative technology and commitment to quality, this transformer embodies advanced design features that enhance operational stability and longevity. Its robust construction and precise engineering ensure consistent performance even under challenging conditions, providing peace of mind for users who require dependable power solutions. The CPT5-95-10 is built to meet strict industry standards, offering both safety and efficiency in a compact and easy-to-install package.
Spectrum Industries proudly offers this -produced medium voltage control power transformer as part of their extensive portfolio of electrical components. Whether for new installations or upgrades to existing systems, the Model CPT5-95-10 stands out as a reliable and efficient choice, backed by ’s reputation for excellence and Spectrum Industries’ commitment to customer satisfaction.
Request a Quote for Model CPT5-95-10 Medium Voltage Control Power Transformer - 10 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 250 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Level
- 15 kV class, 95 kV BIL full wave
- Thermal Factor
- 10 kVA at 30C ambient; 8.6 kVA at 55C ambient
- Terminals
- Primary: brass screws 1/4-20 with flatwasher and starwasher. Secondary: brass studs 1/2-13 with flatwasher, lockwasher, two nuts, plus series/parallel links.
- Construction
- Windings encapsulated in epoxy resin; steel mounting base; varnish-coated assembly.
- Fusing
- Available as unfused only
- Cooling
- Self-cooled
Specification Table
| Primary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|
| 7200 | 10 | 5E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 8400 | 10 | 5E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 12000 | 10 | 3E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 12470 | 10 | 3E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 13200 | 10 | 3E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 13800 | 10 | 3E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
| 14400 | 10 | 3E | 1 +/-7.5% (suffix A) or 2 +/-2.5% (suffix B) taps above/below nominal, primary winding |
