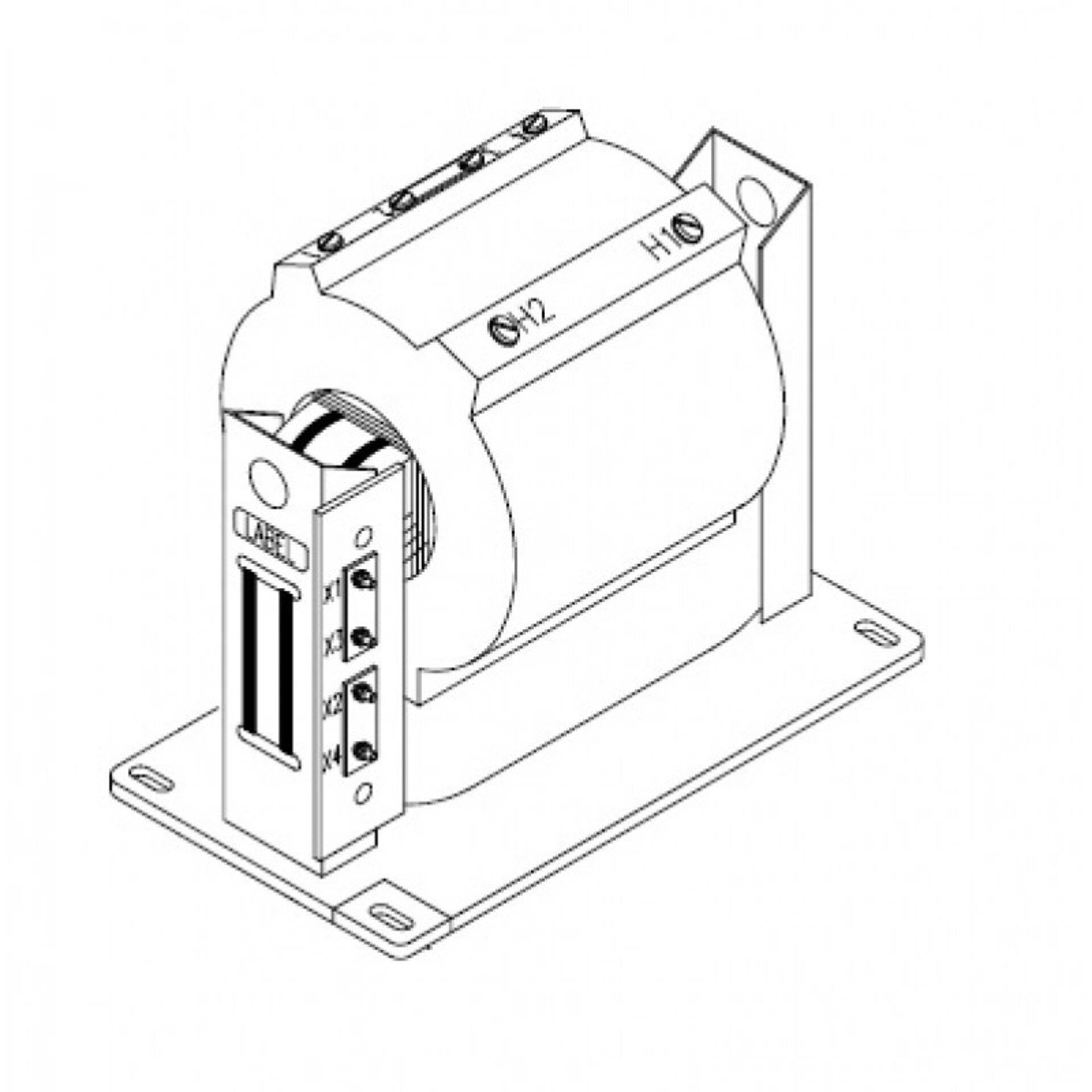

Model CPT5-95-15 Medium Voltage Control Power Transformer - 15 kVA - 95 kV BIL
Introducing the Model CPT5-95-15 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of electrical control systems., a globally recognized leader in electrical and industrial equipment, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it is engineered to deliver consistent performance in medium voltage applications, ensuring stable power distribution and control.
Overview
Introducing the Model CPT5-95-15 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of electrical control systems., a globally recognized leader in electrical and industrial equipment, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it is engineered to deliver consistent performance in medium voltage applications, ensuring stable power distribution and control.
Produced by Spectrum Industries, a trusted name in electrical components and solutions, the Model CPT5-95-15 is built with precision and durability in mind. Its robust construction and adherence to strict industry standards make it suitable for use in a variety of industrial, utility, and commercial environments. This transformer is designed to provide optimal voltage regulation and isolation, helping to protect sensitive equipment and improve overall system performance.
Whether you are upgrading an existing installation or designing a new electrical control system, the Spectrum Industries Model CPT5-95-15 offers a reliable and efficient power transformation solution. Its compact design, combined with high-quality materials and manufacturing standards, ensures long-term operational stability and peace of mind. This transformer is a smart investment for any project requiring dependable medium voltage control power.
Request a Quote for Model CPT5-95-15 Medium Voltage Control Power Transformer - 15 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 290 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Class
- 15 kV, 95 kV BIL full wave
- Thermal Rating
- 15 kVA at 30°C ambient; 12.9 kVA at 55°C ambient
- Style
- TL
- Terminals
- Primary: brass screws 1/4-20 with one flatwasher and starwasher. Secondary: brass studs 1/2-13 with one flatwasher, lockwasher and two nuts, plus series/parallel links.
- Windings
- Encapsulated in epoxy resin
- Construction
- Steel mounting base; varnish coated assembly
- Cooling
- Self cooled
- Fusing
- Available as unfused only
- Taps
- Supplied with 1 ±7.5% or 2 ±2.5% taps above and below nominal on the primary winding (suffix A or B)
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 15 | 7E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 8400 | 120 | 15 | 7E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 12000 | 120 | 15 | 5E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 12470 | 120 | 15 | 5E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 13200 | 120 | 15 | 5E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 13800 | 120 | 15 | 5E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
| 14400 | 120 | 15 | 5E | 1 ±7.5% or 2 ±2.5% taps (suffix A/B) |
