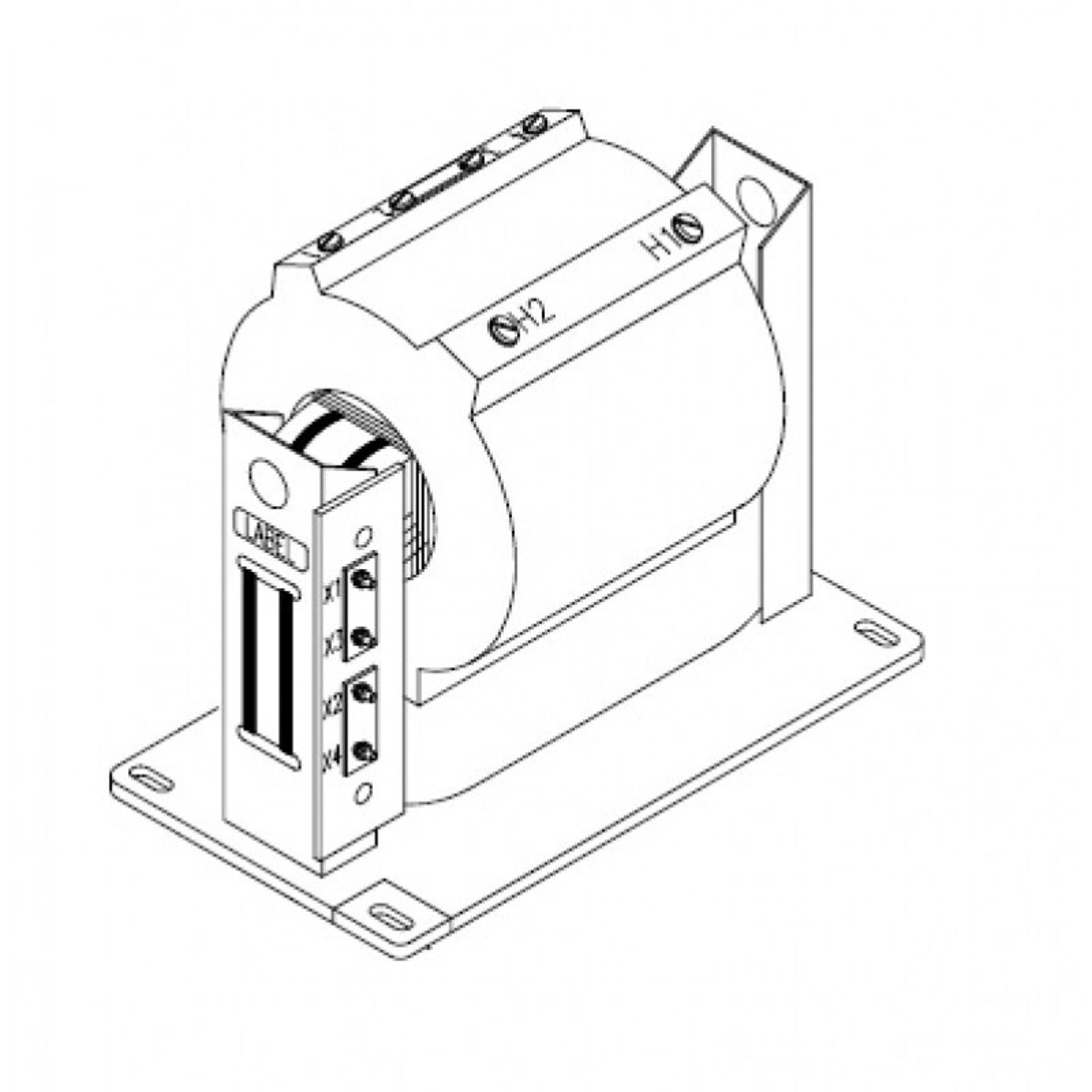

Model CPT5-95-5 Medium Voltage Control Power Transformer - 5 kVA - 95 kV BIL
Introducing the Model CPT5-95-5 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical engineering and manufacturing, this transformer exemplifies reliability, efficiency, and advanced engineering. With a power rating of 5 kVA and a voltage rating of 95 kV BIL, the CPT5-95-5 is engineered to provide stable and consistent power conversion in medium voltage applications.
Overview
Introducing the Model CPT5-95-5 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical engineering and manufacturing, this transformer exemplifies reliability, efficiency, and advanced engineering. With a power rating of 5 kVA and a voltage rating of 95 kV BIL, the CPT5-95-5 is engineered to provide stable and consistent power conversion in medium voltage applications.
a company renowned for its innovation and commitment to quality, this transformer is built to ensure durability and optimal performance in various industrial, commercial, and utility settings. Its robust construction and precise specifications make it an ideal choice for controlling and distributing electrical power safely and efficiently. The CPT5-95-5 is designed with safety features and compliance standards that guarantee reliable operation over its lifespan, reducing downtime and maintenance costs.
Spectrum Industries offers this transformer as part of their extensive product lineup, providing customers with a trusted solution backed by ’s legacy of excellence. Whether for new installations or upgrades, the Model CPT5-95-5 Medium Voltage Control Power Transformer is a dependable component that ensures your electrical infrastructure operates smoothly and safely.
Request a Quote for Model CPT5-95-5 Medium Voltage Control Power Transformer - 5 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 165 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Thermal Derating
- 4.3 kVA at 55 C ambient (vs. 5 kVA at 30 C ambient)
- Primary Terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- Brass studs 1/2-13 with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Tap Configuration
- 1 x 7.5% or 2 x 2.5% taps above and below nominal voltage on the primary winding; suffix A after catalog number = 1 x 7.5% taps, suffix B = 2 x 2.5% taps
- Winding & Mounting Construction
- Windings encapsulated in epoxy resin; steel mounting base; varnish-coated assembly
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 240 | 5 | 3E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 8400 | 240 | 5 | 3E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 12000 | 240 | 5 | 2E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 12470 | 240 | 5 | 2E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 13200 | 240 | 5 | 2E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 13800 | 240 | 5 | 2E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
| 14400 | 240 | 5 | 2E | 1 x 7.5% (suffix A) or 2 x 2.5% (suffix B) primary taps above/below nominal |
