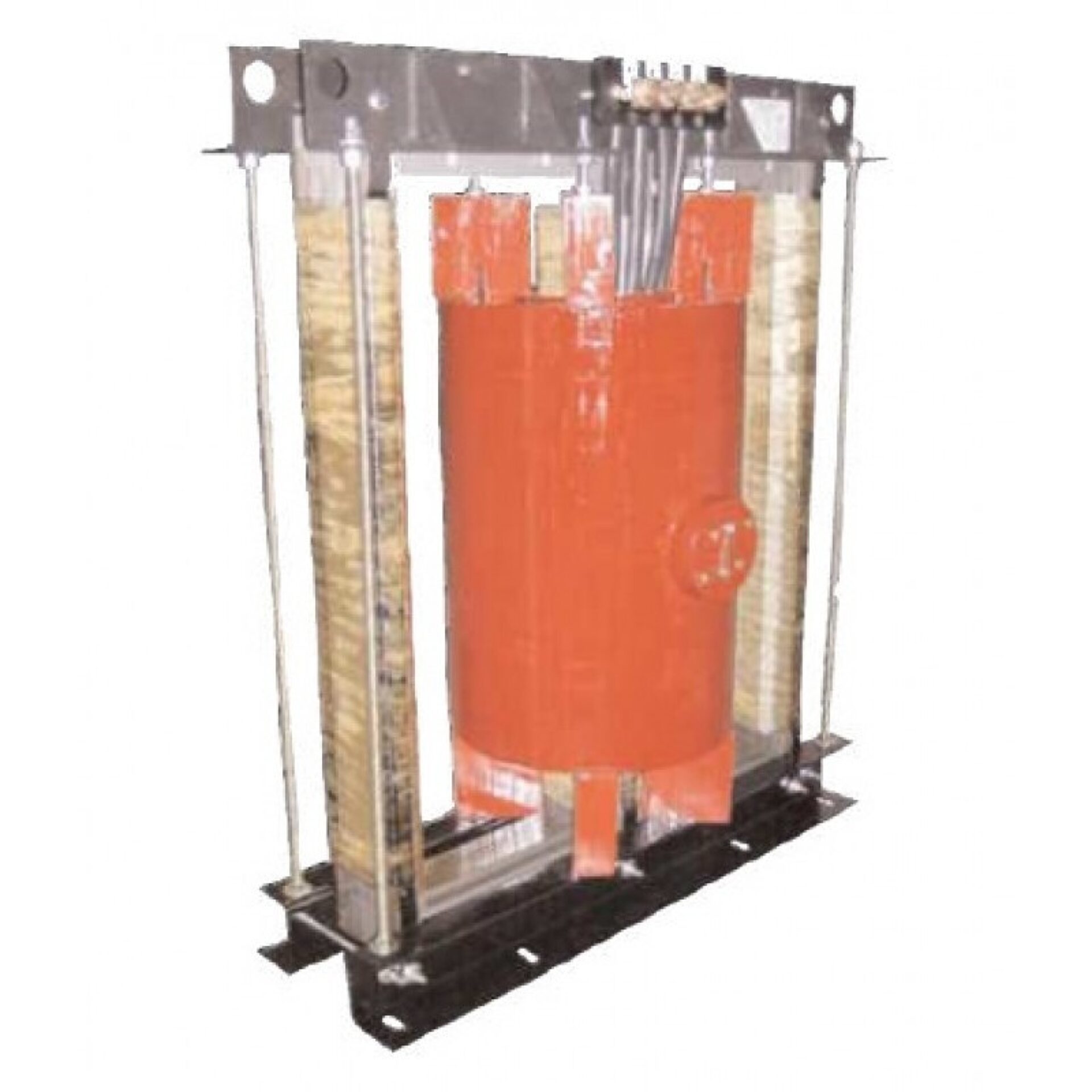

Model CPTD3-60-25 Medium Voltage Control Power Transformer - 25 kVA - 60 kV BIL
Introducing the Model CPTD3-60-25 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a leader in innovative electrical equipment, this transformer offers exceptional performance and durability for a variety of industrial and commercial applications. With a power rating of 25 kVA and a voltage capacity of 60 kV BIL, the CPTD3-60-25 is engineered to deliver consistent, high-quality power transformation, ensuring your operations run smoothly and safely.
Overview
Introducing the Model CPTD3-60-25 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a leader in innovative electrical equipment, this transformer offers exceptional performance and durability for a variety of industrial and commercial applications. With a power rating of 25 kVA and a voltage capacity of 60 kV BIL, the CPTD3-60-25 is engineered to deliver consistent, high-quality power transformation, ensuring your operations run smoothly and safely.
a company renowned for its commitment to engineering excellence and technological advancement, this transformer embodies the highest standards of quality and reliability. Its robust construction and advanced design features make it suitable for control and power distribution tasks where dependable voltage regulation is critical. The CPTD3-60-25 is built to withstand harsh environmental conditions while maintaining optimal performance, making it a versatile choice for various industrial settings.
Spectrum Industries, known for its dedication to providing top-tier electrical components, offers this transformer as part of its extensive product lineup. Whether you need a dependable control transformer for a manufacturing plant, utility, or other industrial facility, the Model CPTD3-60-25 stands out as a trusted and efficient solution. Its combination of innovative design, proven performance, and the backing of ’s engineering expertise makes it an excellent choice for ensuring the safety and efficiency of your electrical systems.
Request a Quote for Model CPTD3-60-25 Medium Voltage Control Power Transformer - 25 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Level (as printed)
- 15 kV Class, 95 kV BIL
- Thermal Rating
- 25 kVA at 30°C ambient; 21.5 kVA at 55°C ambient; 80°C rise
- H.V. Terminals
- 3/8-16 brass inserts
- L.V. Terminals
- 1/2-13 brass studs
- Windings
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly Finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Tap Options
- Suffix A = 1 ± 7.5% tap; Suffix B = 2 ± 2.5% taps
- Fuse Rating Basis
- Based on NEC transformer overcurrent protection recommendations; specific applications may require other ratings.
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 25 | 25E | Optional suffix A (1±7.5%) or B (2±2.5%) |
| 4160 | 120 | 25 | 15E | Optional suffix A (1±7.5%) or B (2±2.5%) |
| 4800 | 120 | 25 | 15E | Optional suffix A (1±7.5%) or B (2±2.5%) |
