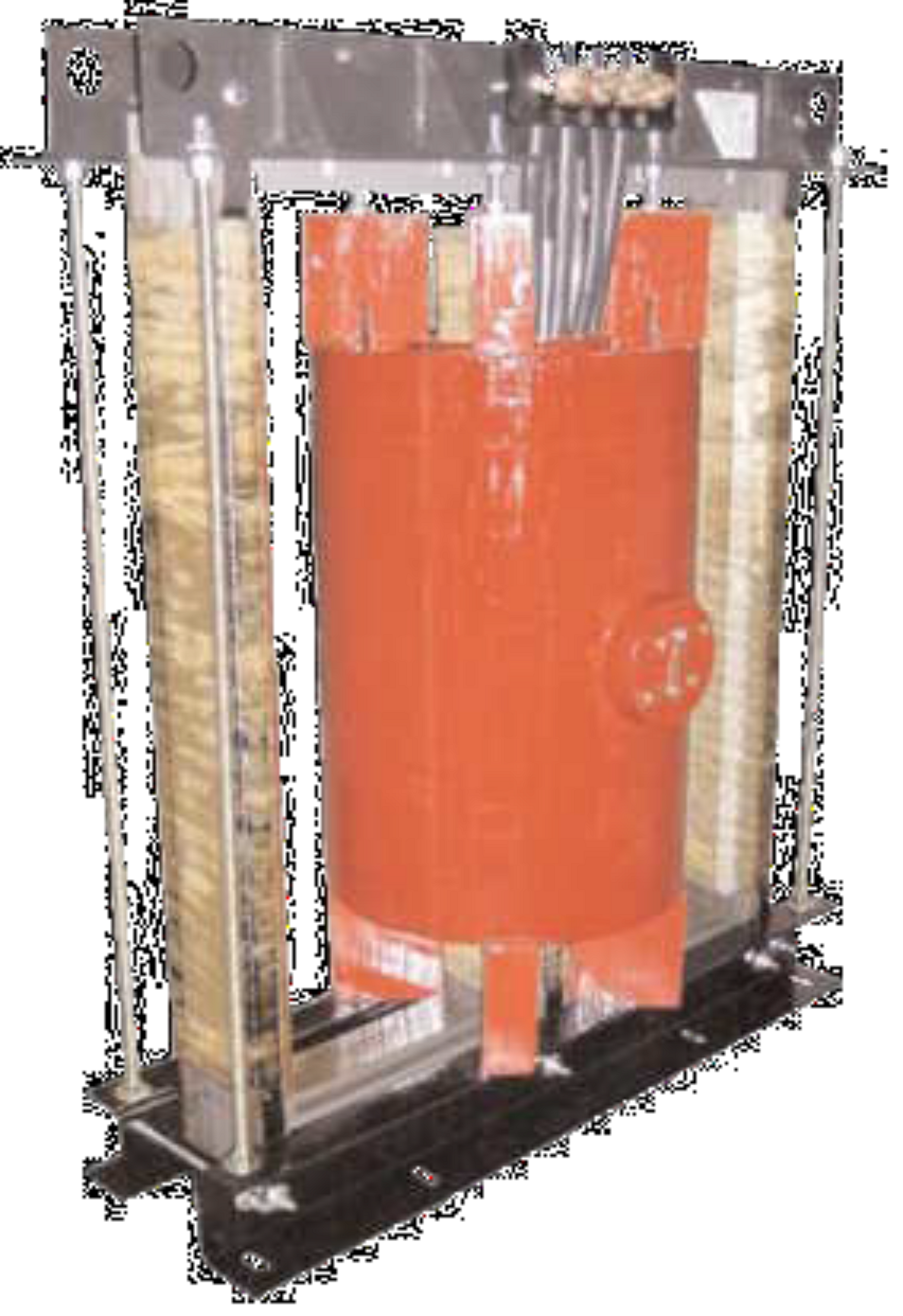

Model CPTD3-60-37-5 Medium Voltage Control Power Transformer
Medium-voltage control power transformer for medium-voltage switchgear auxiliary power; rated 15 kV Class, 95 kV BIL, 60-37.5 A.
Our CPTD3-60-37-5 provides reliable medium-voltage control power transformer performance for medium-voltage switchgear auxiliary power.
Overview
The Model CPTD3-60-37-5 Medium Voltage Control Power Transformer is engineered for medium-voltage service in utility, industrial, and commercial electrical distribution installations, targeting medium-voltage switchgear auxiliary power. To provide control power in medium voltage switchgear. Frequency 60 Hz. Insulation Level 15 kV Class, 95 kV BIL Thermal Rating 25 kVA at 30°C ambient
Constructed with precision-wound cores and robust insulation, the CPTD3-60-37-5 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of medium-voltage installations. Key ratings: 15 kV Class, 95 kV BIL, 60-37.5 A. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model CPTD3-60-37-5 Medium Voltage Control Power Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Class
- 15 kV Class
- Thermal Rating
- 37.5 kVA @ 30 degC / 32.2 kVA @ 55 degC
- H.V. Terminals
- 3/8-16 brass inserts
- L.V. Terminals
- 1/2-13 brass studs
- Windings
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Tap Options
- Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 37.5 | 25E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 4160 | 120 | 37.5 | 20E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 4800 | 120 | 37.5 | 20E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
