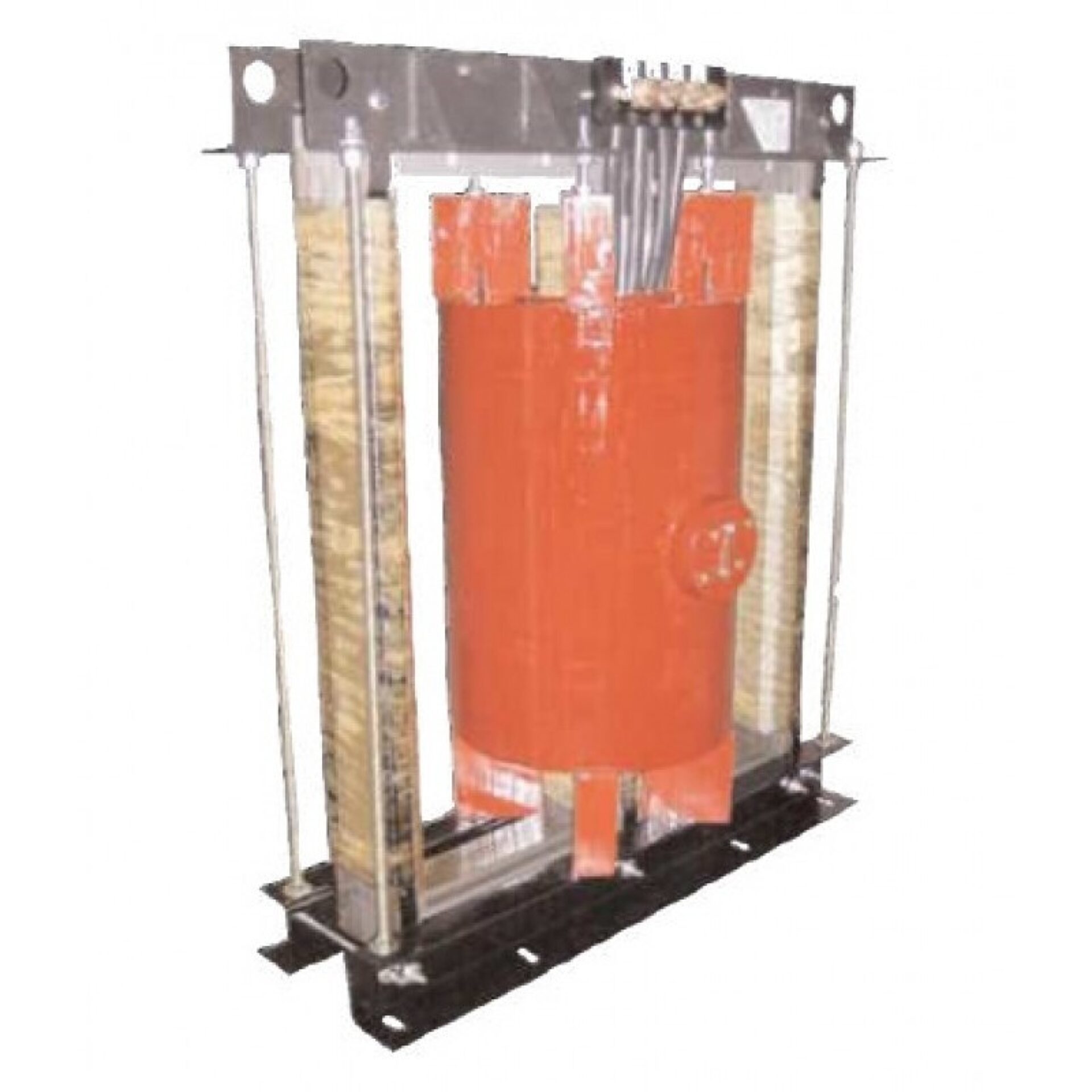

Model CPTD3-60-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 60 kV BIL
Introducing the Model CPTD3-60-375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and technology, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 375 kVA and a voltage rating of 60 kV BIL, it is engineered to provide stable and consistent power distribution in various industrial and utility applications.
Overview
Introducing the Model CPTD3-60-375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and technology, this transformer exemplifies reliability, efficiency, and safety. With a power rating of 375 kVA and a voltage rating of 60 kV BIL, it is engineered to provide stable and consistent power distribution in various industrial and utility applications.
a company renowned for its innovation and engineering excellence, this transformer benefits from advanced manufacturing processes and rigorous quality standards. Its robust design ensures durability and long-term performance, even in challenging environments. The CPTD3-60-375 is specifically tailored to facilitate control and power distribution in medium voltage systems, making it a versatile choice for substations, industrial plants, and other critical infrastructure.
Designed with safety and ease of maintenance in mind, this transformer incorporates features that enhance operational reliability while minimizing downtime. Whether used for new installations or as a replacement component, the Model CPTD3-60-375 offers a dependable power solution that aligns with industry standards and best practices. Trust in ’s legacy of engineering excellence to support your electrical infrastructure with this premium medium voltage control power transformer from Spectrum Industries.
Request a Quote for Model CPTD3-60-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Thermal Rating
- 37.5 kVA at 30°C ambient; 32.2 kVA at 55°C ambient (80°C rise)
- H.V. Terminals
- 3/8-16 brass inserts
- L.V. Terminals
- 1/2-13 brass studs
- Winding Construction
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly Finish
- Varnish coated
- Fuse Configuration
- Unfused only
- Insulation Class
- 15 kV Class, 60 kV BIL
- Tap Options
- Suffix 'A' = 1 ± 7½% taps; Suffix 'B' = 2 ± 2½% taps
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 37.5 | 25E | Suffix A = 1 ±7.5% tap; Suffix B = 2 ±2.5% taps (ratio 20:1) |
| 4160 | 120 | 37.5 | 20E | Suffix A = 1 ±7.5% tap; Suffix B = 2 ±2.5% taps (ratio 34.7:1) |
| 4800 | 120 | 37.5 | 20E | Suffix A = 1 ±7.5% tap; Suffix B = 2 ±2.5% taps (ratio 40:1) |
