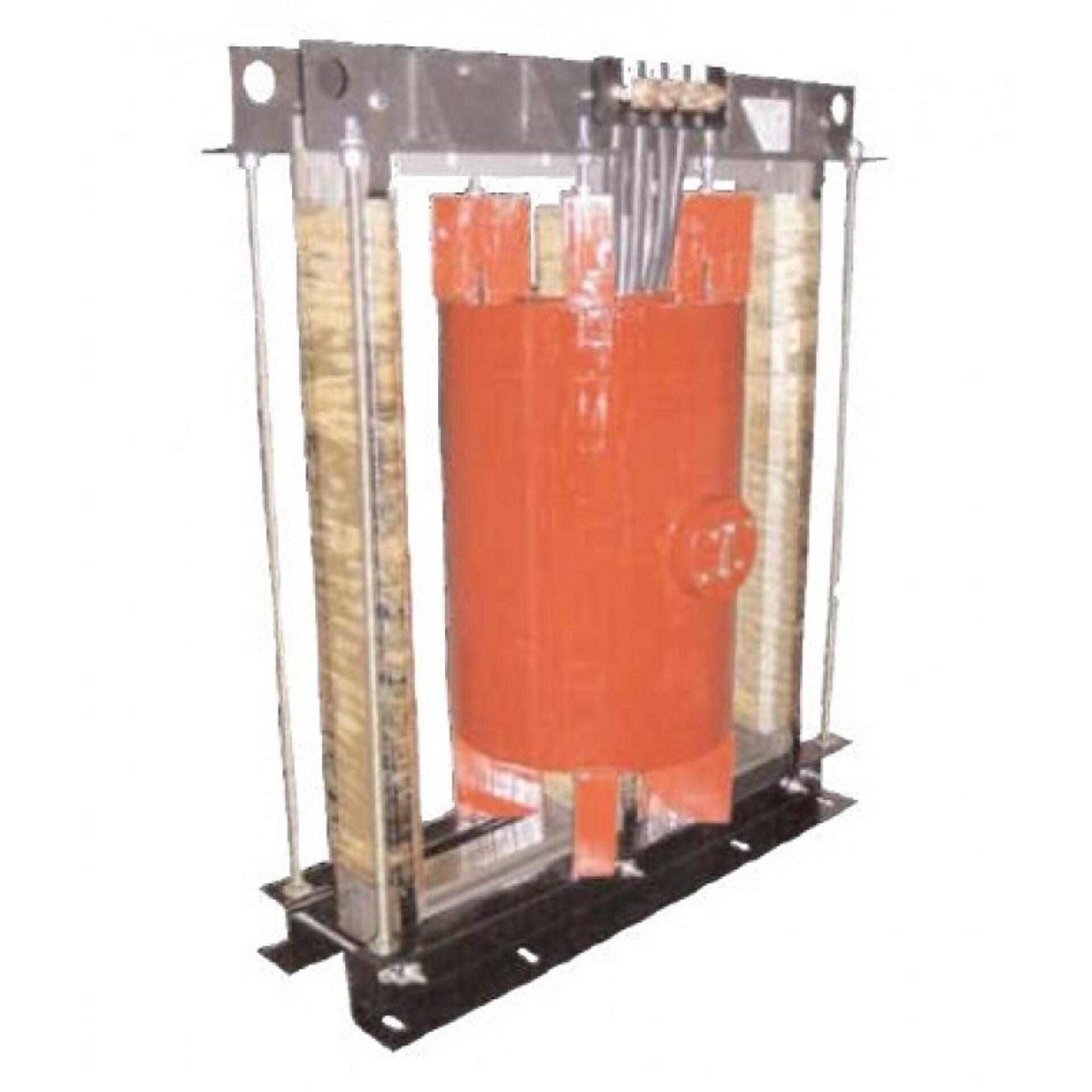

Model CPTD3-60-50 Medium Voltage Control Power Transformer - 50 kVA - 60 kV BIL
Introducing the Model CPTD3-60/50 Medium Voltage Control Power Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable power conversion and distribution in a compact, efficient package. With a power rating of 50 kVA and a voltage rating of 60 kV BIL, it provides a robust and dependable performance suitable for various industrial and commercial applications.
Overview
Introducing the Model CPTD3-60/50 Medium Voltage Control Power Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable power conversion and distribution in a compact, efficient package. With a power rating of 50 kVA and a voltage rating of 60 kV BIL, it provides a robust and dependable performance suitable for various industrial and commercial applications.
This transformer is specifically crafted to serve as a control power source in medium voltage environments, ensuring stable operation and minimizing electrical disturbances. Its advanced design incorporates industry-leading technology, renowned for its innovation and durability. The Model CPTD3-60/50 features precise voltage regulation and excellent thermal management, making it an ideal choice for ensuring consistent power supply to control circuits, instrumentation, and auxiliary systems.
Built with durability and safety in mind, this transformer adheres to stringent standards and incorporates features that enhance longevity and ease of maintenance. Spectrum Industries’ commitment to quality ensures that each unit is rigorously tested to meet the highest performance benchmarks. Whether upgrading existing infrastructure or installing new systems, the Model CPTD3-60/50 from Spectrum Industries offers a reliable, efficient, and cost-effective solution for medium voltage control power needs.
Request a Quote for Model CPTD3-60-50 Medium Voltage Control Power Transformer - 50 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 750 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level
- 5 kV Class, 60 kV BIL
- Thermal Rating
- 50 kVA at 30°C ambient; 42.9 kVA at 55°C ambient, 80°C rise
- Primary Terminals
- 3/8-16 inserts
- Secondary Terminals
- 1/2-13 brass studs
- Winding Construction
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly Finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 50 | 40E | Ratio 20:1, secondary 120/240V. Suffix A: (1) ±7.5% tap; Suffix B: (2) ±2.5% taps |
| 4160 | 120 | 50 | 25E | Ratio 34.7:1, secondary 120/240V. Suffix A: (1) ±7.5% tap; Suffix B: (2) ±2.5% taps |
| 4800 | 120 | 50 | 25E | Ratio 40:1, secondary 120/240V. Suffix A: (1) ±7.5% tap; Suffix B: (2) ±2.5% taps |
