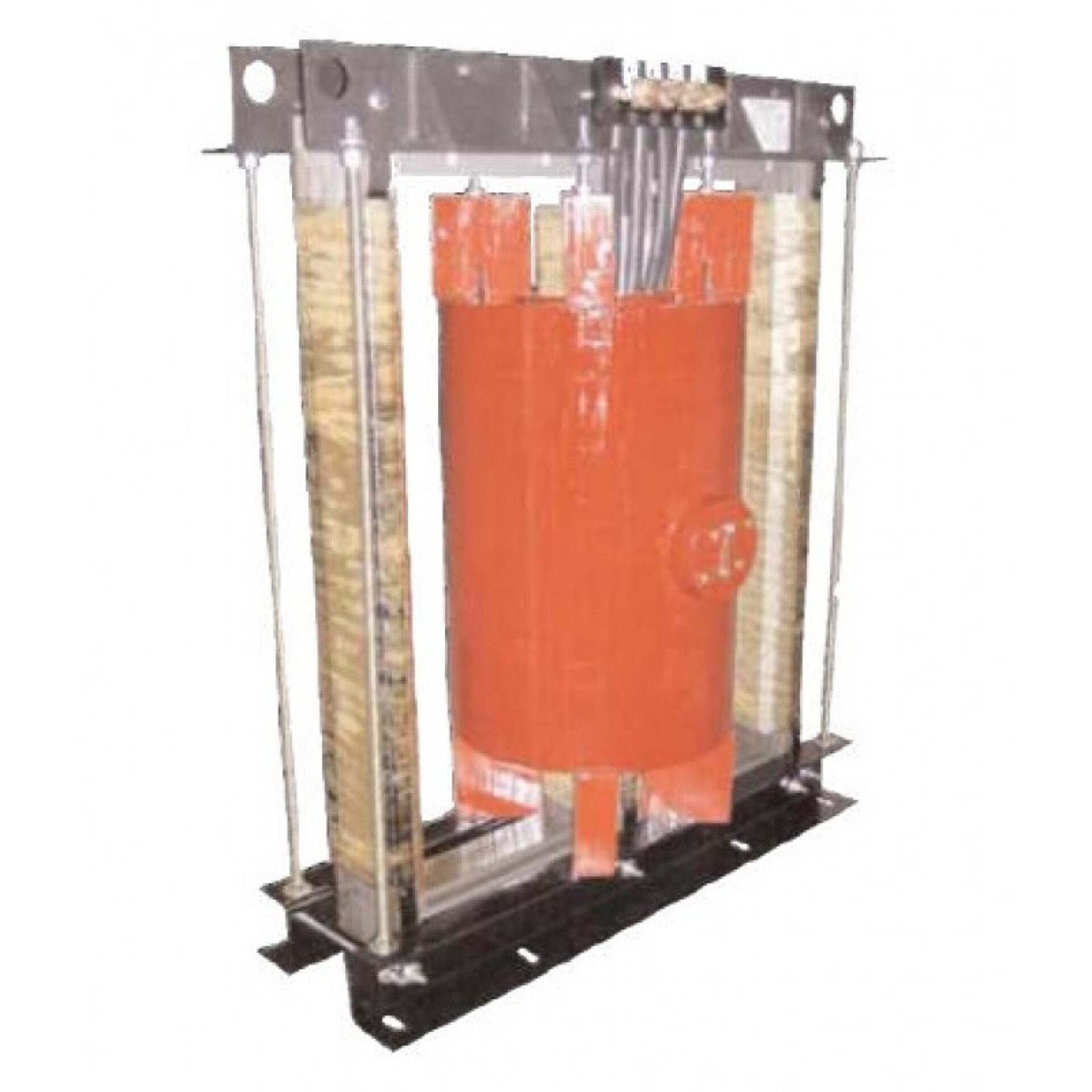

Model CPTD5-95-25 Medium Voltage Control Power Transformer - 25 kVA - 95 kV BIL
Introducing the Model CPTD5-95-25 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver reliable power conversion for various industrial and electrical applications, this transformer offers exceptional performance and durability. With a power rating of 25 kVA and a voltage rating of 95 kV BIL, it ensures efficient and stable operation in demanding environments.
Overview
Introducing the Model CPTD5-95-25 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver reliable power conversion for various industrial and electrical applications, this transformer offers exceptional performance and durability. With a power rating of 25 kVA and a voltage rating of 95 kV BIL, it ensures efficient and stable operation in demanding environments.
a global leader in electrical equipment and innovations, this transformer benefits from advanced engineering and rigorous quality standards. Its robust construction and precise specifications make it an ideal choice for control power applications where dependable performance is critical. The CPTD5-95-25 model is engineered to meet industry standards, providing peace of mind and long-term reliability for your electrical infrastructure.
Spectrum Industries takes pride in offering products that combine ’s technological excellence with their commitment to quality and customer satisfaction. This medium voltage control power transformer is designed to seamlessly integrate into your existing systems, supporting safe and efficient power distribution. Whether for new installations or upgrades, the Model CPTD5-95-25 ensures your operations run smoothly with minimal downtime. Trust in Spectrum Industries to deliver innovative, dependable solutions backed by ’s renowned expertise in electrical equipment.
Request a Quote for Model CPTD5-95-25 Medium Voltage Control Power Transformer - 25 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level
- 15 kV Class, 95 kV BIL
- Thermal Rating
- 25 kVA at 30°C ambient; 21.5 kVA at 55°C ambient; 80°C rise
- H.V. Terminals
- 3/8-16 brass inserts
- L.V. Terminals
- 1/2-13 brass studs
- Windings
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Fuse Rating Basis
- Fuse ratings based on NEC transformer overcurrent protection recommendations; specific applications may require other ratings.
- Tap Options
- 1 ± 7.5% taps available with suffix A; 2 ± 2.5% taps available with suffix B
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 7200 | 120 | 25 | 10E |
| 8400 | 120 | 25 | 10E |
| 12000 | 120 | 25 | 7E |
| 12470 | 120 | 25 | 7E |
| 13200 | 120 | 25 | 7E |
| 13800 | 120 | 25 | 7E |
| 14400 | 120 | 25 | 7E |
