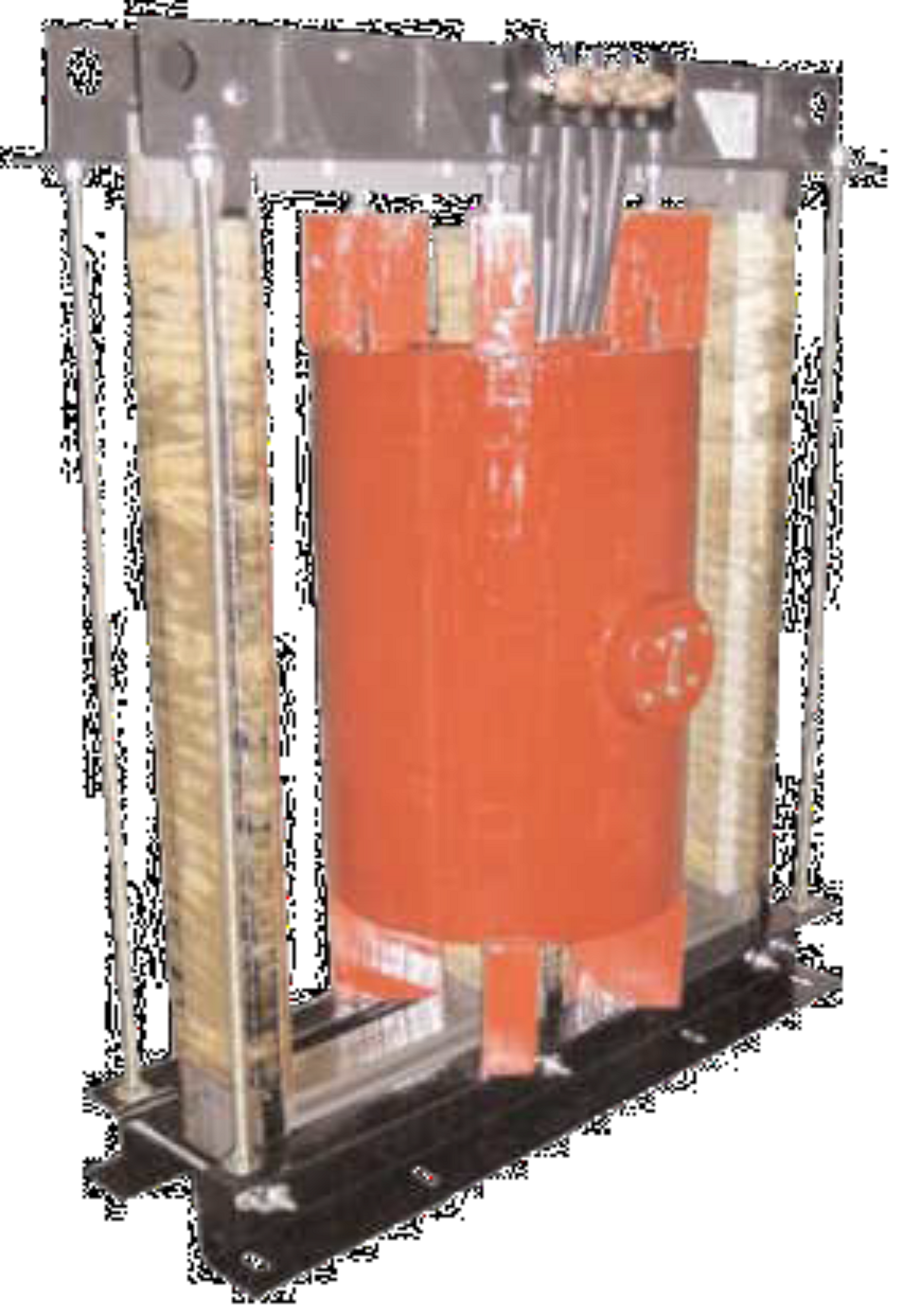

Model CPTD5-95-37-5 Medium Voltage Control Power Transformer

Name: Spectrum Industries
Price range: $

Medium-voltage control power transformer for medium-voltage switchgear auxiliary power; rated 15 kV Class, 95 kV BIL, 60-37.5 A.

Our CPTD5-95-37-5 provides reliable medium-voltage control power transformer performance for medium-voltage switchgear auxiliary power.

Contact sales

Overview

The Model CPTD5-95-37-5 Medium Voltage Control Power Transformer is engineered for medium-voltage service in utility, industrial, and commercial electrical distribution installations, targeting medium-voltage switchgear auxiliary power. To provide control power in medium voltage switchgear. Frequency 60 Hz. Insulation Level 15 kV Class, 95 kV BIL Thermal Rating 25 kVA at 30°C ambient

Constructed with precision-wound cores and robust insulation, the CPTD5-95-37-5 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of medium-voltage installations. Key ratings: 15 kV Class, 95 kV BIL, 60-37.5 A. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.

Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
