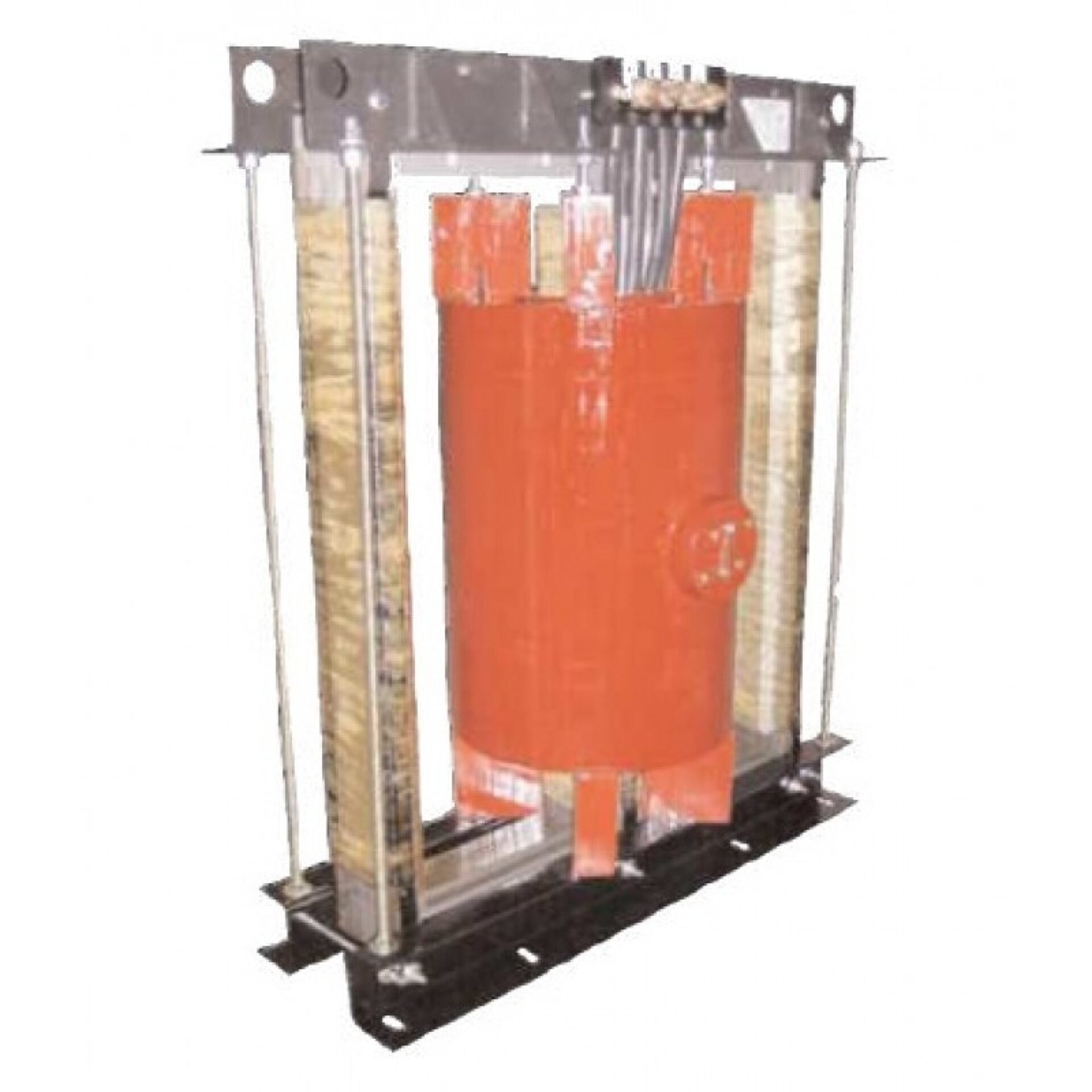

Model CPTD5-95-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 95 kV BIL
Introducing the Model CPTD5-95-375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of industrial and utility applications., a global leader in electrical equipment and power systems, this transformer exemplifies reliability, efficiency, and advanced engineering. With a power rating of 375 kVA and a voltage rating of 95 kV BIL, it is engineered to deliver consistent performance in medium voltage environments, ensuring the stability and safety of your electrical infrastructure.
Overview
Introducing the Model CPTD5-95-375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of industrial and utility applications., a global leader in electrical equipment and power systems, this transformer exemplifies reliability, efficiency, and advanced engineering. With a power rating of 375 kVA and a voltage rating of 95 kV BIL, it is engineered to deliver consistent performance in medium voltage environments, ensuring the stability and safety of your electrical infrastructure.
Produced by Spectrum Industries under the trusted brand, this transformer incorporates innovative features that enhance operational safety and longevity. Its robust construction and precision design allow for seamless integration into various control and power distribution systems. Whether used in substations, industrial plants, or other high-voltage applications, the Model CPTD5-95-375 provides dependable service, reducing downtime and maintenance costs.
Designed with user convenience in mind, this transformer offers straightforward installation and maintenance procedures, backed by ’s reputation for quality and durability. Its advanced insulation and cooling systems ensure optimal performance even under demanding conditions. Overall, the Spectrum Industries Model CPTD5-95-375 Medium Voltage Control Power Transformer is an excellent choice for professionals seeking a reliable, efficient, and durable power transformation solution backed by ’s extensive expertise in electrical engineering.
Request a Quote for Model CPTD5-95-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Level
- 15 kV Class, 95 kV BIL
- Thermal Rating
- 37.5 kVA at 30 C ambient; 32.2 kVA at 55 C ambient, 80 C rise
- Terminals
- H.V. terminals are 3/8-16 brass inserts. L.V. terminals are 1/2-13 brass studs.
- Winding Construction
- Windings encapsulated in epoxy resin; assembly varnish coated
- Mounting Base
- Steel mounting base
- Cooling / Fuse Configuration
- Self cooled. Available as unfused only.
- Tap Configuration
- Catalog suffix A = 1 +/-7.5% tap; suffix B = 2 +/-2.5% taps
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 37.5 | 20E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 8400 | 120 | 37.5 | 20E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 12000 | 120 | 37.5 | 10E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 12470 | 120 | 37.5 | 10E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 13200 | 120 | 37.5 | 10E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 13800 | 120 | 37.5 | 10E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
| 14400 | 120 | 37.5 | 10E | Suffix A: 1 +/-7.5% tap; Suffix B: 2 +/-2.5% taps |
