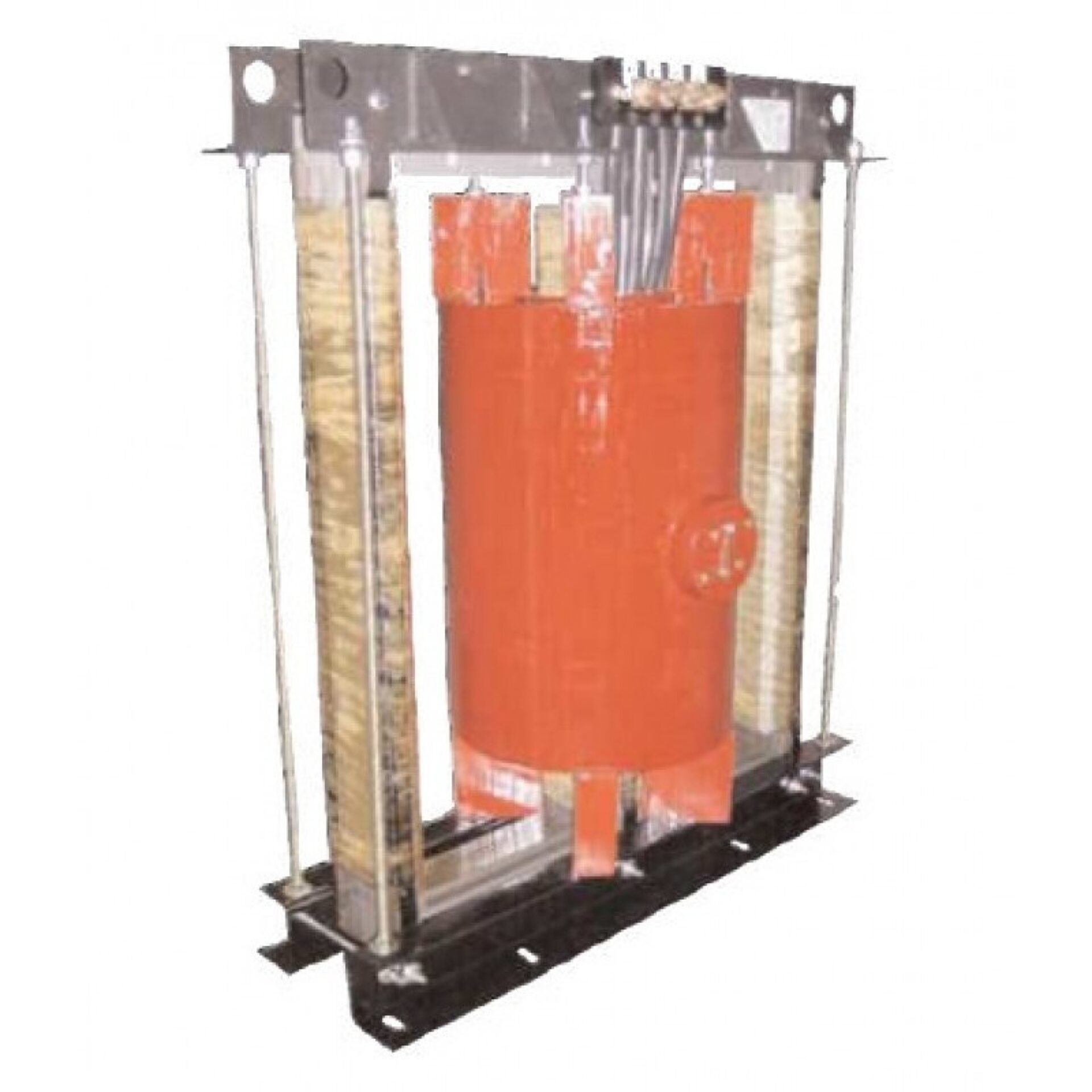

Model CPTD5-95-50 Medium Voltage Control Power Transformer - 50 kVA - 95 kV BIL
Introducing the Model CPTD5-95-50 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies durability, efficiency, and reliability. With a power capacity of 50 kVA and a voltage rating of 95 kV BIL, it is engineered to provide stable control power in medium voltage applications, ensuring optimal performance and safety.
Overview
Introducing the Model CPTD5-95-50 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies durability, efficiency, and reliability. With a power capacity of 50 kVA and a voltage rating of 95 kV BIL, it is engineered to provide stable control power in medium voltage applications, ensuring optimal performance and safety.
Produced by Spectrum Industries, a trusted name in electrical equipment manufacturing, this transformer combines advanced engineering with robust construction. Its design emphasizes safety, ease of installation, and long-term operational stability, making it suitable for various industrial, utility, and commercial environments. Whether used in control circuits, switching stations, or other medium voltage systems, the Model CPTD5-95-50 delivers consistent and dependable power conversion.
This product features high-quality materials and manufacturing standards established by, ensuring it can withstand the rigors of demanding operational conditions. Its compact design allows for flexible deployment within existing infrastructure, while its reliable performance minimizes downtime and maintenance costs. For organizations seeking a trusted, efficient, and durable medium voltage control power transformer, the Model CPTD5-95-50 from Spectrum Industries offers an excellent solution backed by ’s renowned engineering excellence.
Request a Quote for Model CPTD5-95-50 Medium Voltage Control Power Transformer - 50 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 750 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level
- 15 kV class, 95 kV BIL
- Thermal Rating
- 50 kVA at 30 C ambient; 42.9 kVA at 55 C ambient, 80 C rise
- Winding Construction
- Windings encapsulated in epoxy resin; assembly varnish coated
- Terminals
- Primary terminals are 3/8-16 inserts; secondary terminals are 1/2-13 brass studs
- Mounting Base
- Steel mounting base
- Fuse Configuration
- Available as unfused only
- Tap Configuration
- Catalog suffix A = (1) +/- 7.5% taps; suffix B = (2) +/- 2.5% taps, supplied on primary side
- Turns Ratio (Primary:Secondary)
- 7200V=60:1; 8400V=70:1; 12000V=100:1; 12470V=104:1; 13200V=110:1; 13800V=115:1; 14400V=120:1
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 50 | 25E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 8400 | 120 | 50 | 25E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 12000 | 120 | 50 | 15E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 12470 | 120 | 50 | 15E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 13200 | 120 | 50 | 10E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 13800 | 120 | 50 | 10E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
| 14400 | 120 | 50 | 10E | Suffix A: (1) +/- 7.5% taps; Suffix B: (2) +/- 2.5% taps |
