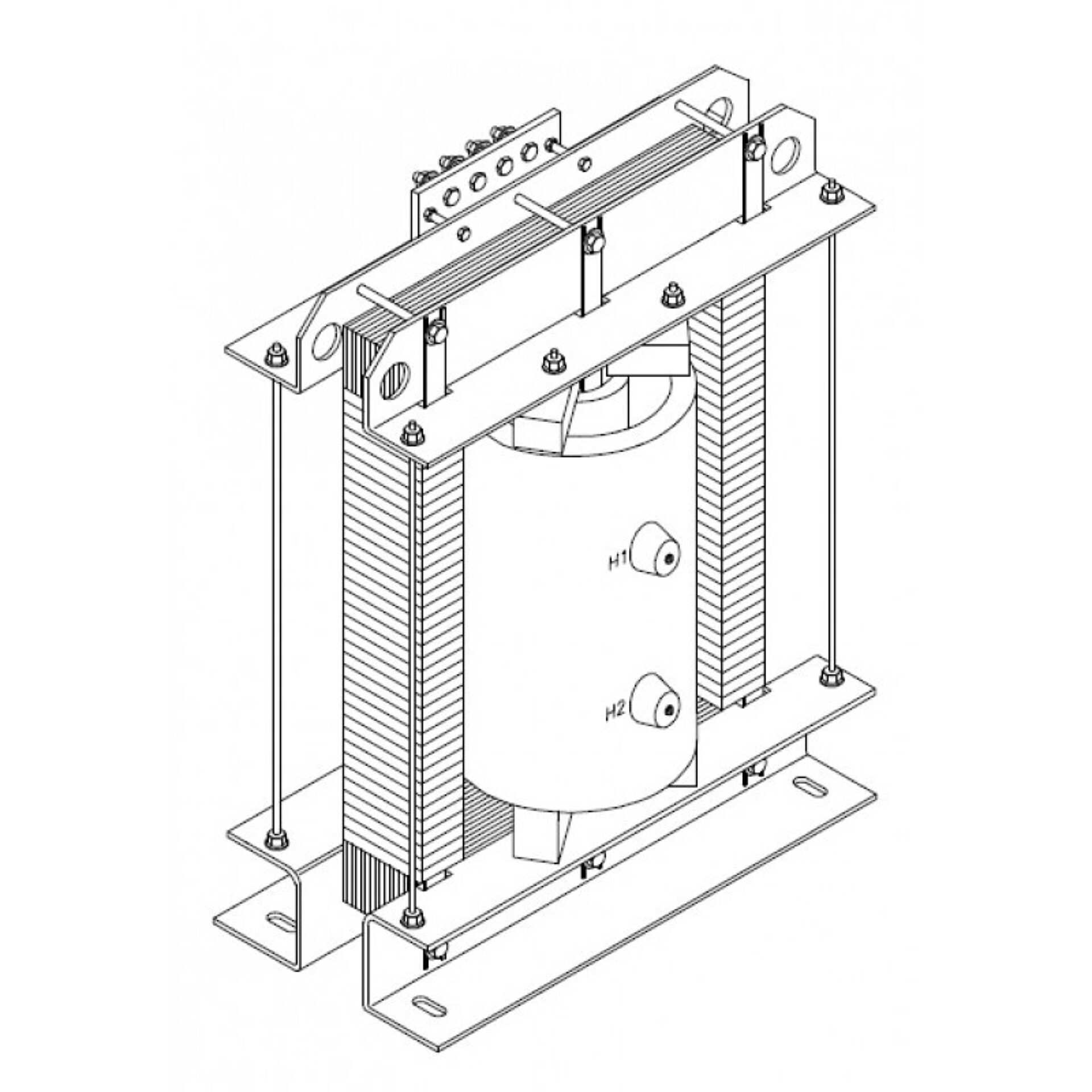

Model CPTD5-95-75 Medium Voltage Control Power Transformer - 75 kVA - 95 kV BIL
Introducing the Model CPTD5-95-75 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this transformer exemplifies reliability, efficiency, and durability. Engineered to deliver consistent performance in control and power applications, it is an essential component for ensuring stable voltage regulation and efficient power distribution.
Overview
Introducing the Model CPTD5-95-75 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this transformer exemplifies reliability, efficiency, and durability. Engineered to deliver consistent performance in control and power applications, it is an essential component for ensuring stable voltage regulation and efficient power distribution.
a company renowned for its commitment to technological excellence and engineering precision, the Model CPTD5-95-75 offers a robust 75 kVA power capacity with a primary voltage rating of 95 kV. Its design emphasizes safety and operational stability, making it suitable for a variety of industrial and utility environments. The transformer’s construction adheres to strict quality standards, ensuring long-term performance and minimal maintenance requirements.
Spectrum Industries proudly offers this -produced transformer as part of their extensive portfolio of electrical solutions. With a focus on quality and customer satisfaction, Spectrum Industries provides products that are built to meet industry standards and customer specifications. Whether for new installations or upgrades, the Model CPTD5-95-75 is an excellent choice for professionals seeking a dependable medium voltage control power transformer that combines advanced engineering with proven performance.
Request a Quote for Model CPTD5-95-75 Medium Voltage Control Power Transformer - 75 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 900 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation level
- 5 kV, 15 kV Class, 60 kV & 95 kV BIL
- Thermal rating (30C ambient)
- 75 kVA at 30C ambient, 80C rise
- Thermal rating (55C ambient)
- 64.3 kVA at 55C ambient, 80C rise
- H.V. terminals
- 3/8-16 brass insert
- L.V. terminals
- 0.25 thk. x 1.50 wide copper pads with a 0.56 dia. mtg. hole
- Windings
- Encapsulated in epoxy resin
- Mounting base
- Steel
- Assembly
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Tap options
- Optional 1 +/-7.5% taps (suffix A) or 2 +/-2.5% taps (suffix B) available on catalog number
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating |
|---|---|---|---|
| 7200 | 120 | 75 | 30E |
| 8400 | 120 | 75 | 30E |
| 12000 | 120 | 75 | 20E |
| 12470 | 120 | 75 | 20E |
| 13800 | 120 | 75 | 20E |
| 14400 | 120 | 75 | 20E |
