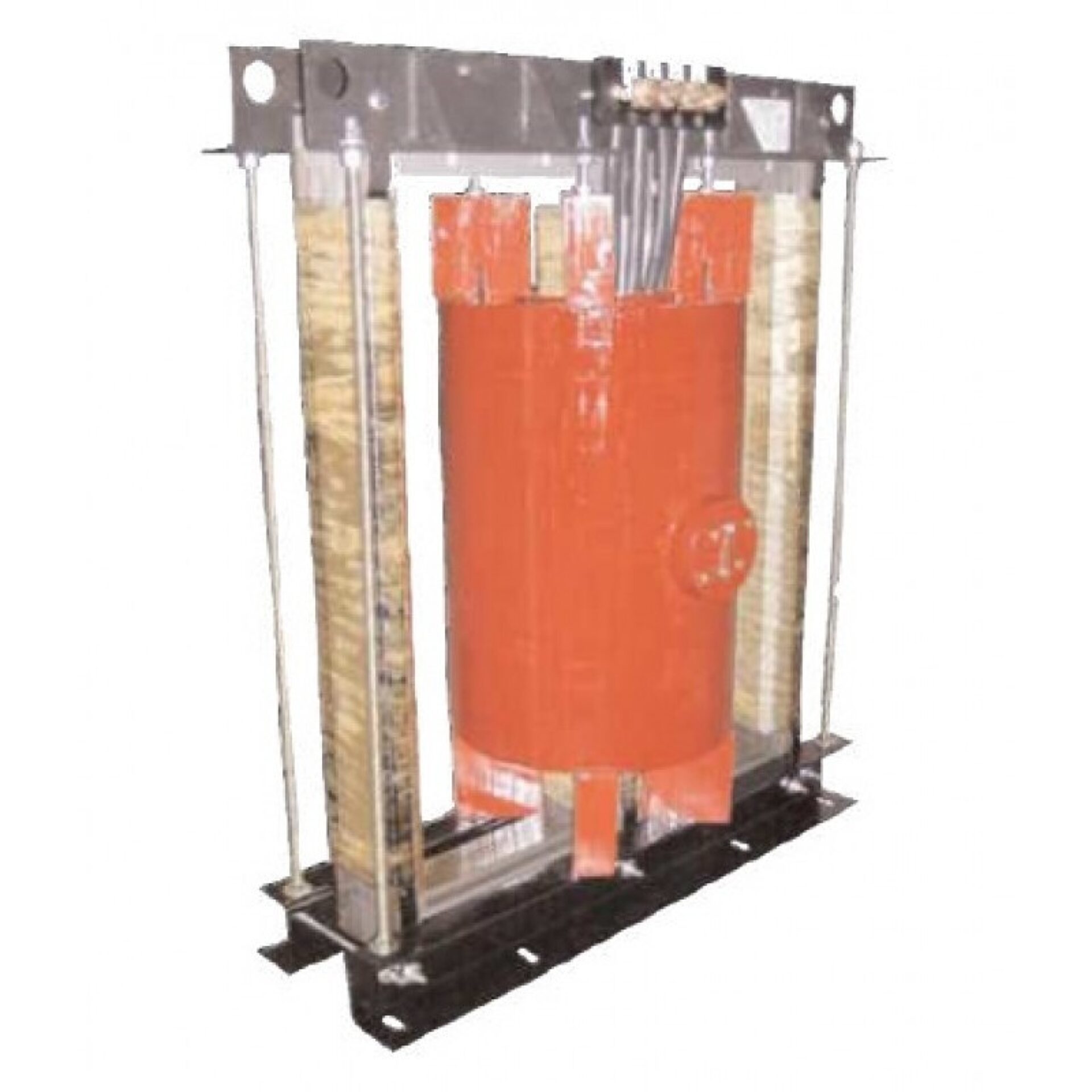

Model CPTD7-150-25 Medium Voltage Control Power Transformer - 25 kVA - 150 kV BIL
Introducing the Model CPTD7-150/25 Medium Voltage Control Power Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable and efficient power conversion for a variety of industrial and commercial applications. With a power rating of 25 kVA and a primary voltage of 150 kV BIL, the CPTD7-150/25 ensures consistent performance even in challenging environments.
Overview
Introducing the Model CPTD7-150/25 Medium Voltage Control Power Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this transformer is designed to deliver reliable and efficient power conversion for a variety of industrial and commercial applications. With a power rating of 25 kVA and a primary voltage of 150 kV BIL, the CPTD7-150/25 ensures consistent performance even in challenging environments.
This transformer embodies ’s commitment to excellence, combining advanced engineering with durable construction to provide long-lasting service. Its compact design makes it suitable for installations where space is limited, while its robust build ensures resilience against electrical surges and environmental factors. The CPTD7-150/25 is ideal for controlling and distributing power in medium-voltage systems, offering precise voltage regulation and minimal energy loss.
Spectrum Industries has carefully engineered this product to meet industry standards for safety, efficiency, and reliability. Whether used in utility substations, industrial plants, or other critical infrastructure, this transformer guarantees stable operation and peace of mind. By choosing the Model CPTD7-150/25, you are investing in a trusted solution that combines ’s technological expertise with Spectrum Industries’ dedication to quality, ensuring optimal performance for your power management needs.
Request a Quote for Model CPTD7-150-25 Medium Voltage Control Power Transformer - 25 kVA - 150 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 750 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Class
- 34.5 kV, 150 kV BIL full wave
- Thermal Rating (25 kVA)
- 25 kVA at 30 C ambient; 21.5 kVA at 55 C ambient; 80 C rise
- Terminals
- Primary: 3/8-16 inserts; Secondary: 1/2-13 brass studs
- Winding Construction
- Encapsulated in epoxy resin
- Mounting Base Material
- Steel
- Assembly Finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Tap Configuration
- Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps (primary side)
Specification Table
| Primary V | Secondary V | kVA Rating | Taps Config |
|---|---|---|---|
| 19920 | 120 | 25 | Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps |
| 27600 | 120 | 25 | Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps |
| 28800 | 120 | 25 | Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps |
| 34500 | 120 | 25 | Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps |
