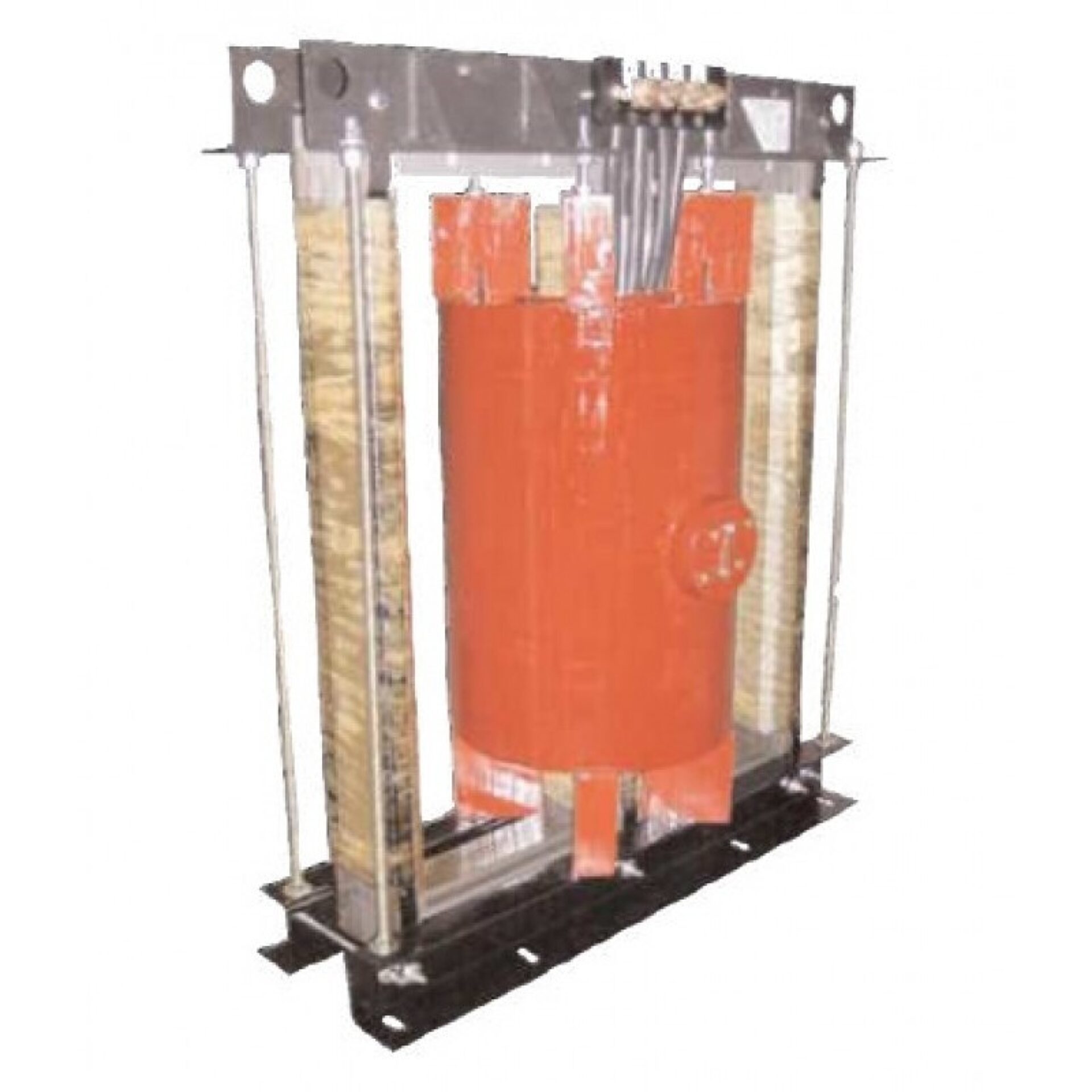

Model CPTD7-150-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 150 kV BIL
Introducing the Model CPTD7-150/375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of industrial and utility applications., a globally recognized leader in electrical equipment and power systems, this transformer exemplifies reliability, efficiency, and durability. Engineered to provide precise voltage regulation and dependable performance, it is ideal for controlling and distributing power in medium-voltage environments.
Overview
Introducing the Model CPTD7-150/375 Medium Voltage Control Power Transformer, a high-quality solution designed to meet the demanding needs of industrial and utility applications., a globally recognized leader in electrical equipment and power systems, this transformer exemplifies reliability, efficiency, and durability. Engineered to provide precise voltage regulation and dependable performance, it is ideal for controlling and distributing power in medium-voltage environments.
Produced by Spectrum Industries, this transformer boasts a robust construction and advanced design features that ensure long-term operational stability. With a power rating of 375 kVA and a primary voltage of 150 kV, it is well-suited for a variety of applications requiring efficient power transfer and control. Its compact size and ease of installation make it a versatile choice for integration into existing electrical systems, while its high-quality components ensure minimal maintenance and maximum uptime.
The Model CPTD7-150/375 is built to meet rigorous industry standards, offering peace of mind through its proven performance and safety features. Whether used in power generation, distribution, or industrial automation, this transformer delivers consistent, reliable power management. With the backing of ’s trusted engineering and Spectrum Industries’ commitment to quality, this product stands out as a dependable solution for medium-voltage control power needs.
Request a Quote for Model CPTD7-150-37.5 Medium Voltage Control Power Transformer - 37.5 kVA - 150 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 750 lbs
- Mounting
- Indoor
- Application
- Switchgear
- Standards
- NEC
- Insulation level (system class)
- 34.5 kV, 150 kV BIL full wave
- Thermal rating (37.5 kVA model)
- 37.5 kVA at 30°C ambient; 32.2 kVA at 55°C ambient; 80°C rise
- Primary terminals
- 3/8-16 inserts
- Secondary terminals
- 1/2-13 brass studs
- Primary tap options
- Suffix A: +/-7.5% taps; Suffix B: +/-2.5% taps
- Winding construction
- Encapsulated in epoxy resin
- Mounting base
- Steel
- Assembly finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Taps Config |
|---|---|---|---|
| 19920 | 120 | 37.5 | +/-7.5% (suffix A) |
| 19920 | 120 | 37.5 | +/-2.5% (suffix B) |
| 27600 | 120 | 37.5 | +/-7.5% (suffix A) |
| 27600 | 120 | 37.5 | +/-2.5% (suffix B) |
| 28800 | 120 | 37.5 | +/-7.5% (suffix A) |
| 28800 | 120 | 37.5 | +/-2.5% (suffix B) |
| 34500 | 120 | 37.5 | +/-7.5% (suffix A) |
| 34500 | 120 | 37.5 | +/-2.5% (suffix B) |
