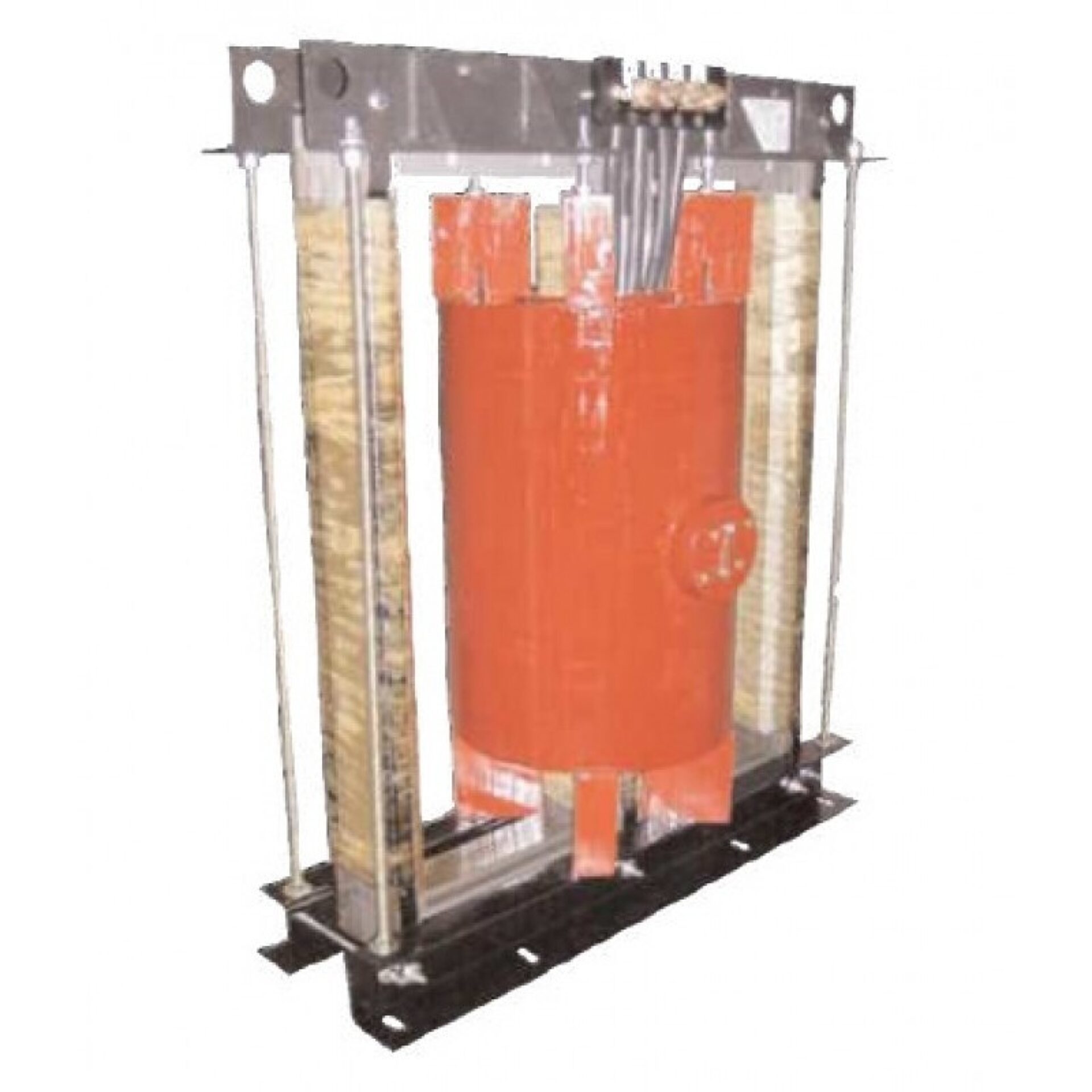

Model CPTD7-150-50 Medium Voltage Control Power Transformer - 50 kVA - 150 kV BIL
Introducing the Model CPTD7-150-50 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of industrial and utility applications. and brought to you by Spectrum Industries, this transformer offers exceptional performance with a power rating of 50 kVA and a voltage rating of 150 kV BIL. Its robust construction and high-quality components ensure durability and long-lasting operation in various environments.
Overview
Introducing the Model CPTD7-150-50 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of industrial and utility applications. and brought to you by Spectrum Industries, this transformer offers exceptional performance with a power rating of 50 kVA and a voltage rating of 150 kV BIL. Its robust construction and high-quality components ensure durability and long-lasting operation in various environments.
The CPTD7-150-50 transformer is engineered to provide precise voltage regulation and stable power distribution, making it an ideal choice for controlling and protecting electrical systems. Its medium voltage capabilities allow it to seamlessly integrate into existing infrastructure, enhancing system efficiency and safety. With a focus on quality and reliability, this transformer adheres to strict industry standards, ensuring consistent performance over its lifespan.
Designed with ease of installation and maintenance in mind, the Model CPTD7-150-50 features a compact form factor and user-friendly design. Whether used in industrial plants, substations, or other electrical facilities, this transformer delivers dependable power conversion and control. Trust in ’s reputation for innovation and Spectrum Industries’ commitment to excellence to provide you with a product that meets your operational needs with confidence.
Request a Quote for Model CPTD7-150-50 Medium Voltage Control Power Transformer - 50 kVA - 150 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 750 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Terminals
- Primary: 3/8-16 inserts; Secondary: 1/2-13 brass studs
- Windings
- Encapsulated in epoxy resin
- Mounting base material
- Steel
- Assembly finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Insulation class
- 34.5 kV class, 150 kV BIL full wave
- Thermal rating at 55C ambient
- 42.9 kVA at 55C ambient, 80C rise
Specification Table
| Primary V | Secondary V | kVA Rating | Taps Config |
|---|---|---|---|
| 19920 | 120 | 50 | ±7.5% |
| 19920 | 120 | 50 | ±2.5% |
| 27600 | 120 | 50 | ±7.5% |
| 27600 | 120 | 50 | ±2.5% |
| 28800 | 120 | 50 | ±7.5% |
| 28800 | 120 | 50 | ±2.5% |
| 34500 | 120 | 50 | ±7.5% |
| 34500 | 120 | 50 | ±2.5% |
