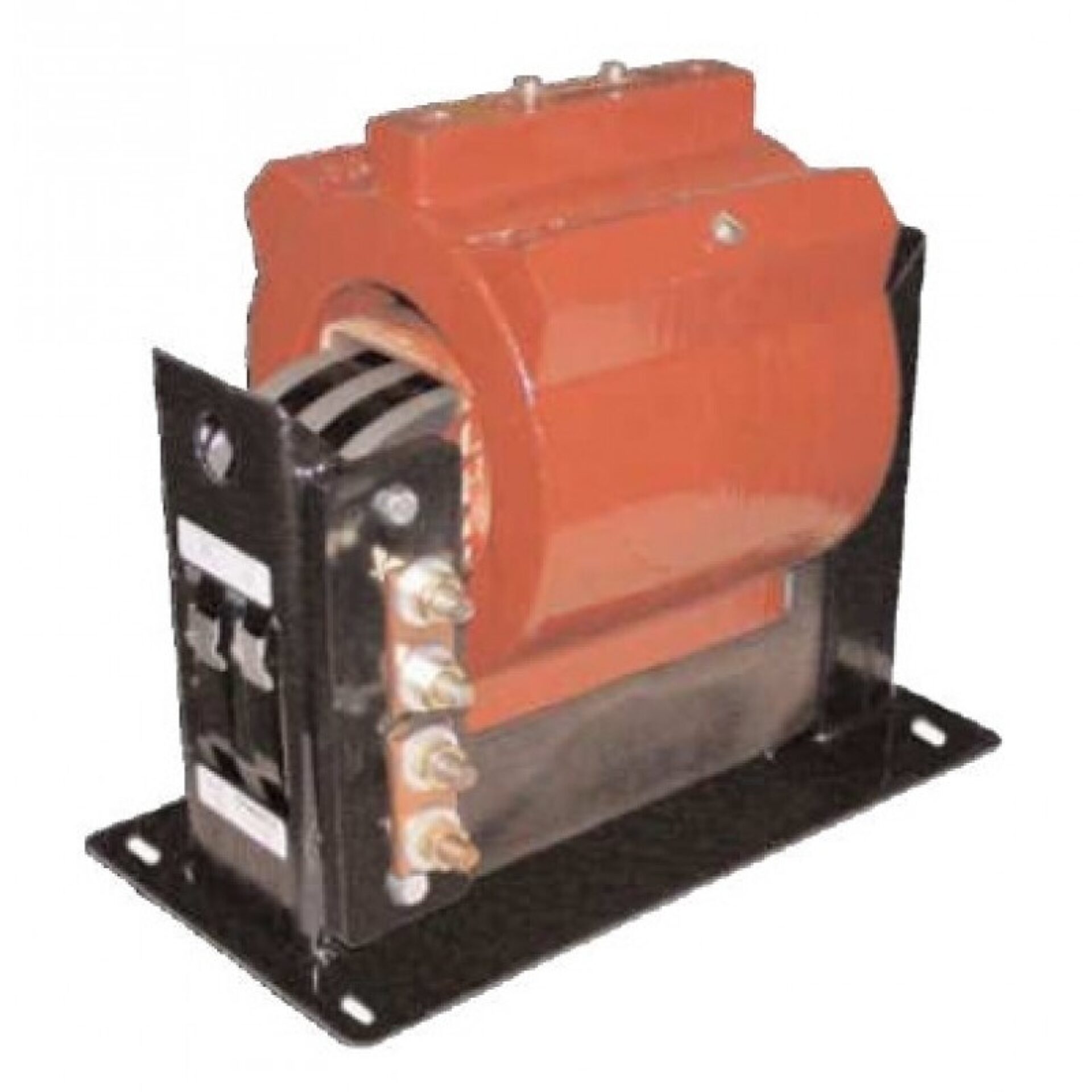

Model CPTS3-60-10 Medium Voltage Control Power Transformer - 10 kVA - 60 kV BIL
Introducing the Model CPTS3-60-10 Medium Voltage Control Power Transformer, a high-quality product. Designed to meet the demanding needs of modern electrical systems, this transformer offers reliable power conversion and distribution for various industrial and commercial applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, the CPTS3-60-10 ensures efficient and safe operation in medium voltage environments.
Overview
Introducing the Model CPTS3-60-10 Medium Voltage Control Power Transformer, a high-quality product. Designed to meet the demanding needs of modern electrical systems, this transformer offers reliable power conversion and distribution for various industrial and commercial applications. With a power rating of 10 kVA and a voltage rating of 60 kV BIL, the CPTS3-60-10 ensures efficient and safe operation in medium voltage environments.
a global leader in electrical equipment and solutions, this transformer benefits from decades of engineering excellence and innovative technology. Its robust construction and precise design make it an ideal choice for control circuits, instrumentation, and other critical applications where dependable power supply is essential. The CPTS3-60-10 is engineered to deliver consistent performance, minimize downtime, and enhance overall system reliability.
Spectrum Industries, renowned for its commitment to quality and customer satisfaction, offers this transformer as part of its extensive portfolio of electrical products. Whether used in new installations or as a replacement component, the Model CPTS3-60-10 provides peace of mind through its durable build and proven performance. Trust in ’s legacy of excellence combined with Spectrum Industries’ dedication to quality to ensure your electrical systems operate smoothly and efficiently.
Request a Quote for Model CPTS3-60-10 Medium Voltage Control Power Transformer - 10 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 250 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Level
- 5 kV, 60 kV BIL full wave
- Thermal Rating
- 10 kVA at 30 C ambient; 8.6 kVA at 55 C ambient
- Primary Terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- 1/2-13 brass studs with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Tap Configuration
- 1 +/- 7.5% or 2 +/- 2.5% taps above and below nominal voltage on the primary winding
- Winding Construction
- Windings encapsulated in epoxy resin
- Mounting Base
- Steel mounting base, varnish coated assembly
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 10 | 15E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps |
| 4160 | 120 | 10 | 7E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps |
| 4800 | 120 | 10 | 7E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps |
