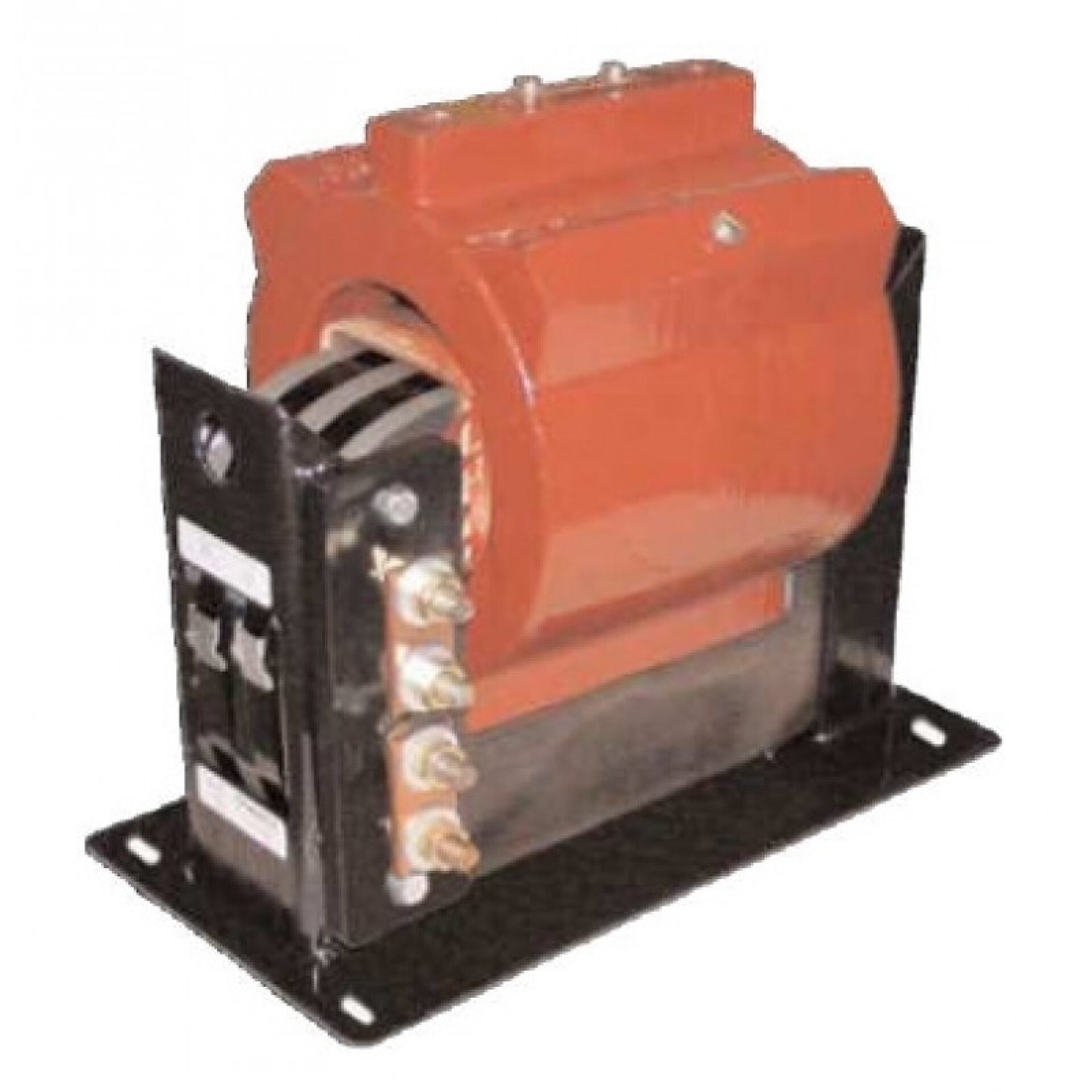

Model CPTS3-60-15 Medium Voltage Control Power Transformer - 15 kVA - 60 kV BIL
Introducing the Model CPTS3-60-15 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies quality, durability, and precision engineering. It is engineered specifically for medium voltage applications, providing a stable power supply to control circuits and instrumentation in various industrial and commercial environments.
Overview
Introducing the Model CPTS3-60-15 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and innovation, this transformer exemplifies quality, durability, and precision engineering. It is engineered specifically for medium voltage applications, providing a stable power supply to control circuits and instrumentation in various industrial and commercial environments.
a company renowned for its commitment to technological advancement and high standards, the Model CPTS3-60-15 offers exceptional performance with a 15 kVA power rating and a 60 kV BIL (Basic Insulation Level). Its robust construction ensures long-lasting operation even in challenging conditions, while its compact design allows for easy installation and integration into existing electrical systems. This transformer is ideal for use in control panels, switchgear, and other medium voltage applications where reliable power conversion and distribution are critical.
With its precise voltage regulation and high-quality components, the Spectrum Industries Model CPTS3-60-15 ensures consistent and safe operation, minimizing downtime and maintenance costs. Whether in industrial automation, utility infrastructure, or commercial projects, this transformer provides a dependable power solution backed by ’s legacy of innovation and excellence.
Request a Quote for Model CPTS3-60-15 Medium Voltage Control Power Transformer - 15 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 290 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Thermal rating
- 15 kVA at 30°C ambient / 12.9 kVA at 55°C ambient
- Insulation level
- 5 kV class, 60 kV BIL full wave (CPTS3)
- Primary terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary terminals
- 1/2-13 brass studs with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Taps
- 1 ± 7 1/2% or 2 ± 2 1/2% taps above and below nominal voltage on primary winding
- Windings
- Encapsulated in epoxy resin
- Mounting base
- Steel
- Assembly
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
- Fuse rating basis
- Fuse ratings based on NEC transformer overcurrent protection recommendations; specific applications may require other ratings
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 15 | 15E | 1 ± 7 1/2% (suffix A) or 2 ± 2 1/2% (suffix B) taps above/below nominal |
| 4160 | 120 | 15 | 10E | 1 ± 7 1/2% (suffix A) or 2 ± 2 1/2% (suffix B) taps above/below nominal |
| 4800 | 120 | 15 | 10E | 1 ± 7 1/2% (suffix A) or 2 ± 2 1/2% (suffix B) taps above/below nominal |
