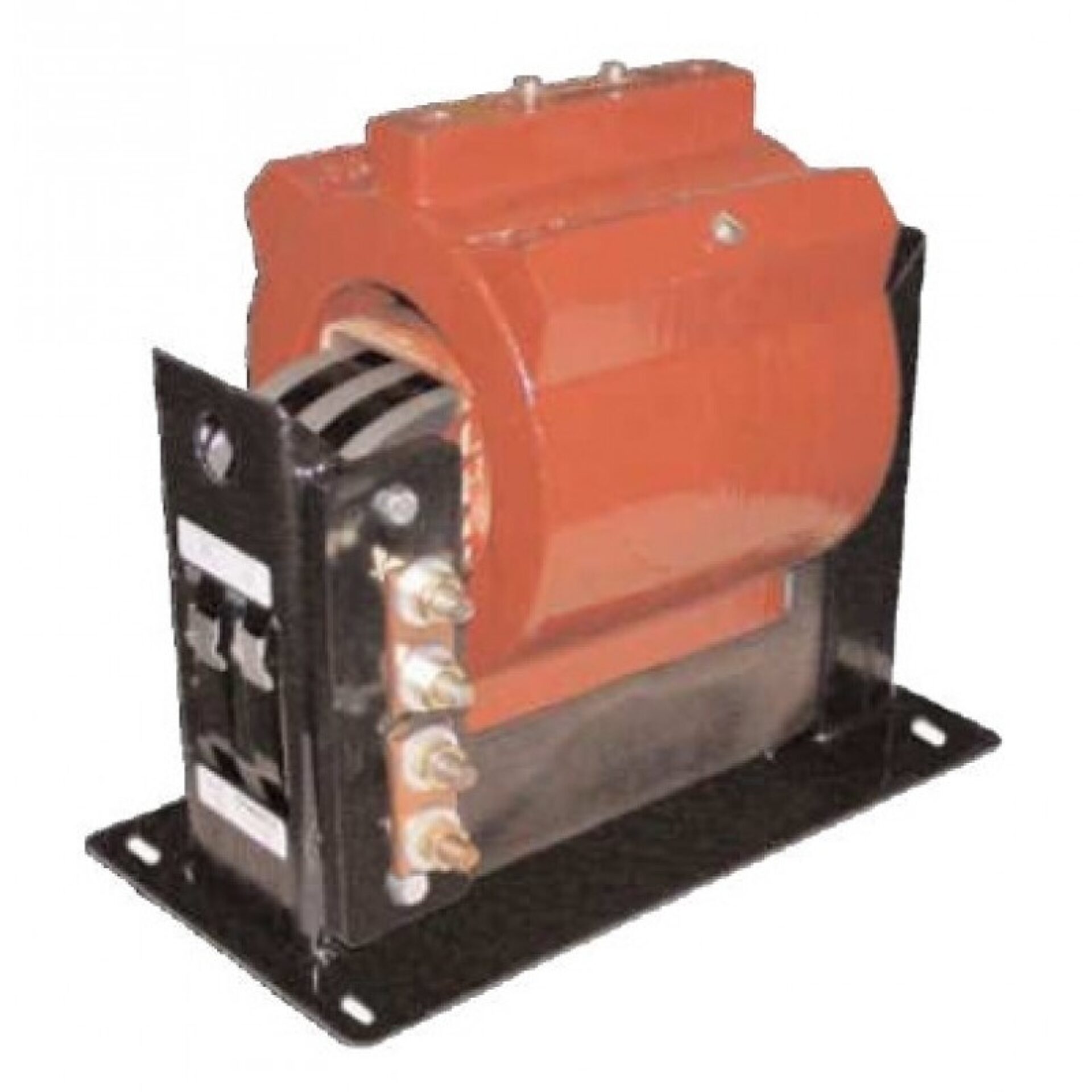

Model CPTS3-60-5 Medium Voltage Control Power Transformer - 5 kVA - 60 kV BIL
Introducing the Model CPTS3-60-5 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of industrial and electrical applications, this transformer offers reliable performance and efficient power management for medium voltage systems. With a capacity of 5 kVA and a voltage rating of 60 kV, it is ideally suited for control circuits, instrumentation, and other auxiliary power requirements within complex electrical setups.
Overview
Introducing the Model CPTS3-60-5 Medium Voltage Control Power Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of industrial and electrical applications, this transformer offers reliable performance and efficient power management for medium voltage systems. With a capacity of 5 kVA and a voltage rating of 60 kV, it is ideally suited for control circuits, instrumentation, and other auxiliary power requirements within complex electrical setups.
a globally recognized leader in electrical equipment and technology, this transformer embodies the company's commitment to durability, safety, and innovation. Spectrum Industries has carefully selected and integrated ’s advanced manufacturing standards to ensure that each unit delivers consistent, long-lasting performance. The Model CPTS3-60-5 features robust construction, ensuring resistance to environmental factors and operational stresses, making it suitable for both indoor and outdoor installations.
This transformer’s compact design, combined with its dependable performance, makes it an excellent choice for various industrial applications where stable and efficient power distribution is critical. Whether you are upgrading existing systems or designing new electrical infrastructure, the Model CPTS3-60-5 from Spectrum Industries provides a trusted, high-quality solution backed by ’s legacy of excellence in electrical engineering.
Request a Quote for Model CPTS3-60-5 Medium Voltage Control Power Transformer - 5 kVA - 60 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 165 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Thermal Rating
- 5 kVA at 30 °C ambient; 4.3 kVA at 55 °C ambient
- Voltage Class
- 5 kV
- Primary Taps
- 1 ± 7½% or 2 ± 2½%
- Winding Encapsulation
- Epoxy resin
- Fusing
- Unfused only
- Primary Terminals
- 1/4-20 brass screws
- Secondary Terminals
- 1/2-13 brass studs
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 2400 | 120 | 5 | 7E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) primary taps above/below nominal |
| 4160 | 120 | 5 | 5E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) primary taps above/below nominal |
| 4800 | 120 | 5 | 5E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) primary taps above/below nominal |
