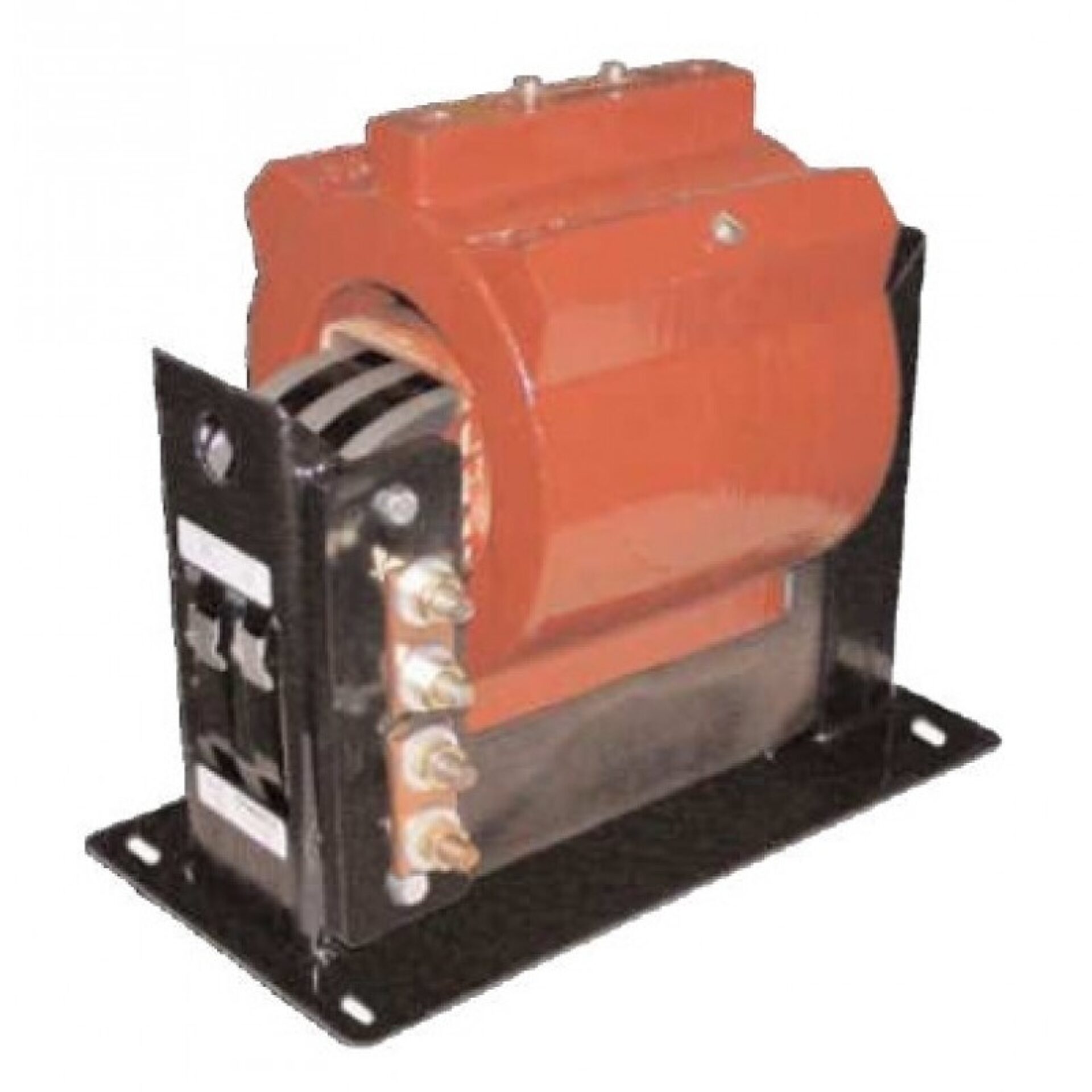

Model CPTS5-95-10 Medium Voltage Control Power Transformer - 10 kVA - 95 kV BIL
Introducing the Model CPTS5-95-10 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and technology, this transformer exemplifies quality, durability, and precision engineering. With a power rating of 10 kVA and a voltage rating of 95 kV BIL, the CPTS5-95-10 is engineered to provide stable and consistent power transfer in various industrial and utility applications.
Overview
Introducing the Model CPTS5-95-10 Medium Voltage Control Power Transformer, a reliable and efficient solution designed to meet the demanding needs of modern electrical systems., a global leader in electrical equipment and technology, this transformer exemplifies quality, durability, and precision engineering. With a power rating of 10 kVA and a voltage rating of 95 kV BIL, the CPTS5-95-10 is engineered to provide stable and consistent power transfer in various industrial and utility applications.
and distributed by Spectrum Industries, this transformer is built to ensure safety and performance in medium voltage environments. Its robust construction and advanced design features enable it to operate effectively under challenging conditions, making it an ideal choice for control circuits, instrumentation, and other critical electrical functions. The transformer’s compact size and ease of installation further enhance its appeal for a wide range of applications.
Spectrum Industries is proud to offer this high-quality product, which combines ’s innovative technology with our commitment to delivering reliable electrical solutions. Whether upgrading existing infrastructure or deploying new systems, the Model CPTS5-95-10 transformer provides peace of mind through its proven performance and adherence to industry standards. Trust Spectrum Industries and to supply the dependable equipment needed to keep your operations running smoothly and efficiently.
Request a Quote for Model CPTS5-95-10 Medium Voltage Control Power Transformer - 10 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 250 lbs
- Mounting
- Indoor
- Application
- Switchgear
- Thermal Rating (Derated)
- 8.6 kVA at 55 C ambient (base rating 10 kVA at 30 C ambient)
- Primary Terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- 1/2-13 brass studs with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Winding Construction
- Encapsulated in epoxy resin
- Mounting Base Material
- Steel
- Assembly Finish
- Varnish coated
- Fusing Option
- Available as unfused only
- Cooling
- Self cooled
- Insulation Class
- 15 kV class, 95 kV BIL full wave
- Primary Tap Configuration
- 1 x 7.5% or 2 x 2.5% taps above and below nominal voltage on primary winding; add suffix A to catalog number for 1 x 7.5% tap option
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 10 | 5E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 8400 | 120 | 10 | 5E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 12000 | 120 | 10 | 3E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 12470 | 120 | 10 | 3E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 13200 | 120 | 10 | 3E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 13800 | 120 | 10 | 3E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
| 14400 | 120 | 10 | 3E | 1 x 7.5% or 2 x 2.5% taps above/below nominal (suffix A = 1 x 7.5% taps) |
