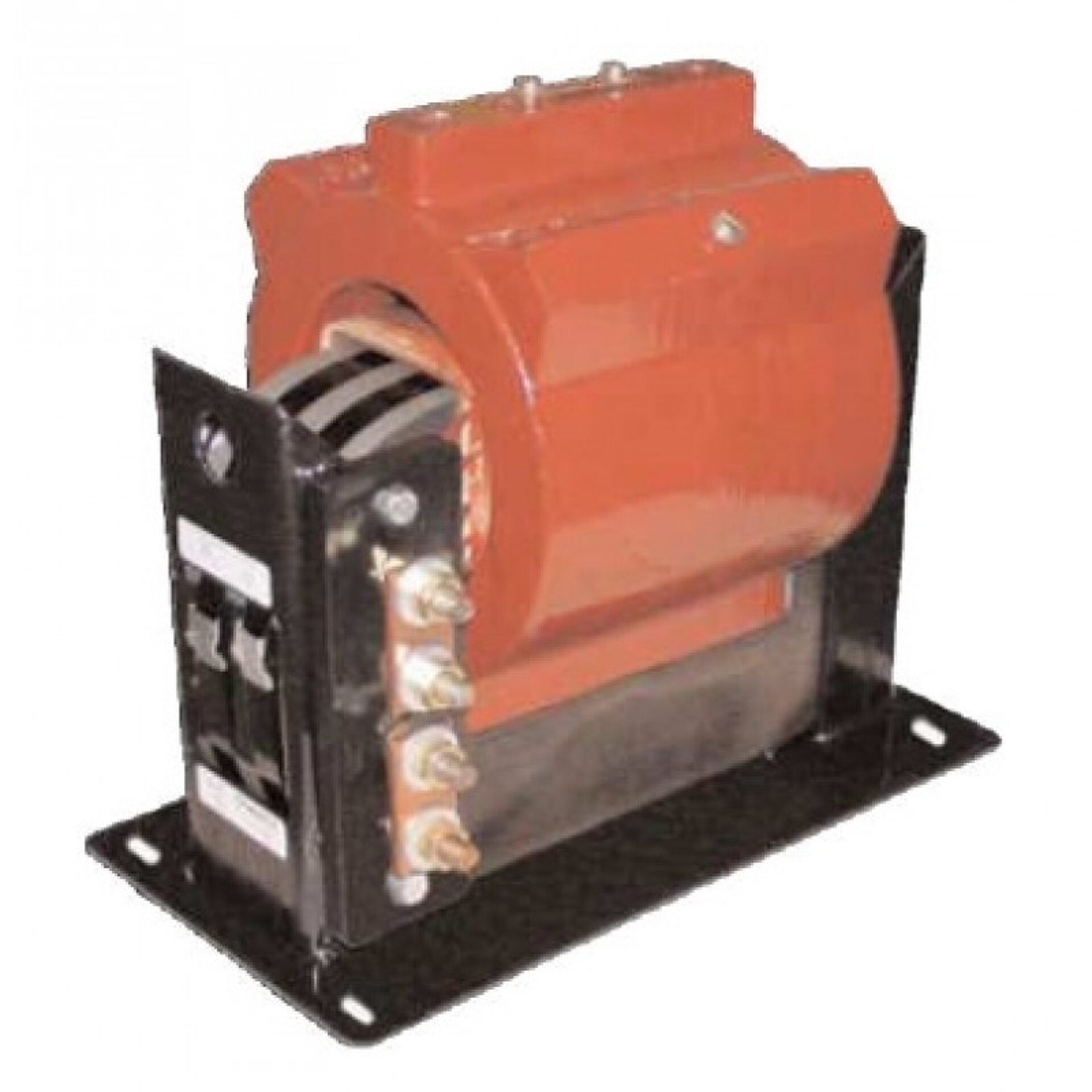

Model CPTS5-95-15 Medium Voltage Control Power Transformer - 15 kVA - 95 kV BIL
Introducing the Model CPTS5-95-15 Medium Voltage Control Power Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed to meet the demanding needs of electrical control systems, this transformer provides reliable power conversion and distribution for a variety of industrial applications. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it ensures efficient and stable operation within medium voltage environments.
Overview
Introducing the Model CPTS5-95-15 Medium Voltage Control Power Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed to meet the demanding needs of electrical control systems, this transformer provides reliable power conversion and distribution for a variety of industrial applications. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it ensures efficient and stable operation within medium voltage environments.
Spectrum Industries has a longstanding reputation for producing durable and precise electrical components, and this transformer exemplifies their commitment to quality. Built with robust materials and advanced engineering, the CPTS5-95-15 offers excellent performance, safety, and longevity. Its compact design allows for easy installation in various settings, making it an ideal choice for utility, industrial, and commercial projects that require dependable control power.
a global leader in electrical equipment and technology, this transformer benefits from decades of innovation and expertise. It adheres to strict industry standards, ensuring compliance and peace of mind for engineers and technicians alike. Whether upgrading existing systems or designing new installations, the Model CPTS5-95-15 from Spectrum Industries provides a trusted, efficient, and reliable power solution for medium voltage control applications.
Request a Quote for Model CPTS5-95-15 Medium Voltage Control Power Transformer - 15 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Operating Temperature
- °C to 55°C
- Insulation BIL
- 95 kV
- Weight
- 290 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Thermal Rating
- 15 kVA at 30 C ambient; 12.9 kVA at 55 C ambient
- Insulation Class
- 15 kV
- Primary Terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary Terminals
- 1/2-13 brass studs with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Taps
- 1 +/- 7.5% or 2 +/- 2.5% taps above and below nominal voltage on the primary winding
- Windings
- Encapsulated in epoxy resin
- Mounting Base
- Steel
- Assembly Finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 15 | 7E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 8400 | 120 | 15 | 7E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 12000 | 120 | 15 | 5E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 12470 | 120 | 15 | 5E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 13200 | 120 | 15 | 5E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 13800 | 120 | 15 | 5E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
| 14400 | 120 | 15 | 5E | 1 +/- 7.5% (suffix A) or 2 +/- 2.5% (suffix B) taps above/below nominal |
