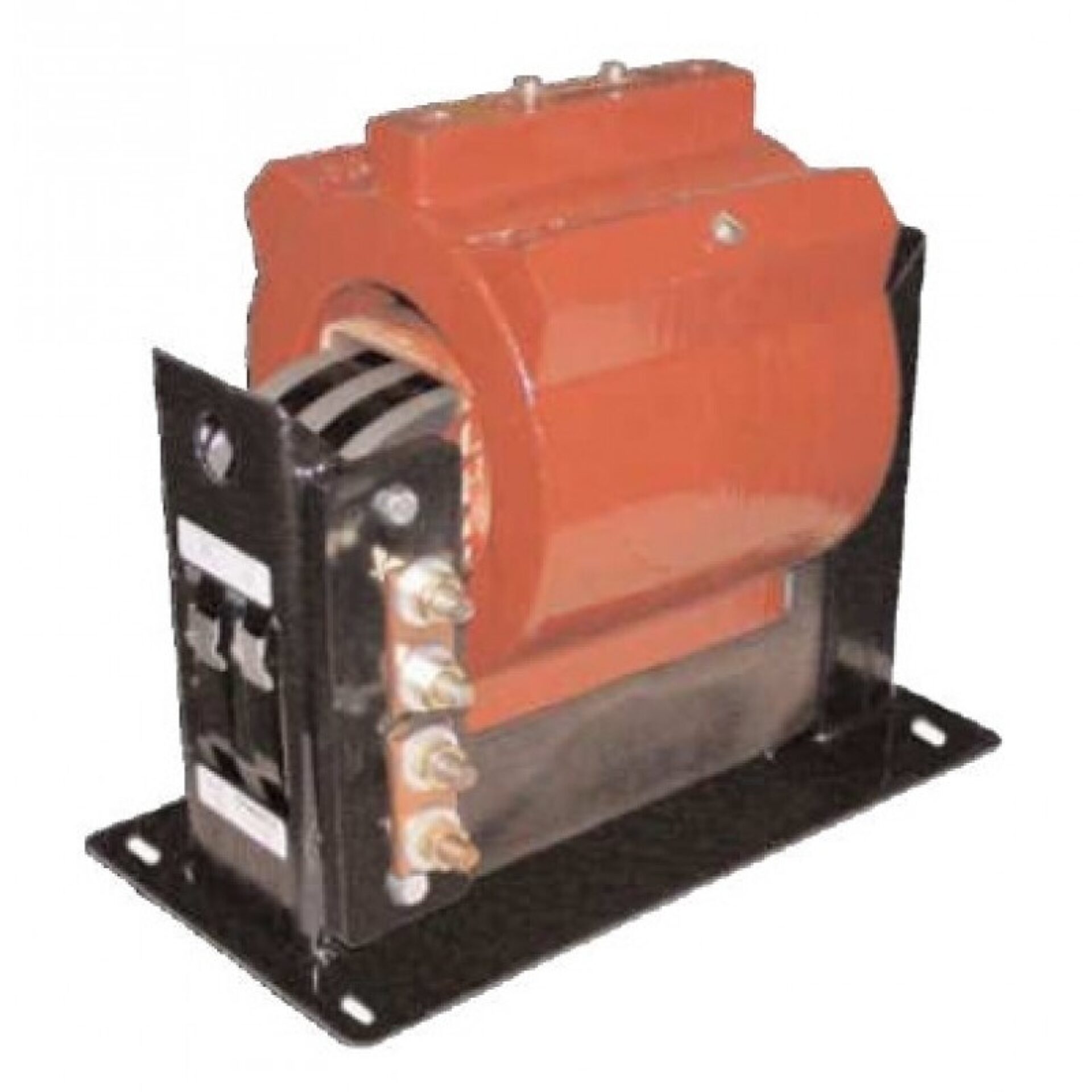

Model CPTS5-95-5 Medium Voltage Control Power Transformer - 5 kVA - 95 kV BIL
Introducing the Model CPTS5-95-5 Medium Voltage Control Power Transformer, a high-quality solution engineered to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment and technology, this transformer exemplifies reliability, efficiency, and safety. Designed specifically for control and power applications, the CPTS5-95-5 offers a robust 5 kVA power rating and is rated for 95 kV BIL (Basic Insulation Level), ensuring dependable performance even in challenging environments.
Overview
Introducing the Model CPTS5-95-5 Medium Voltage Control Power Transformer, a high-quality solution engineered to meet the demanding needs of modern electrical systems., a globally recognized leader in electrical equipment and technology, this transformer exemplifies reliability, efficiency, and safety. Designed specifically for control and power applications, the CPTS5-95-5 offers a robust 5 kVA power rating and is rated for 95 kV BIL (Basic Insulation Level), ensuring dependable performance even in challenging environments.
Produced by Spectrum Industries, this transformer integrates advanced engineering to deliver consistent voltage transformation and protection for medium voltage systems. Its compact design allows for easy installation and maintenance, making it an ideal choice for industrial, commercial, and utility applications. The product's durable construction and high-quality components ensure long service life, reducing downtime and operational costs.
Whether used in control panels, distribution networks, or other electrical infrastructure, the Model CPTS5-95-5 provides a reliable power source that enhances system stability and safety. Thanks to ’s commitment to innovation and Spectrum Industries’ expertise in manufacturing, this transformer stands out as a trusted solution for professionals seeking performance and peace of mind in their electrical systems.
Request a Quote for Model CPTS5-95-5 Medium Voltage Control Power Transformer - 5 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 165 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation level
- 15 kV class, 95 kV BIL full wave
- Thermal rating
- 5 kVA at 30°C ambient; 4.3 kVA at 55°C ambient
- Primary terminals
- Brass screws 1/4-20 with one flatwasher and starwasher
- Secondary terminals
- 1/2-13 brass studs with one flatwasher, lockwasher and two nuts, plus series/parallel links
- Tap configuration
- 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) taps above and below nominal voltage on the primary winding
- Winding construction
- Windings encapsulated in epoxy resin
- Mounting base
- Steel
- Assembly finish
- Varnish coated
- Fusing
- Available as unfused only
- Cooling
- Self cooled
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 5 | 3E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 8400 | 120 | 5 | 3E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 12000 | 120 | 5 | 2E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 12470 | 120 | 5 | 2E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 13200 | 120 | 5 | 2E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 13800 | 120 | 5 | 2E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
| 14400 | 120 | 5 | 2E | 1 ± 7.5% (suffix A) or 2 ± 2.5% (suffix B) |
