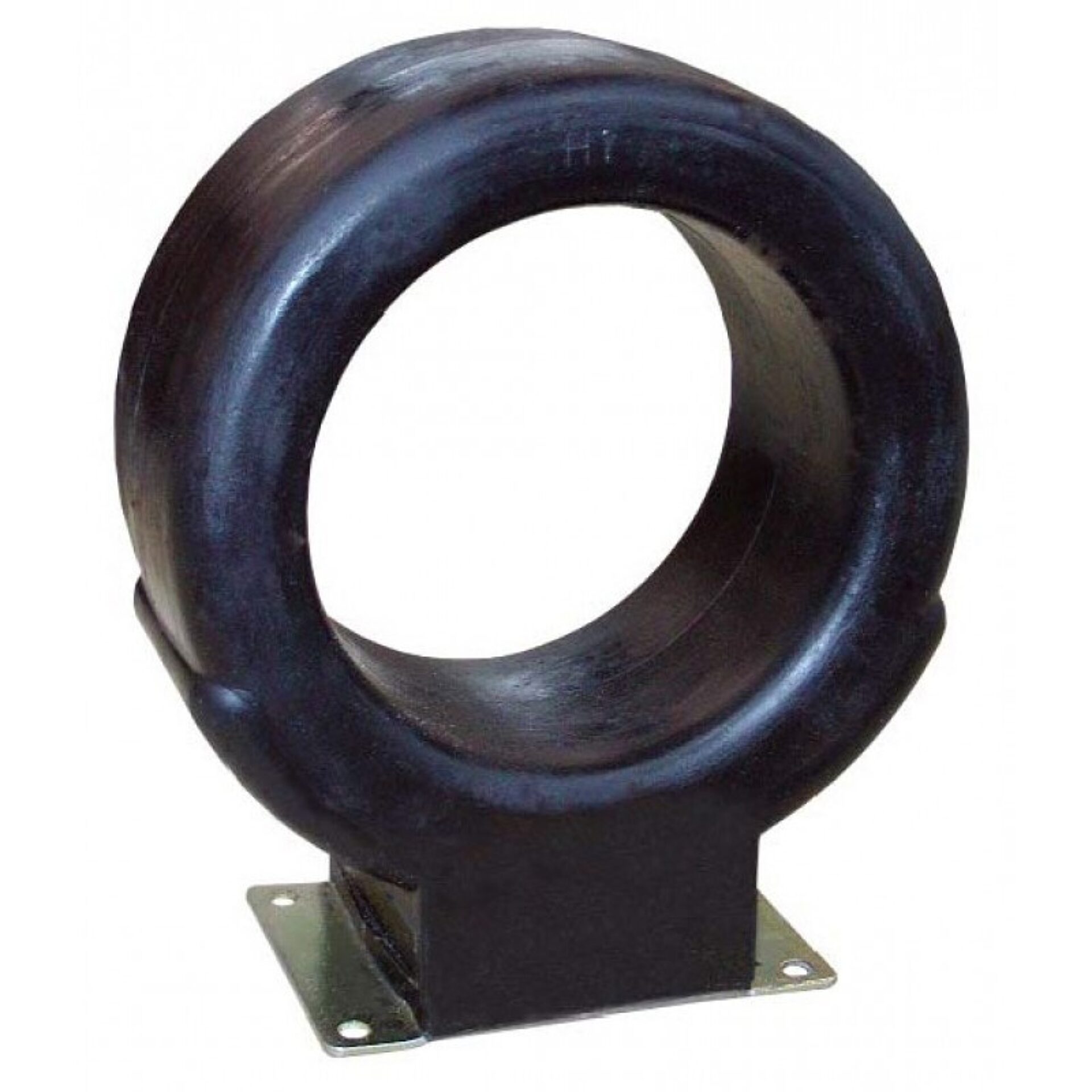

Model CTO Medium Voltage Current Transformer
APPLICATION: Metering and relaying.
FREQUENCY: 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE: For 15 kV and below applications.
CONTINUOUS THERMAL CURRENT RATING FACTOR:
Up to 1500:5 ratio - 1.50 at 30oC., 1.00 at 55oC.
2000:5 to 3000:5 ratios - 1.33 at 30oC. amb., 1.00 at 55oC.
4000:5 ratio - 1.00 at 30oC. amb., 0.75 at 55oC.
Secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher. Vacuum cast polyurethane resin. Steel mounting base.
Approximate weight 55 lbs.
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
