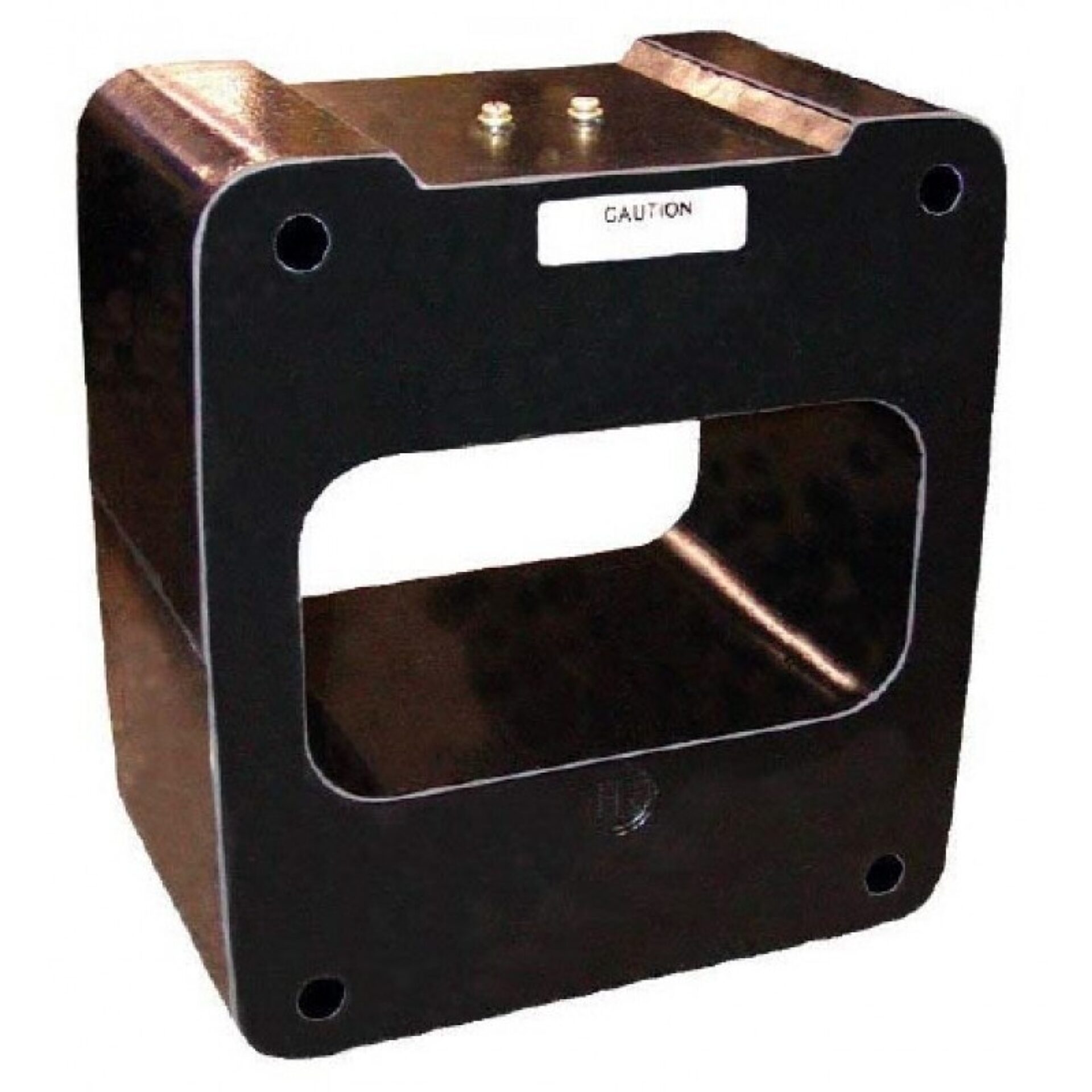

Model CTOR Medium Voltage Current Transformer

Model CTOR Medium Voltage Current Transformer

APPLICATION: Metering and relaying. FREQUENCY: 50-400 Hz. MAXIMUM SYSTEM VOLTAGE: For 15 kV and below applications. CONTINUOUS THERMAL CURRENT RATING FACTOR: Up to 800:5 ratio = 2.00 at 30oC amb., 1.50 at 55oC. 1200:5 to 4000:5 ratios = 1.33 at 30oC amb., 1.00 at 55oC. Secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher. Vacuum cast polyurethane resin. Approximate weight 80 lbs. Window Size 8.44”x 4.50”
Would you like to customize this product? Contact us today to see if we can create the custom option that fits your needs.
