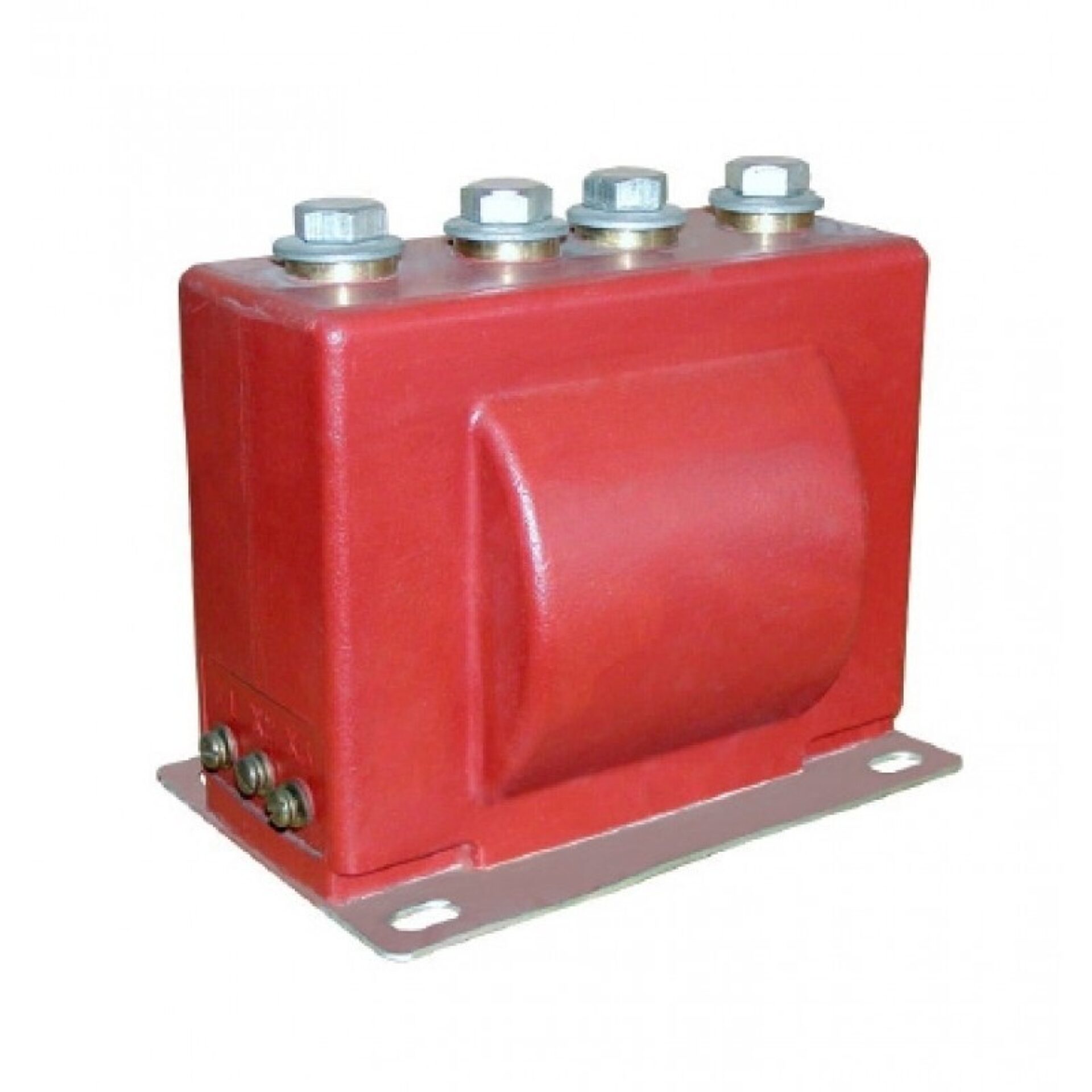

Model CTW3-60-T10 Medium Voltage Current Transformer
Introducing the Model CTW3-60-T10 Medium Voltage Current Transformer, a state-of-the-art solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement in medium voltage electrical systems, this transformer plays a crucial role in ensuring the safe and efficient operation of power distribution networks. Its robust construction and advanced features make it an ideal choice for utilities, industrial facilities, and commercial establishments seeking reliable performance and accurate data collection.
Overview
Introducing the Model CTW3-60-T10 Medium Voltage Current Transformer, a state-of-the-art solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement in medium voltage electrical systems, this transformer plays a crucial role in ensuring the safe and efficient operation of power distribution networks. Its robust construction and advanced features make it an ideal choice for utilities, industrial facilities, and commercial establishments seeking reliable performance and accurate data collection.
a global leader in electrical and electronic manufacturing, this current transformer benefits from decades of industry experience and technological innovation. The CTW3-60-T10 is engineered to withstand demanding electrical environments while providing consistent accuracy over its lifespan. Its compact design allows for easy installation and integration into existing infrastructure, minimizing downtime and maintenance requirements. Additionally, the transformer’s high-quality materials ensure durability and long-term reliability, making it a cost-effective investment for any medium voltage application.
Spectrum Industries takes pride in offering this premium product, emphasizing quality, safety, and performance. Whether used for metering, protection, or control purposes, the Model CTW3-60-T10 current transformer guarantees precise measurement and dependable operation. By choosing this product, customers can trust they are deploying a proven solution backed by ’s reputable manufacturing standards and Spectrum Industries’ commitment to excellence.
Request a Quote for Model CTW3-60-T10 Medium Voltage Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 60 kV
- Weight
- 16 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 5.6 kV
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C ambient; 1.00 at 55 C
- Primary Terminals
- 3/8-16 bolts with one Belleville washer
- Secondary Terminals
- Brass screws No. 10-32 with flatwasher and lockwasher
- Construction
- Vacuum cast polyurethane resin
- Minimum Spacing Unit-to-Unit
- 0.75 in
- Minimum Spacing HV to Ground in Air
- 3.00 in
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | 0.6B0.1 | 1.33 | 1 |
| 75 | 5 | 75:5 | 0.6B0.2 | 1.33 | 1 |
| 100 | 5 | 100:5 | 0.6B0.1 | 1.33 | 1 |
| 150 | 5 | 150:5 | 0.6B0.2 | 1.33 | 1 |
| 200 | 5 | 200:5 | 0.3B0.2 | 1.33 | 1 |
| 300 | 5 | 300:5 | 0.3B0.2 | 1.33 | 1 |
| 400 | 5 | 400:5 | 0.3B0.2 | 1.33 | 1 |
| 600 | 5 | 600:5 | 0.3B0.2 | 1.33 | 1 |
