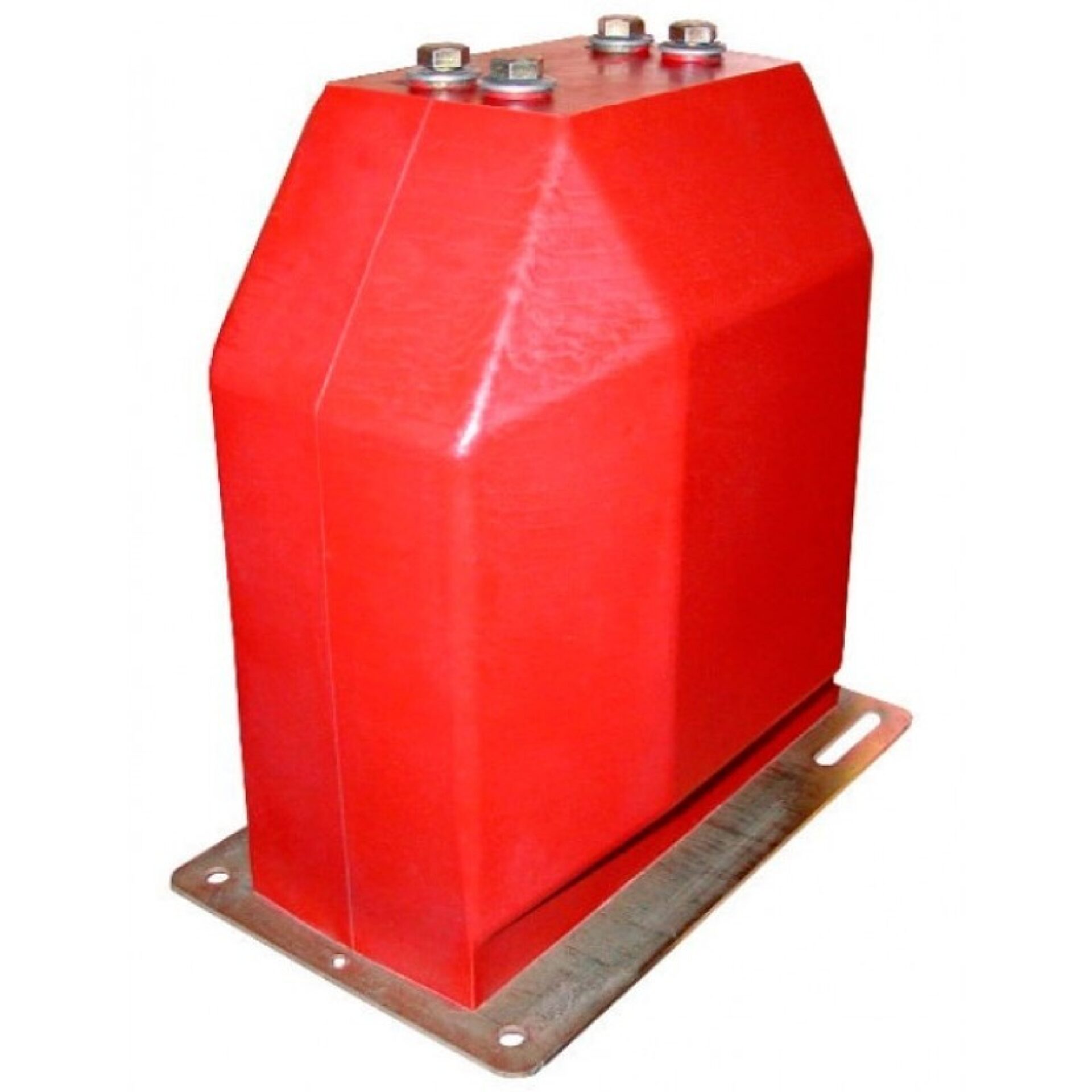

Model CTW6-125 Medium Voltage Current Transformer
Introducing the Model CTW6-125 Medium Voltage Current Transformer, a state-of-the-art solution engineered to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this current transformer exemplifies reliability, precision, and durability. Designed specifically for medium voltage applications, the CTW6-125 ensures accurate current measurement and protection, vital for maintaining the safety and efficiency of power distribution networks.
Overview
Introducing the Model CTW6-125 Medium Voltage Current Transformer, a state-of-the-art solution engineered to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this current transformer exemplifies reliability, precision, and durability. Designed specifically for medium voltage applications, the CTW6-125 ensures accurate current measurement and protection, vital for maintaining the safety and efficiency of power distribution networks.
Produced by Spectrum Industries in collaboration with, this current transformer combines advanced engineering with high-quality materials to deliver consistent performance under various operational conditions. Its robust construction and precise calibration make it an ideal choice for utility companies, industrial facilities, and electrical service providers seeking dependable measurement and protection devices. The CTW6-125 features a compact design that facilitates easy installation and maintenance, reducing downtime and operational costs.
With a focus on safety and performance, this transformer is built to withstand harsh environments and provide long-lasting service life. Whether used in new installations or as part of system upgrades, the Model CTW6-125 offers a reliable solution for accurate current measurement and system protection. Backed by our reputation for excellence and Spectrum Industries’ commitment to quality, this product is a smart investment for any medium voltage electrical infrastructure.
Request a Quote for Model CTW6-125 Medium Voltage Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 125 kV
- Weight
- 95 lbs
- Application
- Metering, Protection
- Maximum System Voltage
- 25.5 kV, BIL 125 kV full wave
- Continuous Thermal Rating Factor
- 1.50 at 30 C, 1.33 at 55 C
- Primary Terminals
- 1/2-13 bolts with one Belleville washer
- Secondary Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Construction
- Vacuum cast polyurethane resin
- Weight
- T100 95 lbs; T200 115 lbs
- Recommended Minimum Spacing
- Unit to unit 8.50 in; HV to ground in air 8.50 in
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|---|
| 10 | 5 | 10:5 | 0.3B0.9 |
| 15 | 5 | 15:5 | 0.3B0.9 |
| 25 | 5 | 25:5 | 0.3B0.9 |
| 50 | 5 | 50:5 | 0.3B0.9 |
| 75 | 5 | 75:5 | 0.3B0.9 |
| 100 | 5 | 100:5 | 0.3B0.9 |
| 150 | 5 | 150:5 | 0.3B0.9 |
| 200 | 5 | 200:5 | 0.3B0.9 |
| 300 | 5 | 300:5 | 0.3B0.9 |
| 400 | 5 | 400:5 | 0.3B0.9 |
| 600 | 5 | 600:5 | 0.3B0.9 |
| 10 | 5 | 10:5 | 0.3B1.8 |
| 15 | 5 | 15:5 | 0.3B1.8 |
| 25 | 5 | 25:5 | 0.3B1.8 |
| 50 | 5 | 50:5 | 0.3B1.8 |
| 75 | 5 | 75:5 | 0.3B1.8 |
| 100 | 5 | 100:5 | 0.3B1.8 |
| 150 | 5 | 150:5 | 0.3B1.8 |
| 200 | 5 | 200:5 | 0.3B1.8 |
| 300 | 5 | 300:5 | 0.3B1.8 |
| 400 | 5 | 400:5 | 0.3B1.8 |
| 600 | 5 | 600:5 | 0.3B1.8 |
