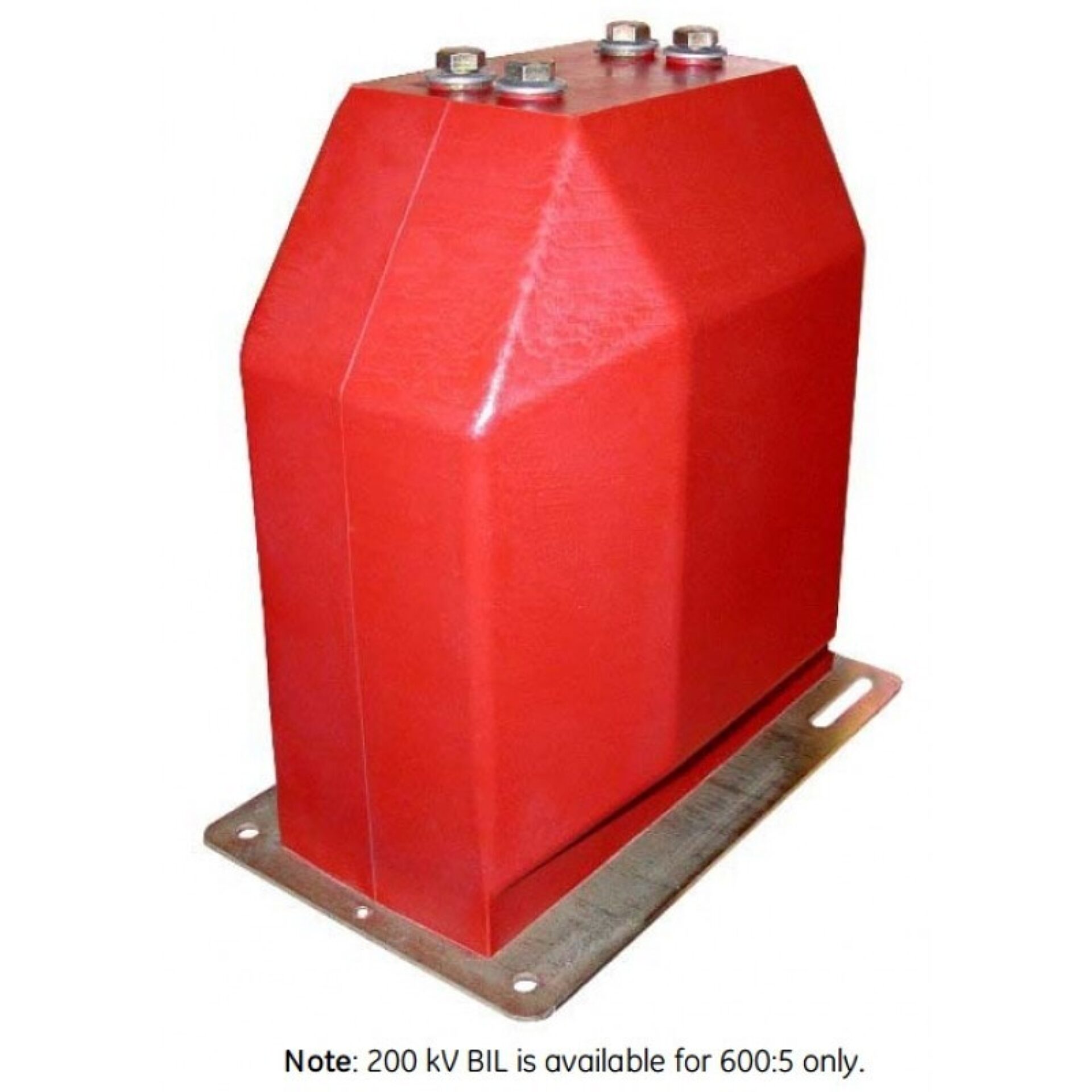

Model CTW7-150 Medium Voltage Current Transformer

Model CTW7-150 Medium Voltage Current Transformer

APPLICATION: Metering and relaying. FREQUENCY: 50-400 Hz. MAXIMUM SYSTEM VOLTAGE: 36.5kV, BIL 150kV full wave. CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.50 at 30oC amb., 1.33 at 55oC. amb. Primary terminals are 1/2-13 bolts with one Belleville washer. Secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher. Vacuum cast polyurethane resin. Approximate weight: T100 - 125 lbs. T200 - 155 lbs.
Would you like to customize this product? Contact us today to see if we can create the custom option that fits your needs.
