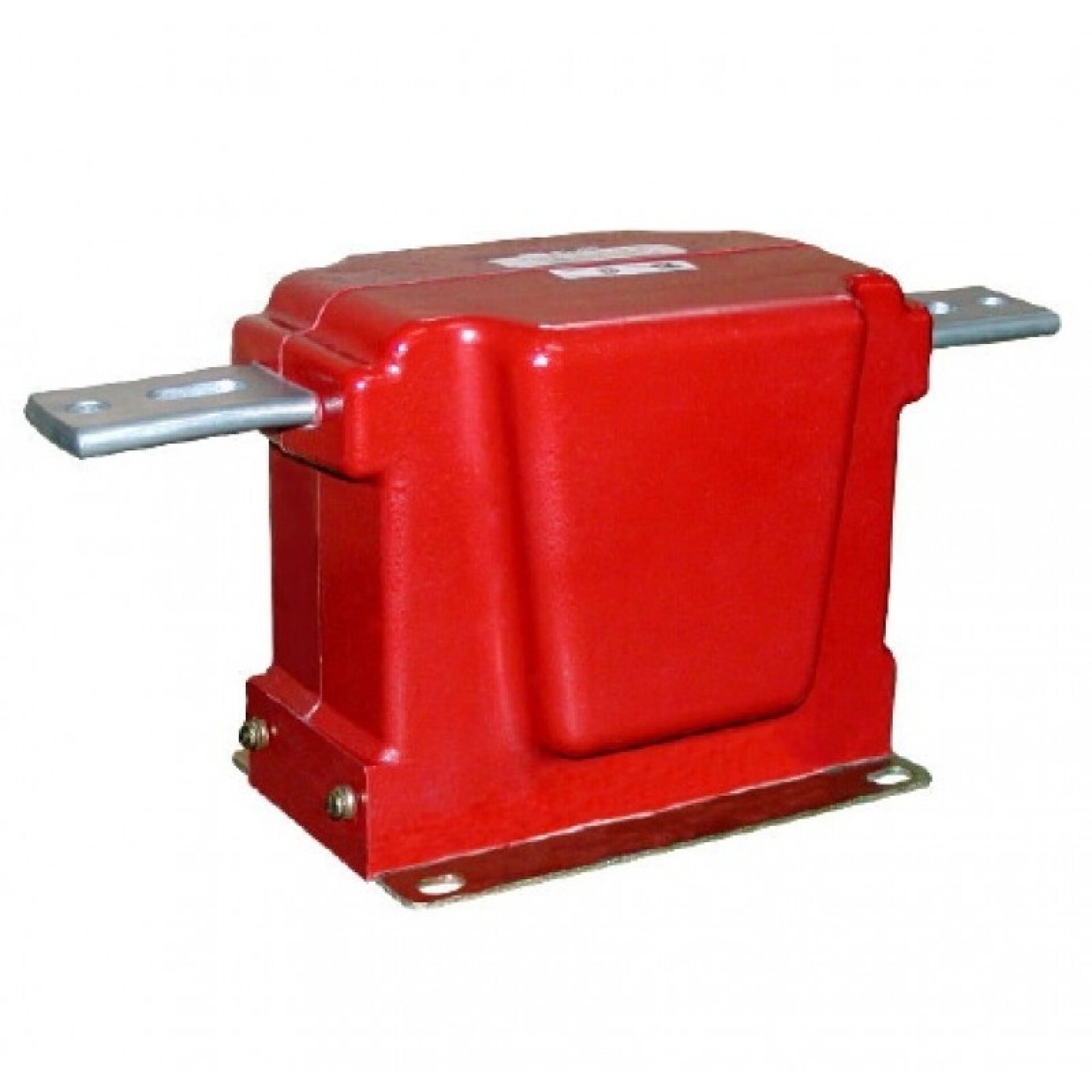

Model CTWH3-A-60-T100 Medium Voltage Current Transformer

APPLICATION: High accuracy metering and relaying. FREQUENCY: 50-400 Hz. MAXIMUM SYSTEM VOLTAGE: 5.6kV, BIL 60kV. CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.50 at 30oC amb., 1.33 at 55oC. amb. 250:5, 1000:5 and 1200:5 - 1.10 at 30oC. amb., 0.85 at 55oC. amb. Primary terminals are plated copper bars. See chart next page for sizes. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher. Vacuum cast in polyurethane resin. Other ratios, secondary currents and dual ratios are available. Refer to factory. Approximate weight 41 lbs.
