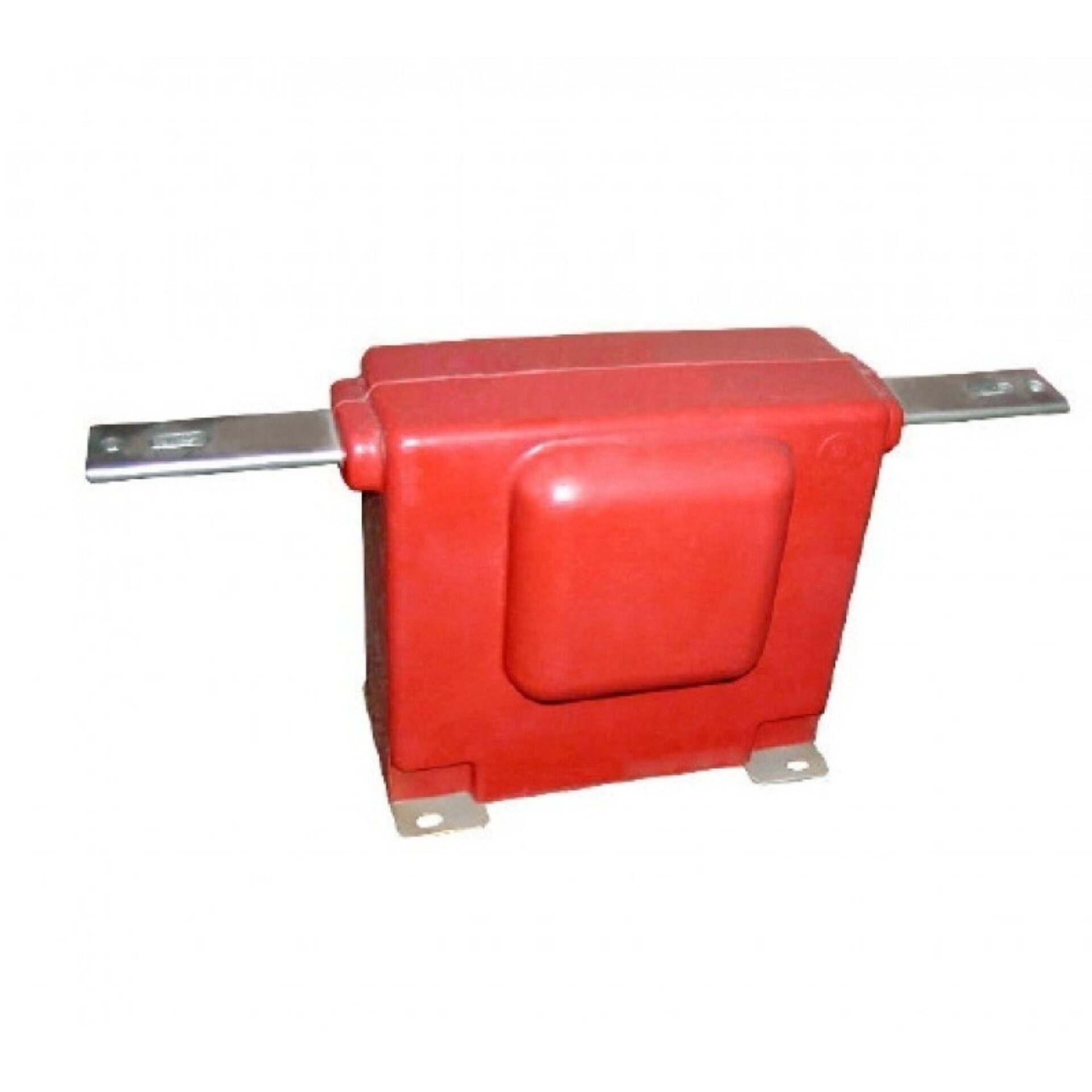

Model CTWH5-B-110-T200 Medium Voltage Current Transformer
Introducing the Model CTWH5-B-110-T200 Medium Voltage Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical power systems, this current transformer offers precise measurement and reliable performance in medium voltage applications. Whether used in utility substations, industrial facilities, or power distribution networks, the CTWH5-B-110-T200 provides accurate current readings essential for system monitoring, protection, and control.
Overview
Introducing the Model CTWH5-B-110-T200 Medium Voltage Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical power systems, this current transformer offers precise measurement and reliable performance in medium voltage applications. Whether used in utility substations, industrial facilities, or power distribution networks, the CTWH5-B-110-T200 provides accurate current readings essential for system monitoring, protection, and control.
a global leader in electrical equipment and technology, this current transformer benefits from advanced manufacturing standards and innovative design features. Its robust construction ensures durability and long-term stability, even in challenging operational environments. The transformer’s specifications are optimized for safety, efficiency, and ease of installation, making it a dependable choice for professionals seeking high-performance electrical components.
Spectrum Industries takes pride in offering this premium product, ensuring it meets rigorous quality standards and industry regulations. The Model CTWH5-B-110-T200 is an ideal solution for those looking to enhance the reliability and accuracy of their electrical systems. With ’s trusted engineering and Spectrum Industries’ commitment to quality, this current transformer is a smart investment for any medium voltage application requiring precise current measurement and dependable operation.
Request a Quote for Model CTWH5-B-110-T200 Medium Voltage Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 110 kV
- Weight
- 76 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 15.5 kV
- Continuous Thermal Current Rating Factor
- 1.50 at 30 C / 1.33 at 55 C (5:5 thru 600:5); 1.0 at 30 C / 0.8 at 55 C (800:5 and over)
- Revenue Metering Approval (Canada)
- Industry Canada Approval No. AE-0640 Rev.1
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- ANSI metering class 0.3 at burdens B0.1, B0.2, B0.5, B0.9, B1.8 at 60 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 5 | 5 | 5:5 | 0.3B1.8 | 1.5 | 1.33 |
| 10 | 5 | 10:5 | 0.3B1.8 | 1.5 | 1.33 |
| 15 | 5 | 15:5 | 0.3B1.8 | 1.5 | 1.33 |
| 20 | 5 | 20:5 | 0.3B1.8 | 1.5 | 1.33 |
| 25 | 5 | 25:5 | 0.3B1.8 | 1.5 | 1.33 |
| 30 | 5 | 30:5 | 0.3B1.8 | 1.5 | 1.33 |
| 40 | 5 | 40:5 | 0.3B1.8 | 1.5 | 1.33 |
| 50 | 5 | 50:5 | 0.3B1.8 | 1.5 | 1.33 |
| 75 | 5 | 75:5 | 0.3B1.8 | 1.5 | 1.33 |
| 100 | 5 | 100:5 | 0.3B1.8 | 1.5 | 1.33 |
| 150 | 5 | 150:5 | 0.3B1.8 | 1.5 | 1.33 |
| 200 | 5 | 200:5 | 0.3B1.8 | 1.5 | 1.33 |
| 300 | 5 | 300:5 | 0.3B1.8 | 1.5 | 1.33 |
| 400 | 5 | 400:5 | 0.3B1.8 | 1.5 | 1.33 |
| 600 | 5 | 600:5 | 0.3B1.8 | 1.5 | 1.33 |
| 800 | 5 | 800:5 | 0.3B1.8 | 1 | 0.8 |
| 1000 | 5 | 1000:5 | 0.3B1.8 | 1 | 0.8 |
| 1200 | 5 | 1200:5 | 0.3B1.8 | 1 | 0.8 |
