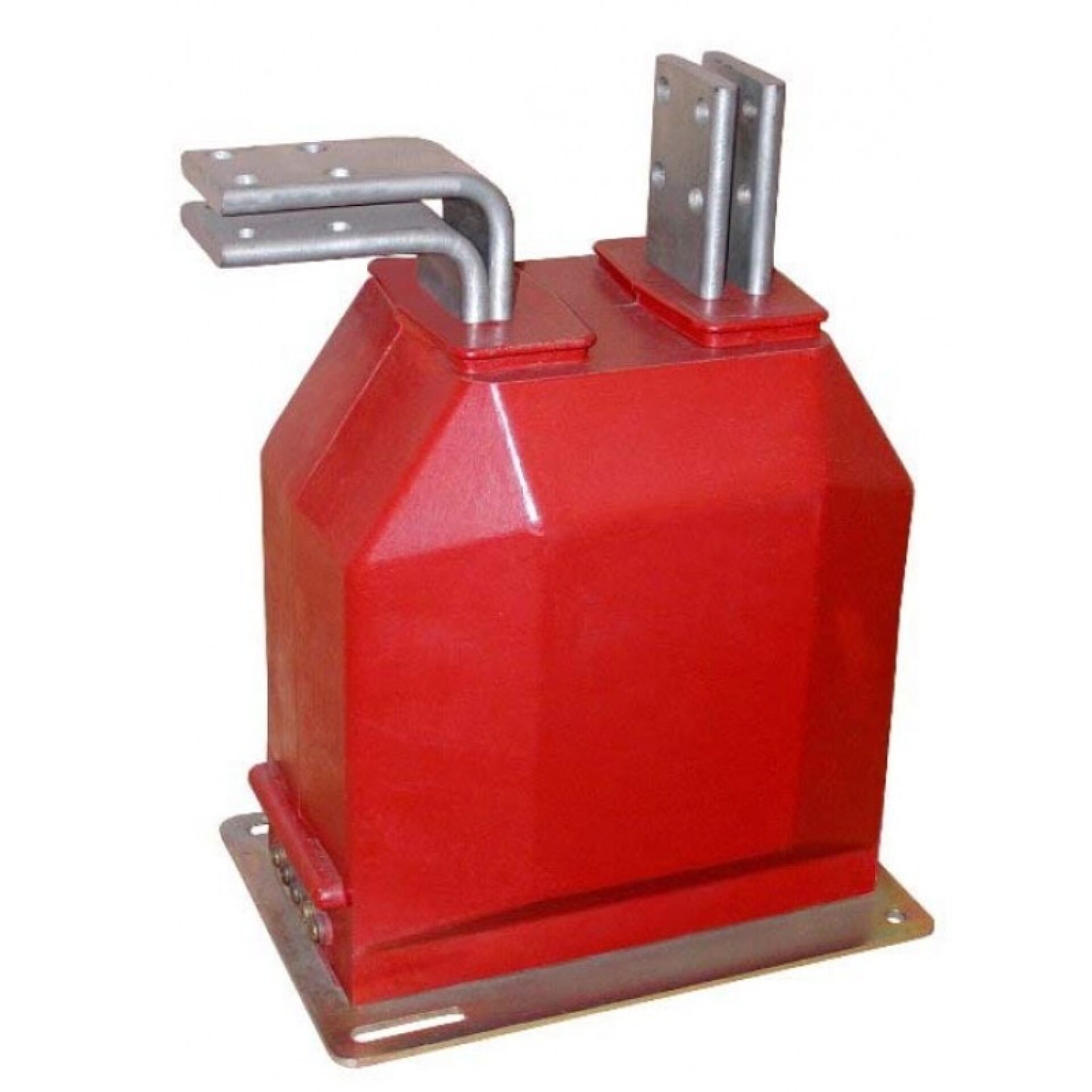

Model CTWH6-125-T200 Medium Voltage Current Transformer
Introducing the Model CTWH6-125-T200 Medium Voltage Current Transformer, a reliable and high-performance solution. Designed to meet the rigorous demands of modern electrical systems, this current transformer provides precise current measurement and enhances the safety and efficiency of medium voltage applications., a global leader in electrical and power equipment, this product embodies innovation, durability, and advanced engineering.
Overview
Introducing the Model CTWH6-125-T200 Medium Voltage Current Transformer, a reliable and high-performance solution. Designed to meet the rigorous demands of modern electrical systems, this current transformer provides precise current measurement and enhances the safety and efficiency of medium voltage applications., a global leader in electrical and power equipment, this product embodies innovation, durability, and advanced engineering.
The Model CTWH6-125-T200 is engineered to deliver accurate current readings essential for monitoring and control in electrical distribution systems. Its robust construction ensures long-term reliability even in challenging environments, making it an ideal choice for utility companies, industrial facilities, and power generation plants. With its carefully designed specifications, this transformer ensures compliance with industry standards while offering ease of installation and maintenance.
and distributed through Spectrum Industries, this current transformer exemplifies quality and performance. Spectrum Industries’ commitment to providing top-tier electrical components ensures that you receive a product that meets your operational needs. Whether upgrading existing systems or implementing new infrastructure, the Model CTWH6-125-T200 offers the confidence and precision required for effective electrical management. Trust in ’s legacy of innovation combined with Spectrum Industries’ dedication to excellence for your medium voltage current measurement needs.
Request a Quote for Model CTWH6-125-T200 Medium Voltage Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 125 kV
- Weight
- 150 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 25.5 kV
- Insulation Construction
- Vacuum cast polyurethane resin
- Primary Terminals
- Plated copper bars
- Secondary Terminals
- Brass screws No. 10-32
- Minimum Spacing (Unit-to-Unit)
- 8.50 in
- Minimum Spacing (HV to Ground in Air)
- 8.50 in
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 800 | 5 | 800:5 | 1.5 | 1.33 |
| 1000 | 5 | 1000:5 | 1.5 | 1.33 |
| 1200 | 5 | 1200:5 | 1.5 | 1.33 |
| 1500 | 5 | 1500:5 | 1.5 | 1.33 |
| 2000 | 5 | 2000:5 | 1.33 | 1 |
| 2500 | 5 | 2500:5 | 1 | 0.85 |
| 3000 | 5 | 3000:5 | 1 | 0.85 |
