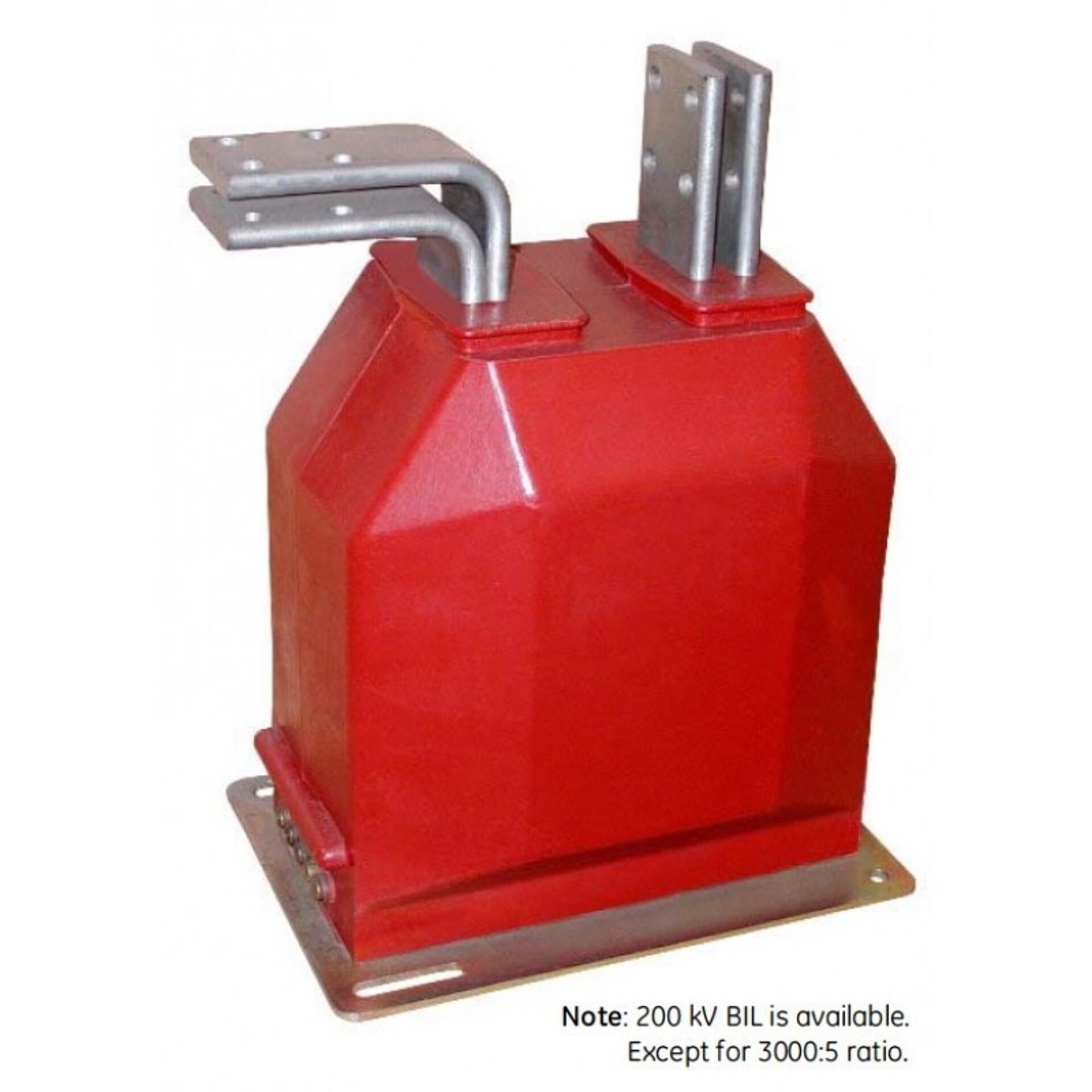

Model CTWH7-150-T200 Medium Voltage Current Transformer
Introducing the Model CTWH7-150-T200 Medium Voltage Current Transformer, a high-quality product designed to meet the rigorous demands of modern electrical systems., a global leader in electrical and electronic solutions, this current transformer exemplifies precision engineering and reliability. It is specifically engineered to provide accurate current measurement and protection in medium voltage applications, making it an essential component for utilities, industrial facilities, and power distribution networks.
Overview
Introducing the Model CTWH7-150-T200 Medium Voltage Current Transformer, a high-quality product designed to meet the rigorous demands of modern electrical systems., a global leader in electrical and electronic solutions, this current transformer exemplifies precision engineering and reliability. It is specifically engineered to provide accurate current measurement and protection in medium voltage applications, making it an essential component for utilities, industrial facilities, and power distribution networks.
a company renowned for its innovation and commitment to quality, the Model CTWH7-150-T200 ensures consistent performance even under challenging operating conditions. Its robust construction and advanced design help safeguard electrical systems by enabling precise monitoring and control, thereby enhancing overall system stability and safety. The transformer’s compatibility with various metering and protective devices makes it a versatile choice for a wide range of medium voltage applications.
Spectrum Industries, a trusted name in electrical components and solutions, offers this product as part of their commitment to providing reliable and efficient equipment. The Model CTWH7-150-T200’s durable build, combined with ’s technological expertise, ensures long-term performance and minimal maintenance requirements. Whether upgrading existing infrastructure or designing new systems, this current transformer is a dependable choice for professionals seeking quality and precision in medium voltage current measurement.
Request a Quote for Model CTWH7-150-T200 Medium Voltage Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 150 kV
- Weight
- 180 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Maximum System Voltage
- 36.5 kV
- Primary Terminals
- Plated copper bars
- Secondary Terminals
- Brass screws No. 10-32
- Encapsulation
- Vacuum cast polyurethane resin
- Revenue Metering Approval
- Industry Canada No. AE-0638 Rev. 1
- Minimum Unit-to-Unit Spacing
- 11.50 in
- Minimum HV-to-Ground in Air
- 11.50 in
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 800 | 5 | 800:5 | 1.5 | 1.33 |
| 1000 | 5 | 1000:5 | 1.5 | 1.33 |
| 1200 | 5 | 1200:5 | 1.5 | 1.33 |
| 1500 | 5 | 1500:5 | 1.5 | 1.33 |
| 2000 | 5 | 2000:5 | 1.33 | 1 |
| 2500 | 5 | 2500:5 | 1 | 0.85 |
| 3000 | 5 | 3000:5 | 1 | 0.85 |
