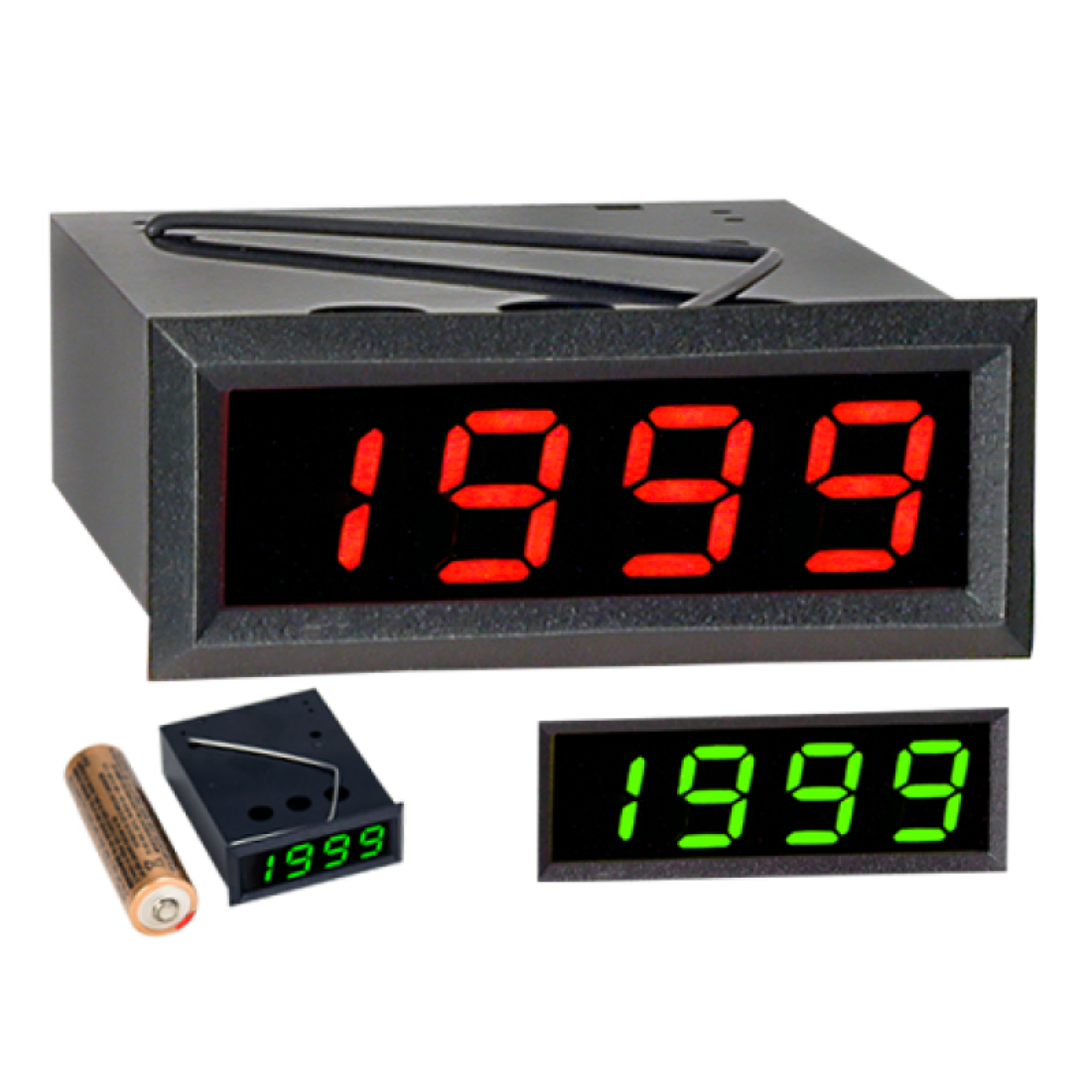

Model DVM-5 CL Loop Powered Mini Meter
Model DVM-5 CL Loop Powered Mini Meter - Analog & Digital Meters
The Texmate DVM-5/CL is a miniature loop powered LED digital panel meter. The small size is an advantage especially in the process industry where space is often critical. The DVM- 5/CL is designed also for OEM's in the medical and scientific instrument field where small size and exceptional performance are important. This meter, although small, is very advanced and uses all surface mount technology. The DVM-5/CL comes standard 0 to 1000 full scale. It can be factory scaled to read output in any engineering unit from 0 to 1999. No decimal point is set on the standard meter, but one may be specified when ordering. The DVM-5/CL operates over the range of -30 to +85?C (-22 to +185?F). Dimensions are 1.378"W x 0.5"H x 1.77"D and the front bezel is 1.5"Wx0.6"H. Red/orange 7mm LEDs are clearly visible even at a distance. The unit weighs 0.64 oz.
Overview
The Texmate DVM-5/CL is a miniature loop powered LED digital panel meter. The small size is an advantage especially in the process industry where space is often critical. The DVM- 5/CL is designed also for OEM's in the medical and scientific instrument field where small size and exceptional performance are important. This meter, although small, is very advanced and uses all surface mount technology. The DVM-5/CL comes standard 0 to 1000 full scale. It can be factory scaled to read output in any engineering unit from 0 to 1999. No decimal point is set on the standard meter, but one may be specified when ordering. The DVM-5/CL operates over the range of -30 to +85?C (-22 to +185?F). Dimensions are 1.378"W x 0.5"H x 1.77"D and the front bezel is 1.5"Wx0.6"H. Red/orange 7mm LEDs are clearly visible even at a distance. The unit weighs 0.64 oz.
Request a Quote for Model DVM-5 CL Loop Powered Mini Meter
Product Specifications
- Operating Temperature
- -10°C to 50°C
- Weight
- 0.04 lbs
- Mounting
- Panel mount
- Application
- Metering, Process Control
- Standard full-scale range
- 0 to 1000
- Loop drop
- Approximately 8V
- Warm-up time
- 2 minutes
- Relative humidity
- 95%
- Span adjustment
- Right side meter adjustment
- Case dimensions
- 1.38" W x 0.5" H x 1.77" D (35 x 12.7 x 45 mm)
- Connection
- 9-pin male connector
- Displayed Parameters — Count
- 1
- Displayed Parameters — Notes
- 3.5 digit, 0.276" (7mm) Red or Orange LED; no decimal point on standard meter (specify at time of order)
Maximum 1000 characters
Specification Table
| Display | Power | Input | Standard scale | Resolution | Option | Available ranges | For |
|---|---|---|---|---|---|---|---|
| 3.5 digit Red LED | 5VDC | 2/20/200 VDC | — | — | — | — | — |
| 3.5 digit Red LED | 5VDC | 4-20 mA | — | — | — | — | — |
| 3.5 digit Red LED | Loop powered | 4-20 mA | 0-1000 | — | — | — | — |
| 3.5 digit Green LED | 5VDC | 2/20/200 VDC | — | — | — | — | — |
| 3.5 digit Red LED | 5VDC | 200 mV DC | — | — | — | — | — |
| 3.5 digit Red LED | 5VDC | RTD | — | 0.1 degC | — | — | — |
| 3.5 digit Red LED | 5VDC | RTD | — | 1 degC | — | — | — |
| — | — | — | — | — | Special scaling | 0-200, 0-250, 0-300, 0-360, 0-500, 0-600, 0-700, 0-800, 0-900, 0-1250, 0-1500, 0-1750, 0-1999 | DVM-5/CL |
Red LED voltmeter with DC voltage input ranges
