Model FL-B101D40 Digital Meter
Introducing the Model FL-B101D40 Digital Meter from Spectrum Industries, a versatile and reliable instrument designed to meet the demanding needs of professionals across various industries. Engineered with precision and durability in mind, this digital meter offers accurate measurements and user-friendly features, making it an essential tool for technicians, engineers, and technicians alike. Whether you're conducting routine maintenance, troubleshooting electrical systems, or performing detailed diagnostics, the FL-B101D40 provides the performance you can trust.
Overview
Introducing the Model FL-B101D40 Digital Meter from Spectrum Industries, a versatile and reliable instrument designed to meet the demanding needs of professionals across various industries. Engineered with precision and durability in mind, this digital meter offers accurate measurements and user-friendly features, making it an essential tool for technicians, engineers, and technicians alike. Whether you're conducting routine maintenance, troubleshooting electrical systems, or performing detailed diagnostics, the FL-B101D40 provides the performance you can trust.
Built with advanced digital technology, this meter boasts a clear, easy-to-read display that ensures quick and accurate readings in any environment. Its robust construction allows it to withstand the rigors of daily use, while its compact design makes it convenient to carry and operate in tight spaces. The device features multiple measurement functions, including voltage, current, resistance, and continuity testing, providing comprehensive testing capabilities in one compact unit. Additionally, it is equipped with safety features to protect users during high-voltage measurements, ensuring both safety and reliability.
Spectrum Industries' commitment to quality and innovation is evident in the design of the FL-B101D40 Digital Meter. Whether you're conducting detailed electrical assessments or performing routine checks, this instrument is built to deliver precise results efficiently. Its combination of advanced features, durability, and ease of use makes it an invaluable addition to any professional toolkit.
Request a Quote for Model FL-B101D40 Digital Meter
Product Specifications
- Operating Temperature
- 0°C to 60°C
- Weight
- 0.59 lbs
- Mounting
- Panel mount
- Application
- Metering, Process Control
- A/D Converter
- 14 bit single slope
- Conversion Rate
- 10 conversions per second (typical)
- Warm-up Time
- 2 minutes
- Temperature Coefficient
- 100 ppm/°C (typical)
- Relative Humidity
- 95% non-condensing
- Relay Output
- Up to two 10A Form C and two 5A Form A relays
- Case Size
- 9/64 DIN, 36W x 144H mm bezel, 148 mm depth behind bezel plus 18 mm for connectors
- Excitation Supply
- 24 V DC for 4-20 mA transmitters; 5 or 10 V DC for resistance bridge sensors
- Overall Accuracy — Accuracy
- 0.05
- Overall Accuracy — Condition
- of reading + 2 counts
- Displayed Parameters — Count
- 4
- Displayed Parameters — Notes
- 4-digit 0.31 in LED with 101-segment 4 in bargraph; range -1999 to 9999 (12000 counts)
Specification Table
| Bargraph Color | Digital Display Color | Orientation | Scale |
|---|---|---|---|
| Red | Red | Vertical | — |
| Green | Green | Vertical | — |
| Green | Red | Vertical | — |
| Red | Green | Vertical | — |
| Tri-color | Green | Vertical | — |
| Tri-color | Red | Vertical | — |
| Red | Red | Horizontal | — |
| Green | Green | Horizontal | — |
| Green | Red | Horizontal | — |
| Red | Green | Horizontal | — |
| Tri-color | Green | Horizontal | — |
| Tri-color | Red | Horizontal | — |
| Green | Green | Vertical | Dual |
| Green | Red | Vertical | Dual |
| Red | Green | Vertical | Dual |
| Red | Red | Vertical | Dual |
| Tri-color | Green | Vertical | Dual |
| Tri-color | Red | Vertical | Dual |

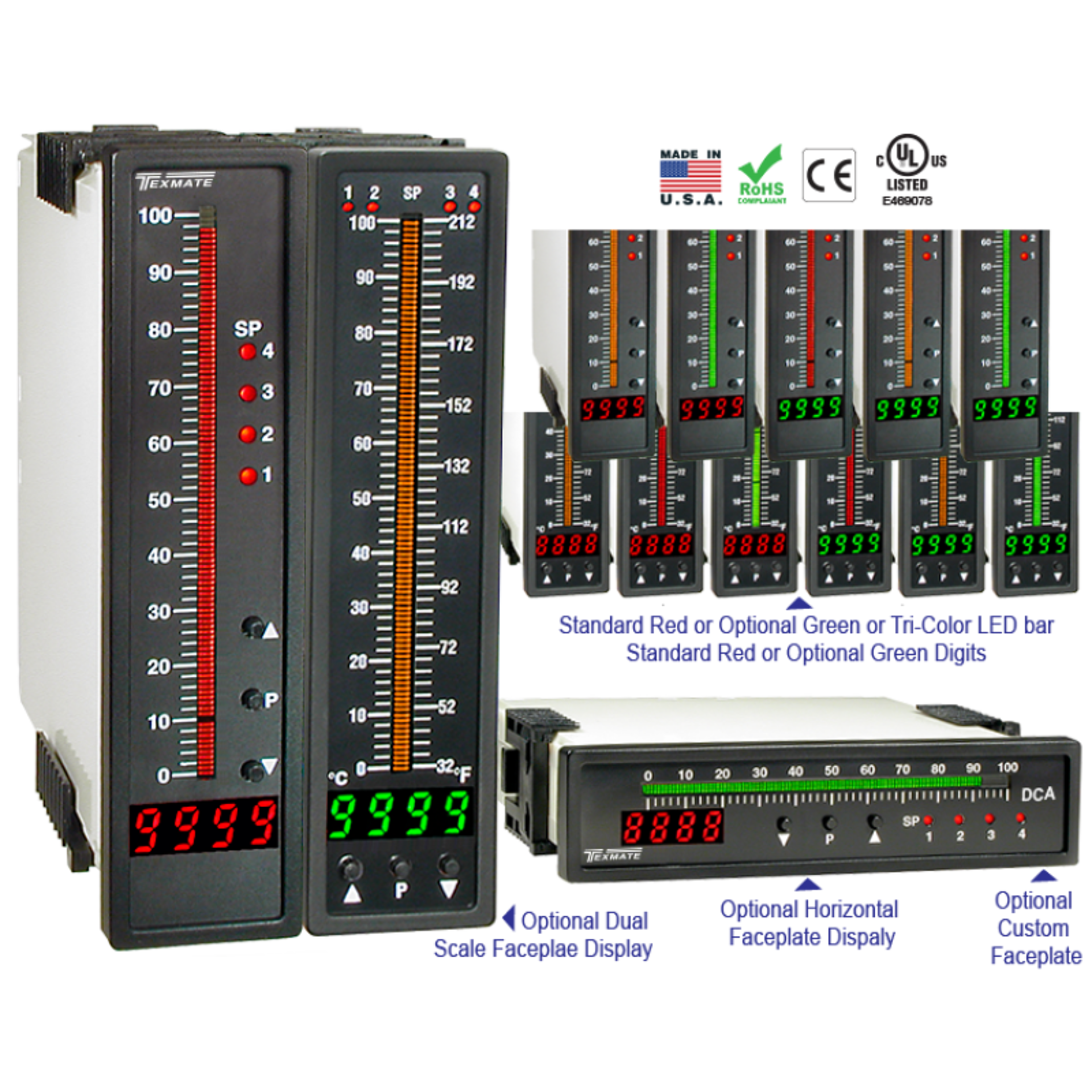

Red LED bargraph with 4-digit red DPM, vertical
