Model FL-B101D40H Digital Meter
Introducing the Model FL-B101D40H Digital Meter from Spectrum Industries, a precision instrument designed to provide accurate and reliable measurements across a variety of applications. Built with advanced digital technology, this meter offers users a straightforward and efficient way to monitor electrical parameters, ensuring optimal performance and safety in both industrial and laboratory environments.
Overview
Introducing the Model FL-B101D40H Digital Meter from Spectrum Industries, a precision instrument designed to provide accurate and reliable measurements across a variety of applications. Built with advanced digital technology, this meter offers users a straightforward and efficient way to monitor electrical parameters, ensuring optimal performance and safety in both industrial and laboratory environments.
The FL-B101D40H features a user-friendly interface with a clear digital display, making it easy to read measurements at a glance. Its robust construction and durable design ensure long-lasting performance even in demanding conditions. Equipped with multiple measurement functions, including voltage, current, and resistance, this digital meter is versatile enough to handle a wide range of testing scenarios. Whether you're troubleshooting electrical systems, conducting research, or performing routine maintenance, this device provides the precision you need to make informed decisions.
Furthermore, Spectrum Industries has incorporated features such as auto-ranging and data hold functions, enhancing ease of use and efficiency. Compact and lightweight, the Model FL-B101D40H is portable and convenient for on-the-go testing, making it an essential tool for professionals and technicians alike. With its combination of accuracy, durability, and user-friendly features, this digital meter from Spectrum Industries stands out as a dependable solution for all your measurement needs.
Request a Quote for Model FL-B101D40H Digital Meter
Product Specifications
- Operating Temperature
- 0°C to 60°C
- Weight
- 0.59 lbs
- Mounting
- Panel mount
- Application
- Metering, Process Control
- Input Types
- Thermocouple J/K/R/T; RTD Pt-100 (385/392) 3/4-wire; RTD Pt-1000 3/4-wire
- A/D Converter
- 14-bit single slope
- Temperature Coefficient
- 100 ppm/degC
- Warm-up Time
- 2 minutes
- Relative Humidity
- 95% non-condensing
- Case
- 9/64 DIN (bezel 36W x 144H mm), depth behind bezel 148 mm
- Excitation Supply
- 24 V DC for 4/20 mA transmitters; 5 or 10 V DC for resistance-bridge sensors
- Setpoints
- 4 programmable setpoints with front-panel LED annunciators
- Relay Output
- Up to two 10 A Form C and two 5 A Form A
- Auxiliary Power Supply Option
- PS2: 18-48 VAC / 10-72 VDC
- Overall Accuracy — Accuracy
- 0.05
- Overall Accuracy — Condition
- of reading + 2 counts
- Input Voltage Option — Volts
- 265
- Input Voltage Option — AC/DC
- ACDC
- Displayed Parameters — Count
- 1
- Displayed Parameters — Notes
- 4-digit LED, range -1999 to 9999 (12000 counts); 101-segment bargraph
Specification Table
| Bargraph | Digital Display | Orientation |
|---|---|---|
| Red LED | 4-digit Red DPM | Vertical |
| Green LED | 4-digit Green DPM | Vertical |
| Green LED | 4-digit Red DPM | Vertical |
| Red LED | 4-digit Green DPM | Vertical |
| Tri-Color | 4-digit Green DPM | Vertical |
| Tri-Color | 4-digit Red DPM | Vertical |
| Red LED | 4-digit Red DPM | Horizontal |
| Green LED | 4-digit Green DPM | Horizontal |
| Green LED | 4-digit Red DPM | Horizontal |
| Red LED | 4-digit Green DPM | Horizontal |
| Tri-Color | 4-digit Green DPM | Horizontal |
| Tri-Color | 4-digit Red DPM | Horizontal |
| Dual Scale Green LED Vertical | 4-digit Green DPM | — |
| Dual Scale Green LED Vertical | 4-digit Red DPM | — |
| Dual Scale Red LED Vertical | 4-digit Green DPM | — |
| Dual Scale Red LED Vertical | 4-digit Red DPM | — |
| Dual Scale Tri-Color Vertical | 4-digit Green DPM | — |
| Dual Scale Tri-Color Vertical | 4-digit Red DPM | — |

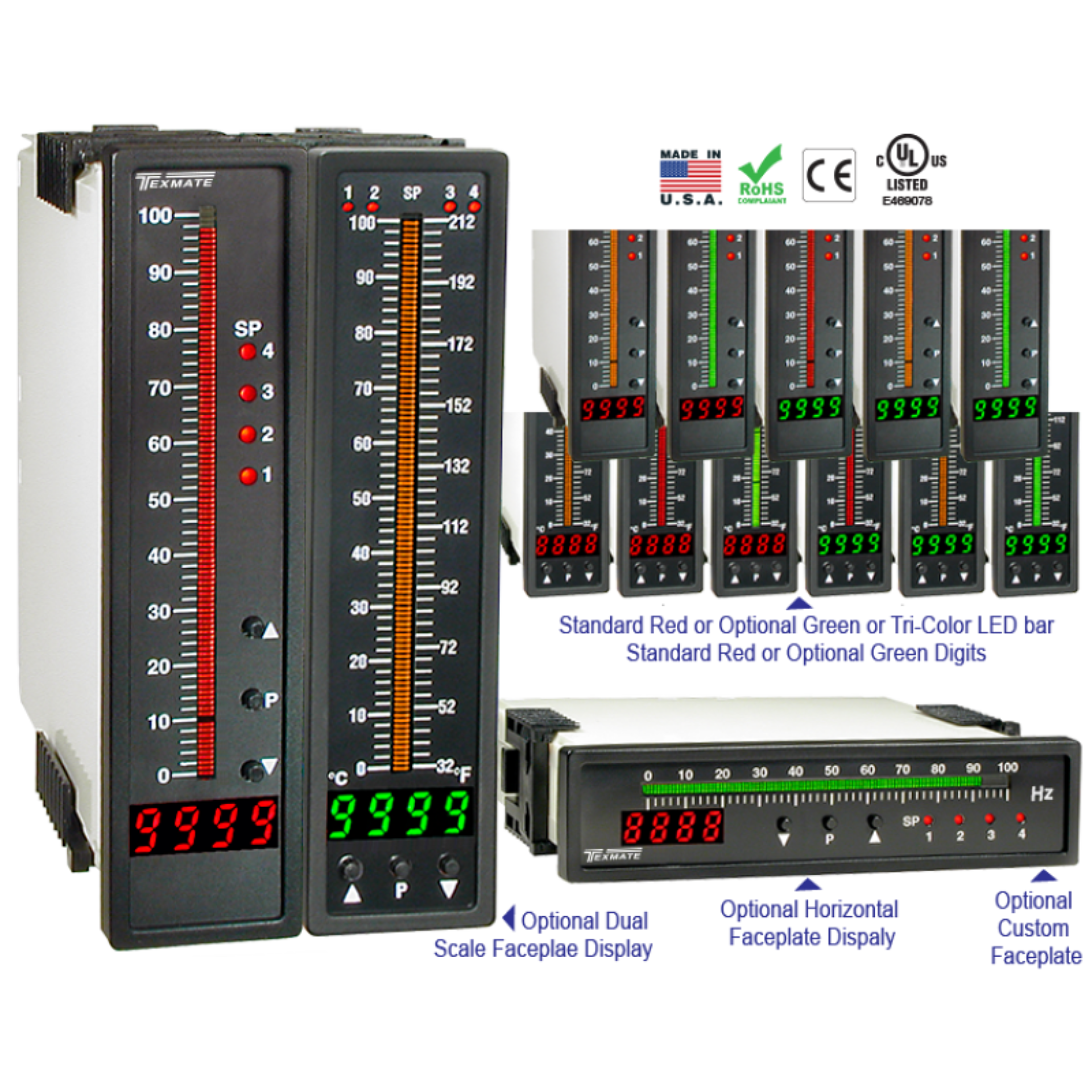

Red LED bargraph with 4-digit red DPM, vertical
