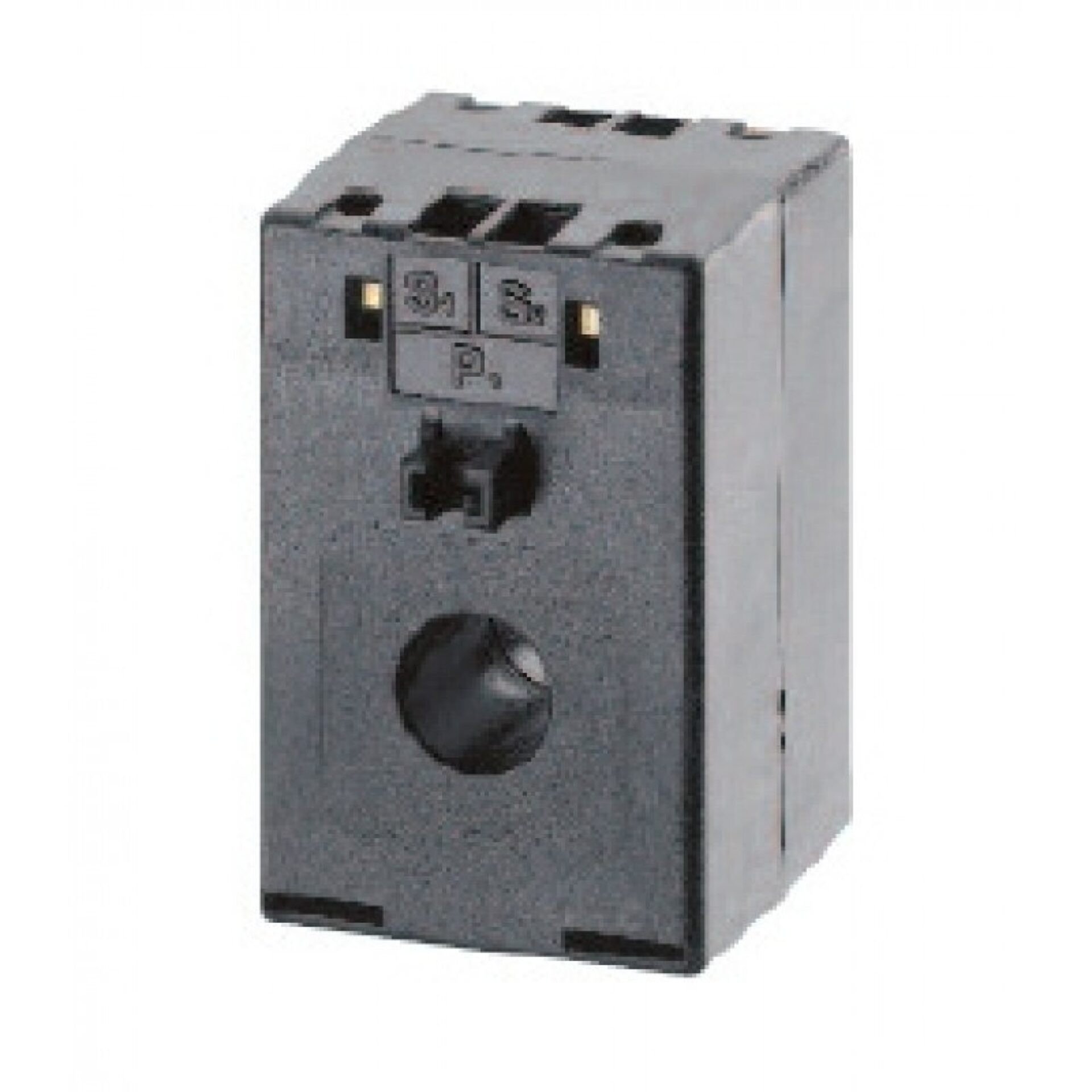

Model IE55E Current Transformer
Model IE55E Current Transformer - Transformers
APPLICATION: Metering
FREQUENCY: 50/60 Hz.
INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave
APPROXIMATE WEIGHT: 0.40 kg
CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B
ENCLOSURE CODE: IP40
INSULATION CLASS: Class E BS2757 IEC85
COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1
MOUNTING HARDWARE OPTION: Order p/n: IE55E-FIXING-KIT
Window Size:
15 x 5mm
16mm diameter
Width: 50mm
Height: 80mm
Depth: 50mm
Overview
APPLICATION: Metering
FREQUENCY: 50/60 Hz.
INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave
APPROXIMATE WEIGHT: 0.40 kg
CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B
ENCLOSURE CODE: IP40
INSULATION CLASS: Class E BS2757 IEC85
COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1
MOUNTING HARDWARE OPTION: Order p/n: IE55E-FIXING-KIT
Window Size:
15 x 5mm
16mm diameter
Width: 50mm
Height: 80mm
Depth: 50mm
Request a Quote for Model IE55E Current Transformer
Product Specifications
- Application
- Metering
- DIMENSIONS
- Model
- Window Size
- 15 x 5mm
- FREQUENCY
- 50/60 Hz
- INSULATION LEVEL
- 720 Volts. 10 kV BIL. full wave
- APPROXIMATE WEIGHT
- 0.40 kg
- INSULATION CLASS
- Class E BS2757 IEC85
