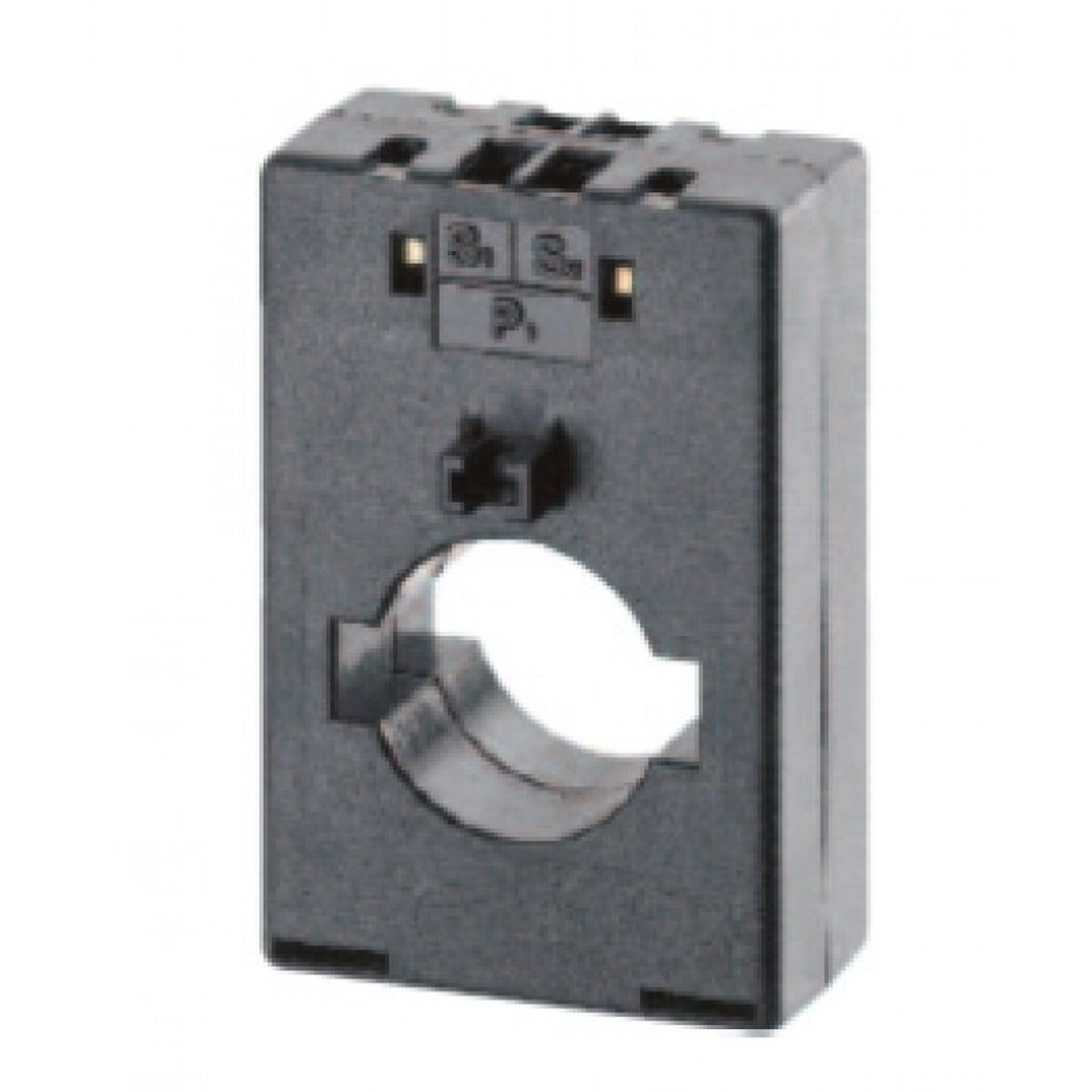

Model IE63N Current Transformer
Model IE63N Current Transformer - Transformers
APPLICATION: Metering
FREQUENCY: 50/60 Hz.
INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave
APPROXIMATE WEIGHT: 0.30 kg
CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B
ENCLOSURE CODE: IP40
INSULATION CLASS: Class E BS2757 IEC85
COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1
MOUNTING HARDWARE OPTION: Order p/n: IE63N-FIXING-KIT
Window Size:
40 x 10mm
32mm diameter
Width: 60mm
Height: 94mm
Depth: 30mm
Overview
APPLICATION: Metering
FREQUENCY: 50/60 Hz.
INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave
APPROXIMATE WEIGHT: 0.30 kg
CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B
ENCLOSURE CODE: IP40
INSULATION CLASS: Class E BS2757 IEC85
COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1
MOUNTING HARDWARE OPTION: Order p/n: IE63N-FIXING-KIT
Window Size:
40 x 10mm
32mm diameter
Width: 60mm
Height: 94mm
Depth: 30mm
Request a Quote for Model IE63N Current Transformer
Product Specifications
- Application
- Metering
- DIMENSIONS
- Model
- Window Size
- 40 x 10mm
- FREQUENCY
- 50/60 Hz
- INSULATION LEVEL
- 720 Volts. 10 kV BIL. full wave
- APPROXIMATE WEIGHT
- 0.30 kg
- INSULATION CLASS
- Class E BS2757 IEC85
