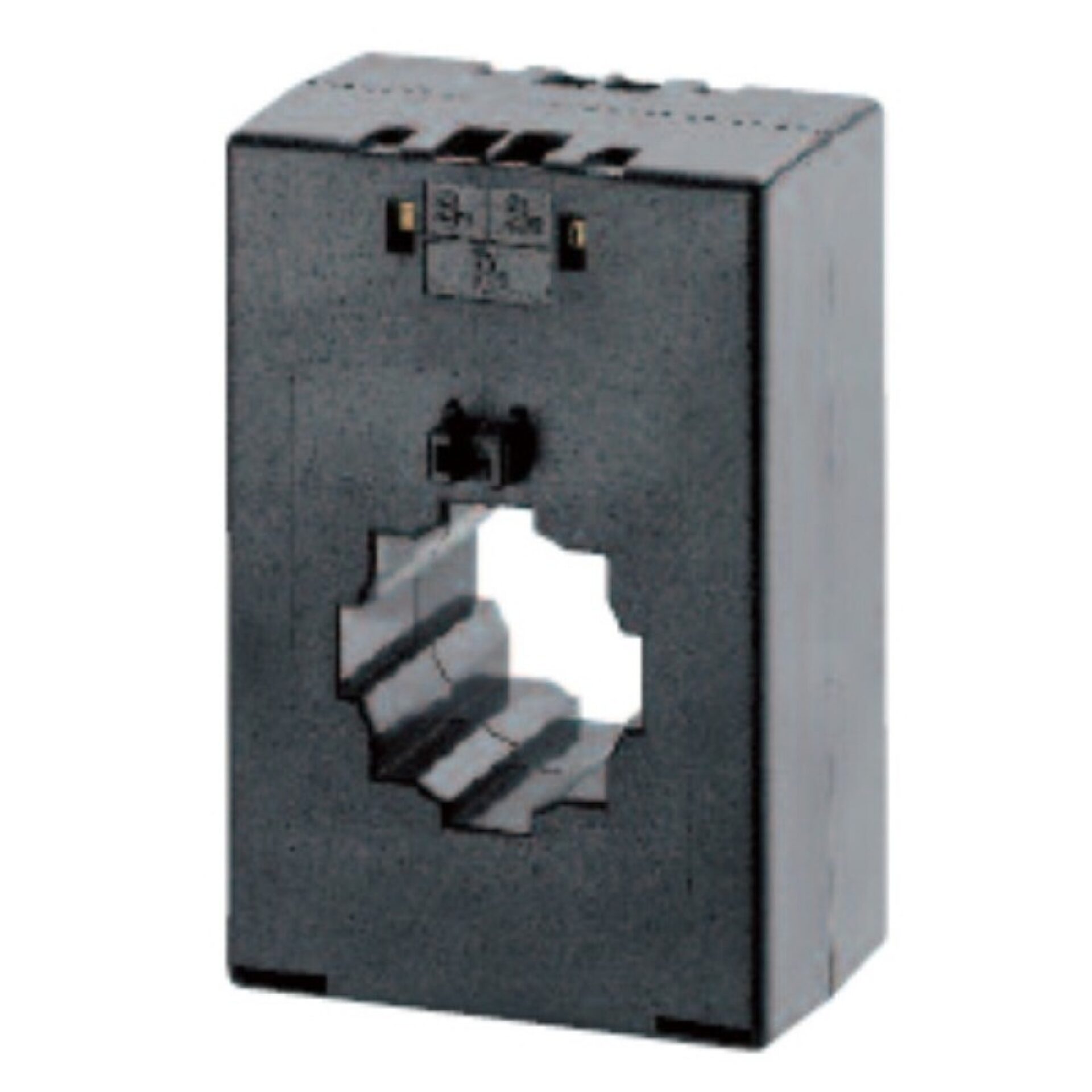

Model IEA5G Current Transformer

Model IEA5G Current Transformer

APPLICATION: Metering FREQUENCY: 50/60 Hz. INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave APPROXIMATE WEIGHT: 0.60 kg CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B ENCLOSURE CODE: IP40 INSULATION CLASS: Class E BS2757 IEC85 COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1 MOUNTING HARDWARE OPTION: Order p/n: IE93S-FIXING-KIT Window Size: 40 x 10mm 30 x 30mm 36mm diameter Width: 77mm Height: 116mm Depth: 50mm
