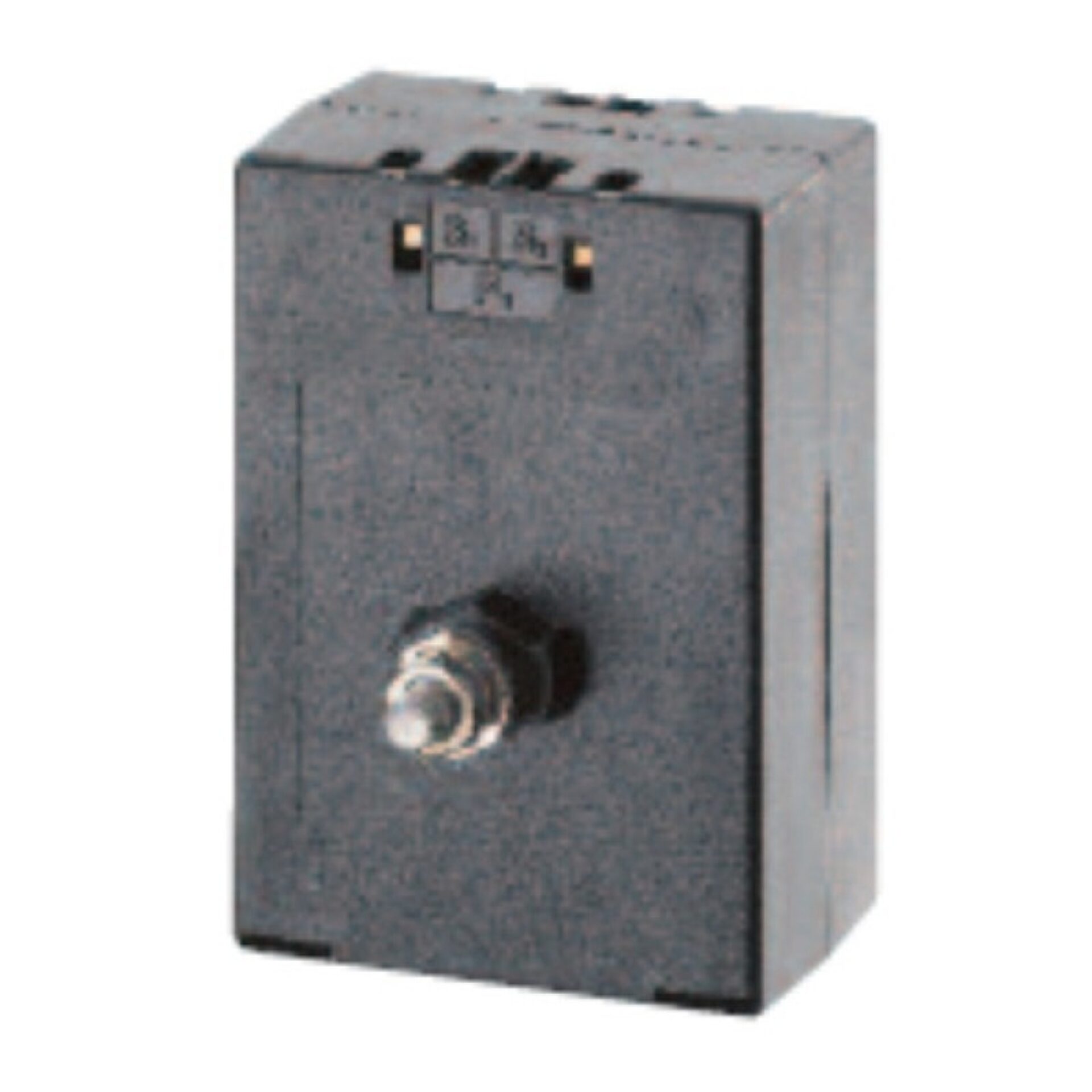

Model IEA5Y Current Transformer
APPLICATION: Metering
FREQUENCY: 50/60 Hz.
INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave
APPROXIMATE WEIGHT: 0.45 kg
CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B
ENCLOSURE CODE: IP40
INSULATION CLASS: Class E BS2757 IEC85
COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1
MOUNTING HARDWARE OPTION: Order p/n: IE93S-FIXING-KIT
Window Size:
20 x 6mm
21mm diameter
Width: 45mm
Height: 65mm
Depth: 30mm
