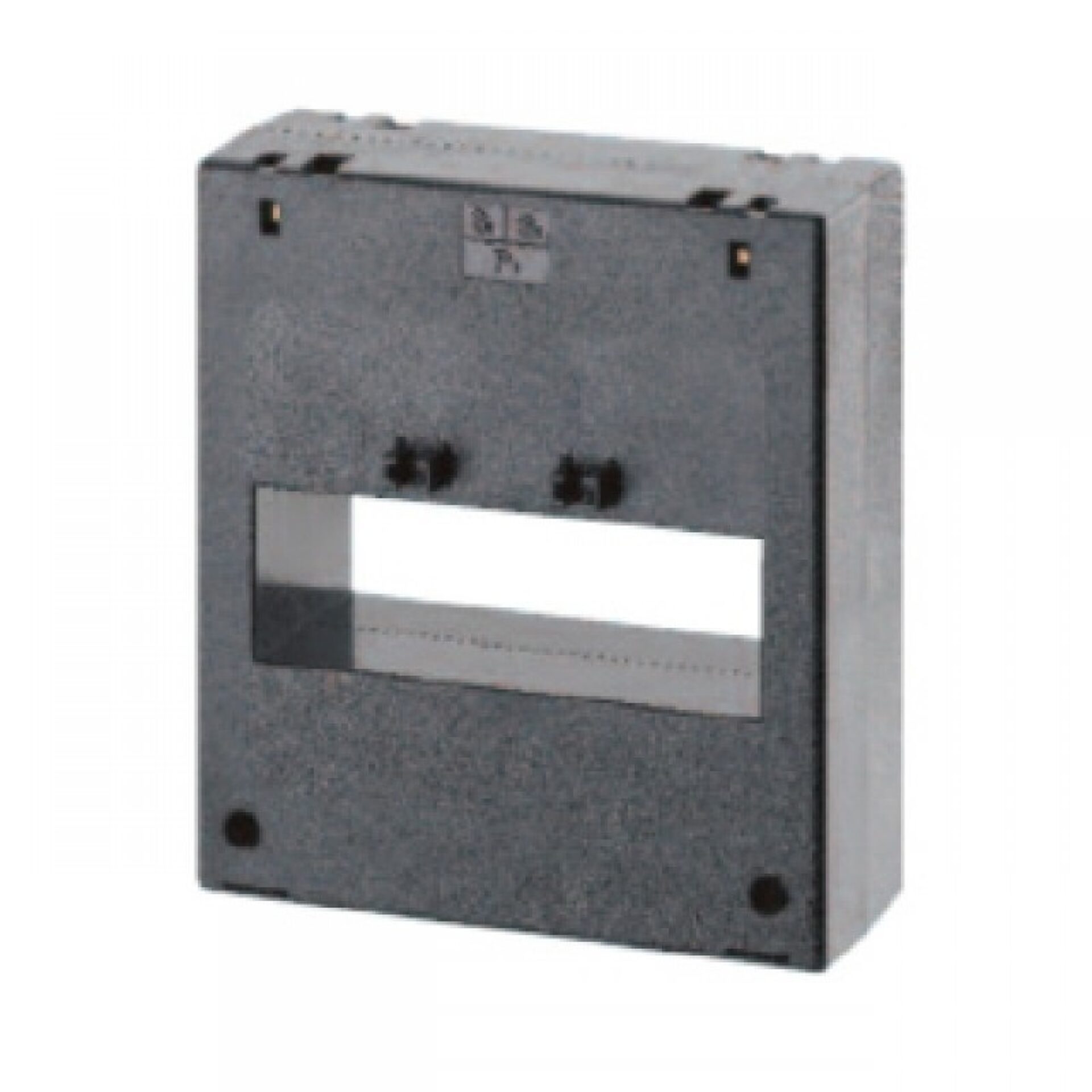

Model IEB5Z Current Transformer

APPLICATION: Metering FREQUENCY: 50/60 Hz. INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave APPROXIMATE WEIGHT: 0.70 kg CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B ENCLOSURE CODE: IP40 INSULATION CLASS: Class E BS2757 IEC85 COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1 MOUNTING HARDWARE OPTION: Order p/n: IE93S-FIXING-KIT Window Size: 80 x 30mm 60 x 30mm 50 x 50mm 63mm diameter Width: 134mm Height: 156mm Depth: 50mm
