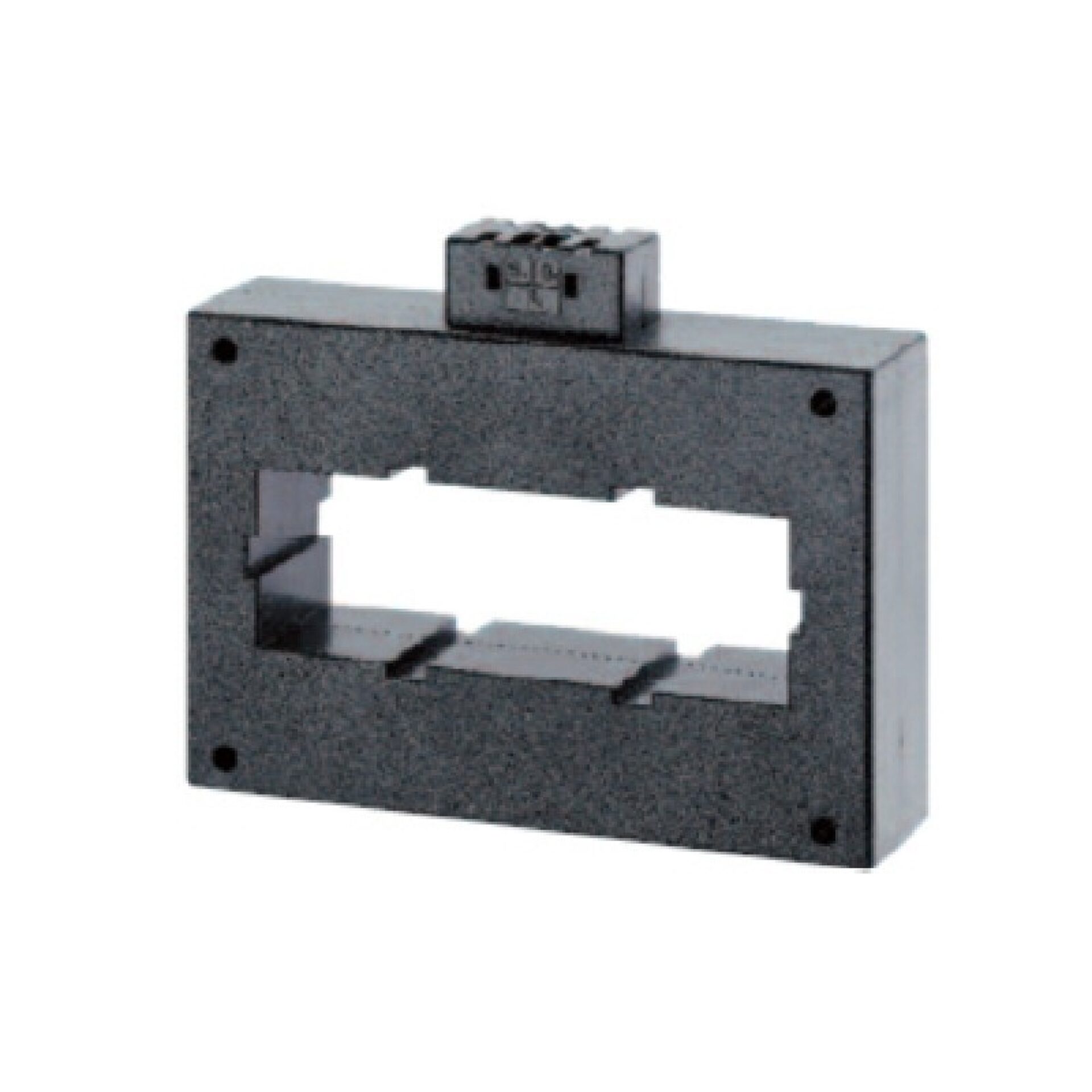

Model IED5T Current Transformer

Model IED5T Current Transformer

APPLICATION: Metering FREQUENCY: 50/60 Hz. INSULATION LEVEL: 720 Volts. 10 kV BIL. full wave APPROXIMATE WEIGHT: 1.5 kg CONNECTIONS: Secondary terminals screw clamp up to 10mm ² cable. ‘Fast on’ 6.3mm type. Integral Terminal Cover IP20B ENCLOSURE CODE: IP40 INSULATION CLASS: Class E BS2757 IEC85 COMPLIES WITH / APPROVALS: IEC60044-1:2003 / BSEN61010-1, EN60044-1 MOUNTING HARDWARE OPTION: Order p/n: IE93S-FIXING-KIT Window Size: 160 x 50mm Width: 213mm Height: 140mm Depth: 50mm
Would you like to customize this product? Contact us today to see if we can create the custom option that fits your needs.
Ph: (978) 887-2020
Fax: (978) 887-2225
