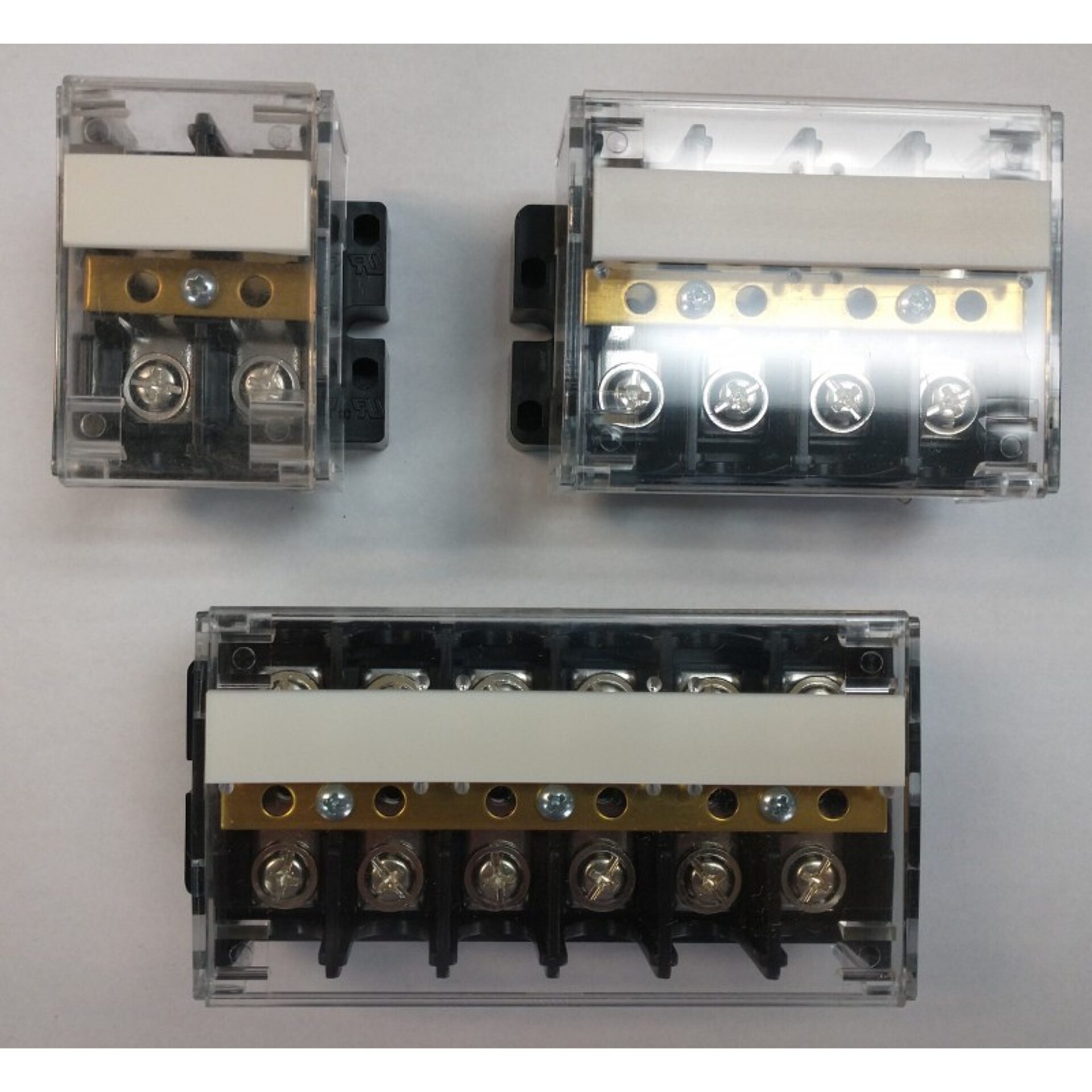

Model IKU Terminal Block
Model IKU Terminal Block - Transformers
Application:
Control and power wire termination. hort circuiting versions for meter servicing, CT tap changing, ...etc.
Features:
- Rugged chip resistant heavy duty construction
- 2,4,6,8 and 12 pole configurations
- #10-32 tin plated slotted washer head terminal screws
- U.L. recognized 105 degree C. thermoplastic body material
- 4, 6 and 8 pole shorting style available with 4 “on board” slotted head shorting screws. Covers also available.
- Surface mounting flat base for direct one piece terminal block replacement
- Marking strip provided ( on the cover for shorting style blocks; on the base for non-shorting style )
- Optional clear bi-directional hinged plastic cover
- Wide brass terminals allow lugs up to 1/2” in width
- Wire size - copper 18-10 AWG.
- UL and CUL recognized (E241554)
Ratings
Voltage:
- 600 VAC Non-Shorting Style
- 300 VAC Shorting Style
Current:
- 50 Amp w/Crimp Type Lug
- 30 Amp w/Bare Wire
Available as IKU2, IKU4, IKU6, IKU8 and IKU12
Overview
Application:
Control and power wire termination. hort circuiting versions for meter servicing, CT tap changing, ...etc.
Features:
- Rugged chip resistant heavy duty construction
- 2,4,6,8 and 12 pole configurations
- #10-32 tin plated slotted washer head terminal screws
- U.L. recognized 105 degree C. thermoplastic body material
- 4, 6 and 8 pole shorting style available with 4 “on board” slotted head shorting screws. Covers also available.
- Surface mounting flat base for direct one piece terminal block replacement
- Marking strip provided ( on the cover for shorting style blocks; on the base for non-shorting style )
- Optional clear bi-directional hinged plastic cover
- Wide brass terminals allow lugs up to 1/2” in width
- Wire size - copper 18-10 AWG.
- UL and CUL recognized (E241554)
Ratings
Voltage:
- 600 VAC Non-Shorting Style
- 300 VAC Shorting Style
Current:
- 50 Amp w/Crimp Type Lug
- 30 Amp w/Bare Wire
Available as IKU2, IKU4, IKU6, IKU8 and IKU12
Request a Quote for Model IKU Terminal Block
Product Specifications
- Mounting
- Surface mount
- Standards
- UL, cUL
- Voltage Rating
- 600 VAC (Non-Shorting Style), 300 VAC (Shorting Style)
- Current Rating
- 50 A with crimp type lug, 30 A with bare wire
- Wire Size
- Copper 18-10 AWG
- Body Material
- UL recognized 105 degree C thermoplastic
- Terminal Screws
- #10-32 tin plated slotted washer head terminal screws
- Terminal Lug Width
- Wide brass terminals allow lugs up to 1/2 inch in width
- Pole Configurations
- 2, 4, 6, 8 and 12 pole configurations
- UL File Number
- E241554
Maximum 1000 characters
Specification Table
| Number of Poles | Mounting Dimension L (in) | Mounting Dimension D Min (in) | Mounting Dimension D Max (in) | Non-Shorting Catalog Number Without Covers | Non-Shorting Catalog Number With Covers | Shorting Catalog Number Without Covers | Shorting Catalog Number With Covers | Cover Kit Catalog Number | Jumper Catalog Number |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.00 | 1.61 | 1.75 | IKU2 | IKU2C | IKU2S | IKU2SC | IKUC2 | IKUJ2 |
| 4 | 3.25 | 2.88 | 3.00 | IKU4 | IKU4C | IKU4S | IKU4SC | IKUC4 | IKUJ4 |
| 6 | 4.50 | 4.12 | 4.25 | IKU6 | IKU6C | IKU6S | IKU6SC | IKUC6 | IKUJ6 |
| 8 | 5.75 | 5.38 | 5.50 | IKU8 | IKU8C | IKU8S | IKU8SC | IKUC8 | IKUJ8 |
| 12 | 8.25 | 7.88 | 8.00 | IKU12 | IKU12C | N/A | N/A | IKUC12 | IKUJ12 |
